| SPECIFICATIONS | |
| Brand | Gigabyte |
| Series | Gaming Motherboards |
| Model | B850 A ELITE WF7 ICE (B850-AORUS-ELITE-WIFI7-ICE) |
| CPU | AMD Socket AM5 |
| AMD Ryzen 9000 Series Processors | |
| AMD Ryzen 8000 Series Processors | |
| AMD Ryzen 7000 Series Processors | |
| Chipset | AMD B850 |
| Memory | DDR5 8200(O.C), 8000(O.C), 7950(O.C), 7900(O.C), 7800(O.C), 7600(O.C), 7400(O.C), 7200(O.C), 7000(O.C), 6800(O.C), 6600(O.C), 6400(O.C), 6200(O.C), 6000(O.C), 5800(O.C), 5600(O.C), 5200, 4800, 4400 MT/s |
| 4 x DDR5 DIMM sockets | |
| Up to 256 GB system memory | |
| Dual channel memory architecture | |
| Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules | |
| Support for AMD EXtended Profiles for Overclocking (AMD EXPO) | |
| Support for Extreme Memory Profile (XMP) memory modules | |
| The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules. Please refer to "Memory Support List" on GIGABYTE's website for more information. | |
| Onboard Graphics | Integrated Graphics Processor with AMD Radeon Graphics |
| 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz | |
| Supports DisplayPort 1.4 version and HDR. | |
| 1 x Front HDMI port, supporting a maximum resolution of 1920x1080@30 Hz | |
| Supports HDMI 1.4 version. | |
| Graphics specifications may vary depending on CPU support. | |
| Audio | Realtek Audio CODEC |
| High Definition Audio | |
| 2/4/5.1/7.1-channel | |
| You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. | |
| Support for S/PDIF Out | |
| LAN | Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
| Wireless Communication | Realtek Wi-Fi 7 RTL8922AE |
| 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands | |
| BLUETOOTH 5.4 | |
| Support for 11be 160MHz wireless standard | |
| Wi-Fi 7 features require Windows 11 SV3 to function properly (no driver support for Windows 10). | |
| Wi-Fi 7 channels on the 6 GHz band availability depends on individual country's regulations. | |
| Expansion Slots | 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU |
| AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x16 mode | |
| AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode | |
| AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode | |
| The PCIEX16 slot can only support a graphics card or an NVMe SSD. | |
| If only one graphics card is to be installed, install it in the PCIEX16 slot. | |
| Chipset: | |
| 2 x PCI Express x16 slots, supporting PCIe 4.0 and running at x1 (PCIEX1_1, PCIEX1_2) | |
| Storage Interface | 1 x M.2 connector (M2A_CPU), integrated in the CPU |
| Supports Socket 3, M key, type 25110/22110/2580/2280 SSDs | |
| AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs | |
| AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs | |
| AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs | |
| 1 x M.2 connector (M2B_CPU), integrated in the CPU | |
| Supports Socket 3, M key, type 25110/22110/2580/2280 SSDs | |
| AMD Ryzen 9000/7000 Series Processors support PCIe 4.0 x4/x2 SSDs | |
| AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs | |
| AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x2 SSDs | |
| Storage Interface | 1 x M.2 connector (M2C_SB), integrated in the Chipset |
| Supports Socket 3, M key, type 25110/22110/2580/2280 PCIe 4.0 x4/x2 SSDs | |
| 4 x SATA 6Gb/s connectors | |
| RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices | |
| RAID 5 is only available on AMD Ryzen 9000 Series Processors. | |
| RAID 0, RAID 1, and RAID 10 support for SATA storage devices | |
| USB | CPU: |
| 1 x USB Type-C port on the back panel, with USB 3.2 Gen 2 support | |
| 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel | |
| CPU USB 2.0 Hub: | |
| 4 x USB 2.0/1.1 ports on the back panel | |
| Chipset: | |
| 1 x USB Type-C port with USB 3.2 Gen 2x2 support, available through the internal USB header | |
| 3 x USB 3.2 Gen 1 ports (1 port on the back panel, 2 ports available through the internal USB header) | |
| 4 x USB 2.0/1.1 ports available through the internal USB headers | |
| Chipset USB 3.2 Gen 1 Hub: | |
| 4 x USB 3.2 Gen 1 ports on the back panel | |
| Internal I/O Connectors | 1 x 24-pin ATX main power connector |
| 1 x 8-pin ATX 12V power connector | |
| 1 x 4-pin ATX 12V power connector | |
| 1 x CPU fan header | |
| 1 x CPU fan/water cooling pump header | |
| 3 x system fan headers | |
| 1 x system fan/water cooling pump header | |
| 3 x addressable RGB Gen2 LED strip headers | |
| 1 x RGB LED strip header | |
| 3 x M.2 Socket 3 connectors | |
| 4 x SATA 6Gb/s connectors | |
| 1 x front panel header | |
| 1 x front panel audio header | |
| 1 x USB Type-C header, with USB 3.2 Gen 2x2 support | |
| 1 x USB 3.2 Gen 1 header | |
| 2 x USB 2.0/1.1 headers | |
| 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) | |
| 1 x HDMI port (Actual support may vary by CPU.) | |
| 1 x power button | |
| 1 x reset button | |
| 1 x reset jumper | |
| 1 x Clear CMOS jumper | |

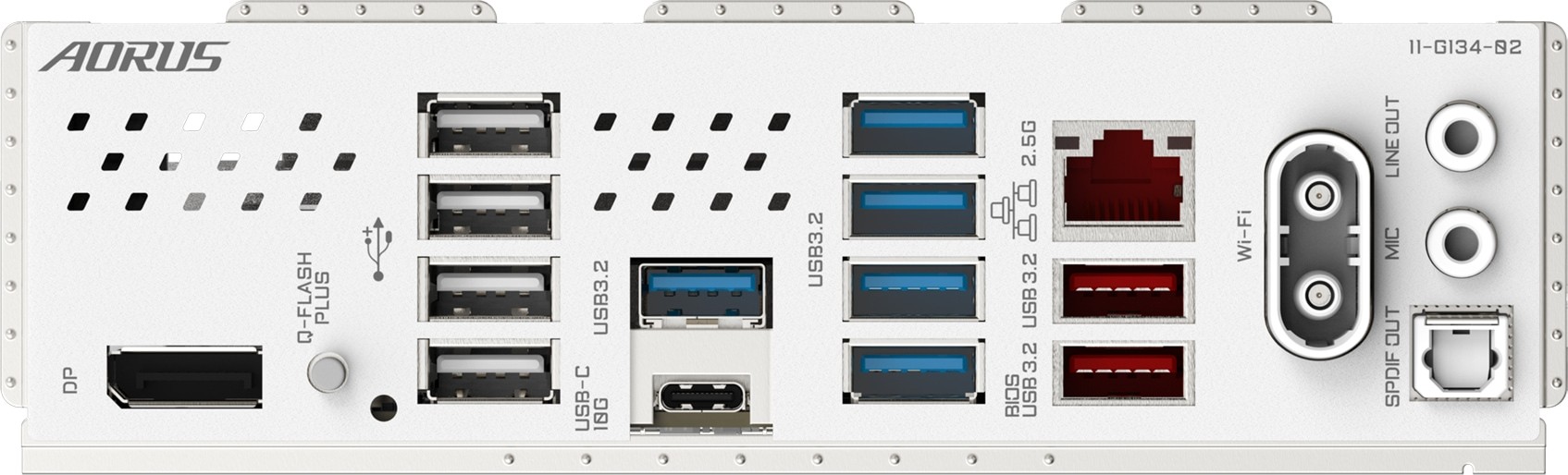

| Back Panel Connectors | 1 x DisplayPort (Actual support may vary by CPU.) |
| 1 x Q-Flash Plus button | |
| 4 x USB 2.0/1.1 ports | |
| 1 x USB Type-C port, with USB 3.2 Gen 2 support | |
| 5 x USB 3.2 Gen 1 ports | |
| 2 x USB 3.2 Gen 2 Type-A ports (red) | |
| 1 x RJ-45 port | |
| 2 x antenna connectors (2T2R) | |
| 2 x audio jacks | |
| 1 x optical S/PDIF Out connector | |
| I/O Controller | iTE I/O Controller Chip |
| H/W Monitoring | Voltage detection |
| Temperature detection | |
| Fan speed detection | |
| Water cooling flow rate detection | |
| Fan fail warning | |
| Fan speed control | |
| Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install. | |
| BIOS | 1 x 256 Mbit flash |
| Use of licensed AMI UEFI BIOS | |
| PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 | |
| Unique Features | Support for GIGABYTE Control Center (GCC) |
| Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. | |
| Support for Q-Flash | |
| Support for Q-Flash Plus | |
| Support for Smart Backup | |
| Bundled Software | Norton Internet Security (OEM version) |
| LAN bandwidth management software | |
| Operating System | Support for Windows 11 64-bit |
| Form Factor | ATX Form Factor, 30.5cm x 24.4cm |
| Warranty Information | |
| Warranty | 3 Year Warranty |
| Manufacturer's Site | Visit the manufacturer's website |
|---|---|
| Product Link | Visit the manufacturer's page for this product |
-
Gigabyte B850 AORUS ELITE WIFI7 ICE AMD - Mpho, 20 August 2025
I recently picked up the AORUS B850 Elite Ice motherboard from Wootware, and I couldn’t be happier with the purchase. From the moment I unboxed it, I knew this board was something special.
Paired with my Ryzen 5 7600X and RX 6950 XT, this board delivers smooth, stable performance. DDR5 support, PCIe 5.0, and robust VRMs make it future-ready and ideal for gaming or productivity. BIOS is intuitive and easy to navigate, even for first-time tweakers.
Gigabyte nailed it with this one. If you’re building a white-themed rig or just want a reliable, feature-rich AM5 board, the B850 Elite Ice is a winner. Big shoutout to Wootware for the smooth service and fast delivery. -
Excellent MOBO - Thabang Vincent, 23 June 2025
I would've given it a 5 star if the 3.1 usb port was facing vertically i know it sounds silly to complain about but yea other than that there's literally no incentive to get an x870 unless your pockets big or just into overclocking bios is so easy to use even in advanced mode
-
Gigabyte B850 AORUS ELITE WIFI7 ICE MB - Jennino, 2 June 2025
The B850 AORUS ELITE ICE came with a decent set of accessories. The WiFi antenna is a screwless plug-in with a magnetic base. You also get two SATA cables, some M.2 heatshield pads and a front panel case header G connector, an AORUS sticker, and documentation.
This motherboard is affordable for a white-themed board. The blend of white and metallic highlights looks really awesome. It comes with three ARGB headers and an RGB strip header. There's just one small integrated RGB section, which is located underneath the chipset heatsink, next to the BIOS battery. Alongside the standard case connector headers, it includes a good set of internal headers and buttons. You get six 4-pin fan headers and a decent USB complement consisting of up to four USB 2.0 ports, two 5Gbps ports, and a Type-C 20Gbps port, Power and reset buttons and a single HDMI port, which can be used for an internal monitor. The board's four DIMM slots support speeds of up to DDR5-8200+, with up to 256GB supported. However, 32GB or 64GB of RAM, DDR5-6000 to 6400 remains the sweet spot for AMD CPU's. It includes three M.2 slots, one of which supports PCIe 5.0. The other two run at PCIe 4.0 speeds. A single plate cools all three. Four SATA ports allow for a maximum capacity of seven drives. There are three PCIe expansion slots. The topmost one supports PCIe 5.0 x16 devices, while the other two x16 slots are limited to PCIe 3.0 speeds and run at just x1. The primary PCIe slot includes GIGABYTE's EZ-Latch quick-release mechanism, which is a great feature when removing the gpu if installed. The VRM Heatsinks is more than adequate and provides sufficient cooling. The rear I/O panel is well-equipped. There are twelve USB ports: a single 10Gbps Type-C port, two 10Gbps Type-A ports, five 5Gbps ports, and four USB 2.0 ports. There is a single 2.5G LAN port, Wifi 7 Antenna Port operating at 160MHz. Next are the audio ports, which consist of 3.5mm line-in and line-out ports and S/PDIF. There's also a single DisplayPort and a BIOS flashback button with the ability to update the bios.
I had a slightly bad build experience, reason for this was my Ryzen 9600x CPU I ordered initially was bad and had to be replaced and because I wasn sure what component had an issue as I had no spare components to test, I had to return the motherboard, ram and CPU, but I got amazing support from Wootware Staff with the RMA process. I have the motherboard paired with a Ryzen 9600x CPU, 32Mb of ADATA XPG Lancer DDR5 Ram running at 6000MHz using AMD Expo, 1Tb Seagate Firecuda 530 NVME PCIx 4.0 SSD, White Arctic LF3 360mm AIO in a White ANTEC C8 Aluminium Chassis with an Asus GeForce 1660Ti, 1200 watt Coolermaster Silent Pro PSU and some Corsair QL120mm iCue Fans and I have no issues whatsoever. Awesome board and Support, thanks Wootware. -
Gigabyte B850 AORUS ELITE WIFI7 ICE MB - Jennino, 2 June 2025
The B850 AORUS ELITE ICE came with a decent set of accessories. The WiFi antenna is a screwless plug-in with a magnetic base. You also get two SATA cables, some M.2 heatshield pads and a front panel case header G connector, an AORUS sticker, and documentation.
This motherboard is affordable for a white-themed board. The blend of white and metallic highlights looks really awesome. It comes with three ARGB headers and an RGB strip header. There's just one small integrated RGB section, which is located underneath the chipset heatsink, next to the BIOS battery. Alongside the standard case connector headers, it includes a good set of internal headers and buttons. You get six 4-pin fan headers and a decent USB complement consisting of up to four USB 2.0 ports, two 5Gbps ports, and a Type-C 20Gbps port, Power and reset buttons and a single HDMI port, which can be used for an internal monitor. The board's four DIMM slots support speeds of up to DDR5-8200+, with up to 256GB supported. However, 32GB or 64GB of RAM, DDR5-6000 to 6400 remains the sweet spot for AMD CPU's. It includes three M.2 slots, one of which supports PCIe 5.0. The other two run at PCIe 4.0 speeds. A single plate cools all three. Four SATA ports allow for a maximum capacity of seven drives. There are three PCIe expansion slots. The topmost one supports PCIe 5.0 x16 devices, while the other two x16 slots are limited to PCIe 3.0 speeds and run at just x1. The primary PCIe slot includes GIGABYTE's EZ-Latch quick-release mechanism, which is a great feature when removing the gpu if installed. The VRM Heatsinks is more than adequate and provides sufficient cooling. The rear I/O panel is well-equipped. There are twelve USB ports: a single 10Gbps Type-C port, two 10Gbps Type-A ports, five 5Gbps ports, and four USB 2.0 ports. There is a single 2.5G LAN port, Wifi 7 Antenna Port operating at 160MHz. Next are the audio ports, which consist of 3.5mm line-in and line-out ports and S/PDIF. There's also a single DisplayPort and a BIOS flashback button with the ability to update the bios.
I had a slightly bad build experience, reason for this was my Ryzen 9600x CPU I ordered initially was bad and had to be replaced and because I wasn sure what component had an issue as I had no spare components to test, I had to return the motherboard, ram and CPU, but I got amazing support from Wootware Staff with the RMA process. I have the motherboard paired with a Ryzen 9600x CPU, 32Mb of ADATA XPG Lancer DDR5 Ram running at 6000MHz using AMD Expo, 1Tb Seagate Firecuda 530 NVME PCIx 4.0 SSD, White Arctic LF3 360mm AIO in a White ANTEC C8 Aluminium Chassis with an Asus GeForce 1660Ti, 1200 watt Coolermaster Silent Pro PSU and some Corsair QL120mm iCue Fans and I have no issues whatsoever. Awesome board and Support, thanks Wootware.
