Gigabyte B850 AORUS ELITE WIFI7 AMD B850 Ryzen Socket AM5 ATX Desktop Motherboard

More Views

Please note:
Images are for illustrative purposes only.

Gigabyte B850 AORUS ELITE WIFI7 AMD B850 Ryzen Socket AM5 ATX Desktop Motherboard

Product ID: 49405

In stock with Wootware

Lead time before dispatch; 1 - 2 business days

4.4

5 Review(s) | Add Your Review

- ATX Form Factor
- AMD B850 Chipset
- AMD Socket AM5
- 4x DDR5 DIMM Slots, Supports Up to 256GB
- Supports DDR5 Up To 8200MHz (O.C)
- 1x PCIe 5.0 x16
- 2x PCIe 4.0 x16 (x1 Mode)
- 3x PCIe M.2 Slots, 4x SATA 3 6Gb/s Ports
- 1 x Q-Flash Plus button
- 1x DisplayPort, 2x antenna connectors (2T2R)
- 1x USB 3.2 Gen2 Type-C Port
- 5x USB 3.2 Gen 1 Type-A Ports, 4x USB 2.0 Type-A Ports, 2x USB 3.2 Gen1 Type-A Ports
- 1x RJ-45 port, 1x Optical S/PDIF Out Connector, 2x Audio Jacks
- Twin Digital 14+2+2 Phase VRM Design
- AMD EXPO Memory Module Support
- X3D Turbo Mode
- Advanced Full-Metal Thermal Design
- Realtek 2.5GbE LAN Chip
- Realtek Wi-Fi 7 RTL8922AE Tri-Band Wi-Fi 7 (PCB rev. 1.0)
- Bluetooth v5.4
- Realtek Audio Codec
- Gigabyte Ultra-Durable Design
- 3 Year Warranty

157 Products

Please note: pricing visible is already subject to a 2% discount applicable only to EFT payments.

R5,999.00

R4,999.00

Save: R 1,000!

Qty:

Add to Wishlist

Product Description
Additional Information
Reviews (5)
Questions (0)

Product Description

SPECIFICATIONS
Brand	Gigabyte
Series	Gaming Motherboards
Model	B850 A ELITE WF7 (GA-B850-A-ELITE-WF7)
CPU	AMD Socket AM5
	AMD Ryzen 9000 Series Processors
	AMD Ryzen 8000 Series Processors
	AMD Ryzen 7000 Series Processors
Chipset	AMD B850
Memory	DDR5 8200(O.C), 8000(O.C), 7950(O.C), 7900(O.C), 7800(O.C), 7600(O.C), 7400(O.C), 7200(O.C), 7000(O.C), 6800(O.C), 6600(O.C), 6400(O.C), 6200(O.C), 6000(O.C), 5800(O.C), 5600(O.C), 5200, 4800, 4400 MT/s
	4 x DDR5 DIMM sockets
	Up to 256 GB system memory
	Dual channel memory architecture
	Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
	Support for AMD EXtended Profiles for Overclocking (AMD EXPO)
	Support for Extreme Memory Profile (XMP) memory modules
	The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules. Please refer to "Memory Support List" on GIGABYTE's website for more information.
Onboard Graphics	Integrated Graphics Processor with AMD Radeon Graphics
	1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz
	Supports DisplayPort 1.4 version and HDR.
	1 x Front HDMI port, supporting a maximum resolution of 1920x1080@30 Hz
	Supports HDMI 1.4 version.
	Graphics specifications may vary depending on CPU support.
Audio	Realtek Audio CODEC
	High Definition Audio
	2/4/5.1/7.1-channel
	You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
	Support for S/PDIF Out
LAN	Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Wireless Communication	Realtek Wi-Fi 7 RTL8922AE
	802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands
	BLUETOOTH 5.4
	Support for 11be 160MHz wireless standard
	Wi-Fi 7 features require Windows 11 SV3 to function properly (no driver support for Windows 10).
	Wi-Fi 7 channels on the 6 GHz band availability depends on individual country's regulations.
Expansion Slots	1 x PCI Express x16 slot (PCIEX16), integrated in the CPU
	AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x16 mode
	AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode
	AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode
	The PCIEX16 slot can only support a graphics card or an NVMe SSD.
	If only one graphics card is to be installed, install it in the PCIEX16 slot.
	Chipset:
	2 x PCI Express x16 slots, supporting PCIe 4.0 and running at x1 (PCIEX1_1, PCIEX1_2)
Storage Interface	1 x M.2 connector (M2A_CPU), integrated in the CPU
	Supports Socket 3, M key, type 25110/22110/2580/2280 SSDs
	AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs
	AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
	AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs
	1 x M.2 connector (M2B_CPU), integrated in the CPU
	Supports Socket 3, M key, type 25110/22110/2580/2280 SSDs
	AMD Ryzen 9000/7000 Series Processors support PCIe 4.0 x4/x2 SSDs
	AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
	AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x2 SSDs
Storage Interface	1 x M.2 connector (M2C_SB), integrated in the Chipset
	Supports Socket 3, M key, type 25110/22110/2580/2280 PCIe 4.0 x4/x2 SSDs
	4 x SATA 6Gb/s connectors
	RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices
	RAID 5 is only available on AMD Ryzen 9000 Series Processors.
	RAID 0, RAID 1, and RAID 10 support for SATA storage devices
USB	CPU:
	1 x USB Type-C port on the back panel, with USB 3.2 Gen 2 support
	2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
	CPU USB 2.0 Hub:
	4 x USB 2.0/1.1 ports on the back panel
	Chipset:
	1 x USB Type-C port with USB 3.2 Gen 2x2 support, available through the internal USB header
	3 x USB 3.2 Gen 1 ports (1 port on the back panel, 2 ports available through the internal USB header)
	4 x USB 2.0/1.1 ports available through the internal USB headers
	Chipset USB 3.2 Gen 1 Hub:
	4 x USB 3.2 Gen 1 ports on the back panel
Internal I/O Connectors	1 x 24-pin ATX main power connector
	1 x 8-pin ATX 12V power connector
	1 x 4-pin ATX 12V power connector
	1 x CPU fan header
	1 x CPU fan/water cooling pump header
	3 x system fan headers
	1 x system fan/water cooling pump header
	3 x addressable RGB Gen2 LED strip headers
	1 x RGB LED strip header
	3 x M.2 Socket 3 connectors
	4 x SATA 6Gb/s connectors
	1 x front panel header
	1 x front panel audio header
	1 x USB Type-C header, with USB 3.2 Gen 2x2 support
	1 x USB 3.2 Gen 1 header
	2 x USB 2.0/1.1 headers
	1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
	1 x HDMI port (Actual support may vary by CPU.)
	1 x power button
	1 x reset button
	1 x reset jumper
	1 x Clear CMOS jumper

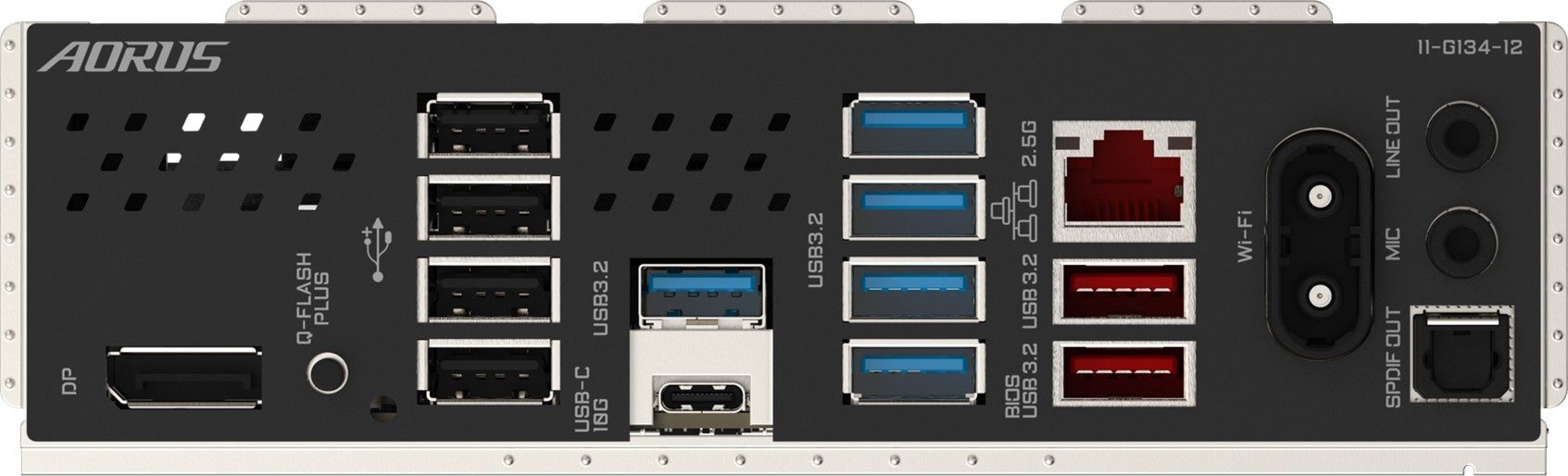

Back Panel Connectors	1 x DisplayPort (Actual support may vary by CPU.)
	1 x Q-Flash Plus button
	4 x USB 2.0/1.1 ports
	1 x USB Type-C port, with USB 3.2 Gen 2 support
	5 x USB 3.2 Gen 1 ports
	2 x USB 3.2 Gen 2 Type-A ports (red)
	1 x RJ-45 port
	2 x antenna connectors (2T2R)
	2 x audio jacks
	1 x optical S/PDIF Out connector
I/O Controller	iTE I/O Controller Chip
H/W Monitoring	Voltage detection
	Temperature detection
	Fan speed detection
	Water cooling flow rate detection
	Fan fail warning
	Fan speed control
	Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.
BIOS	1 x 256 Mbit flash
	Use of licensed AMI UEFI BIOS
	PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features	Support for GIGABYTE Control Center (GCC)
	Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
	Support for Q-Flash
	Support for Q-Flash Plus
	Support for Smart Backup
Bundled Software	Norton Internet Security (OEM version)
Bundled Software	LAN bandwidth management software
Operating System	Support for Windows 11 64-bit
Form Factor	ATX Form Factor, 30.5cm x 24.4cm
Warranty Information
Warranty	3 Year Warranty

Manufacturer's Site	Visit the manufacturer's website
Product Link	Visit the manufacturer's page for this product

Additional Information Reviews (5)

Great features at a great pricepoint - Kyle , 30 December 2025

The VRMs along with its cooling on this board is really well done. Easy bios for easy undervolting and xmp/expo profiles. Pairs well with the 9800X3D cpu

Great mobo - Wouter, 3 November 2025

Quality build and looks good. Very good for the price

Great Value - Johan, 15 September 2025

Very happy with the purchase, it is easy to install and to update the drivers with the Gigabyte app.
All components fit easily on the motherboard.
Great features like the release button for the GPU.
Only issue at the moment was to add a SSD you need to remove the GPU, to get access to the heatsink plate as there is not enough space between the two.

Lacking features for the price - Jason, 20 August 2025

Great Quality and looking motherboard. Would have expected for the price of the motherboard it would have a lot more features such as debug q display. Cheaper boards are even worse just the current situation we are in.

Good all round board - Pierre, 13 January 2025

I got this together with a Ryzen 9700X and two XPG 32GB DDR5-6000 DIMMs. Everything worked without a hitch. All I had to do was select the EXPO profile for the RAM in the BIOS. My Delphi compiler build times are down by a third compared to my old Ryzen 5600X system, so I am very happy.

It has a convenient GPU release button, and NVMe installation is toolless. The large heatsink also covers all three NVMe drives, so I don't expect any heat issues there.

Some additional things to note:
1) The bottom two PCIe slots are indeed PCIe 4.0, not 3.0 as Gigabyte's website currently states.
2) It works with Windows 10, although a driver for the wi-fi is not installed automatically and there is no Windows 10 wi-fi driver on the Gigabyte support website (only Windows 11). There may be a Windows 10 driver directly from Realtek, but I did not bother to go looking since I use wired LAN exclusively.
3) It only has a Displayport video output on the backplane (no HDMI), so if you want to use the iGPU with a TV then you're out of luck.
