MSI B840 GAMING PLUS WIFI AMD B840 Ryzen Socket AM5 ATX Desktop Motherboard

More Views

Please note:
Images are for illustrative purposes only.

MSI B840 GAMING PLUS WIFI AMD B840 Ryzen Socket AM5 ATX Desktop Motherboard

Product ID: 49906

In stock with Supplier

Lead time before dispatch; 2 - 5 business days

Be the first to review this product

- ATX Form Factor
- AMD B840 Chipset
- Socket AM5 Supports Ryzen 7000, 8000, 9000 Series Processors
- 4x DDR5 DIMM Slots, Supports Up to 256GB (4x64GB)
- Supports Up to DDR5-8000 (OC)
- Supports DDR5 CUDIMM Memory
- Supports AMD EXPO & Intel XMP 3.0 Modules
- 1x PCIe 4.0 x16 Slot (x16 Physical)
- 1x PCIe 3.0 x4 Slot (x16 Physical)
- 3x PCIe 3.0 x1 Slots (x16 Physical)
- 1x M.2 2280 PCIe 4.0 x4 NVMe SSD Slot
- 1x M.2 22110/2280 PCIe 4.0 x4 NVMe SSD Slot
- 4x SATA 3.0 Ports
- Supports Front-Panel USB 5Gbps Type-C Port
- 1x USB 10Gbps Type-C Port
- 1x USB 10Gbps Type-A Port
- 2x USB 5Gbps Type-A Port
- 4x USB 2.0 Type-A Ports
- 1x HDMI 2.1 Port (TMDS)
- 2x 3.5mm Audio Jacks (Headphone, Microphone)
- 2x SMA Connectors
- Realtek 2.5 Gigabit Ethernet RJ-45 LAN Port
- WiFi 7 Tri-Band Adapter, Bluetooth 5.4
- Realtek ALC897 High-Definition Audio Codec
- MSI EZ M.2 Shield FROZR II with EZ M.2 CLIP II
- 7+2+1 DRPS Phase VRM Solution
- MSI Flash BIOS Button
- MSI Control Center Software
- Supports Windows 11
- 3 Year Warranty

94 Products

Please note: pricing visible is already subject to a 2% discount applicable only to EFT payments.

R3,670.00

Qty:

Add to Wishlist

Product Description

Additional Information

Reviews (0)

Questions (0)

Product Description

SPECIFICATIONS
Brand MSI
Series GAMING Series
Model B840 GAMING PLUS WIFI
CPU Support Supports Ryzen 7000, 8000, 9000-Series Processors
Chipset AMD B850 Chipset
Memory Support
AMD B840 Chipset 4x DDR5 UDIMM, Maximum Memory Capacity 256GB
Memory Support DDR5 8000 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s
Ryzen 9000 Series Processors max. overclocking frequency:
1DPC 1R Max speed up to 8000 MT/s
1DPC 2R Max speed up to 6400 MT/s
2DPC 1R Max speed up to 6400 MT/s
2DPC 2R Max speed up to 4800 MT/s
Supports AMD POR Speed and JEDEC Speed
Supports Memory Overclocking and AMD EXPOTM
Supports Dual-Channel mode
Supports Non-ECC, Un-buffered memory
Supports CUDIMM, Clock Driver bypass mode only
Video
HDMI 1x HDMI 2.1 (TMDS) Port, supporting a maximum resolution of 4096x2160@60 Hz, supports HDCP & HDR
Integrated graphics required. Actual support may vary by CPU.

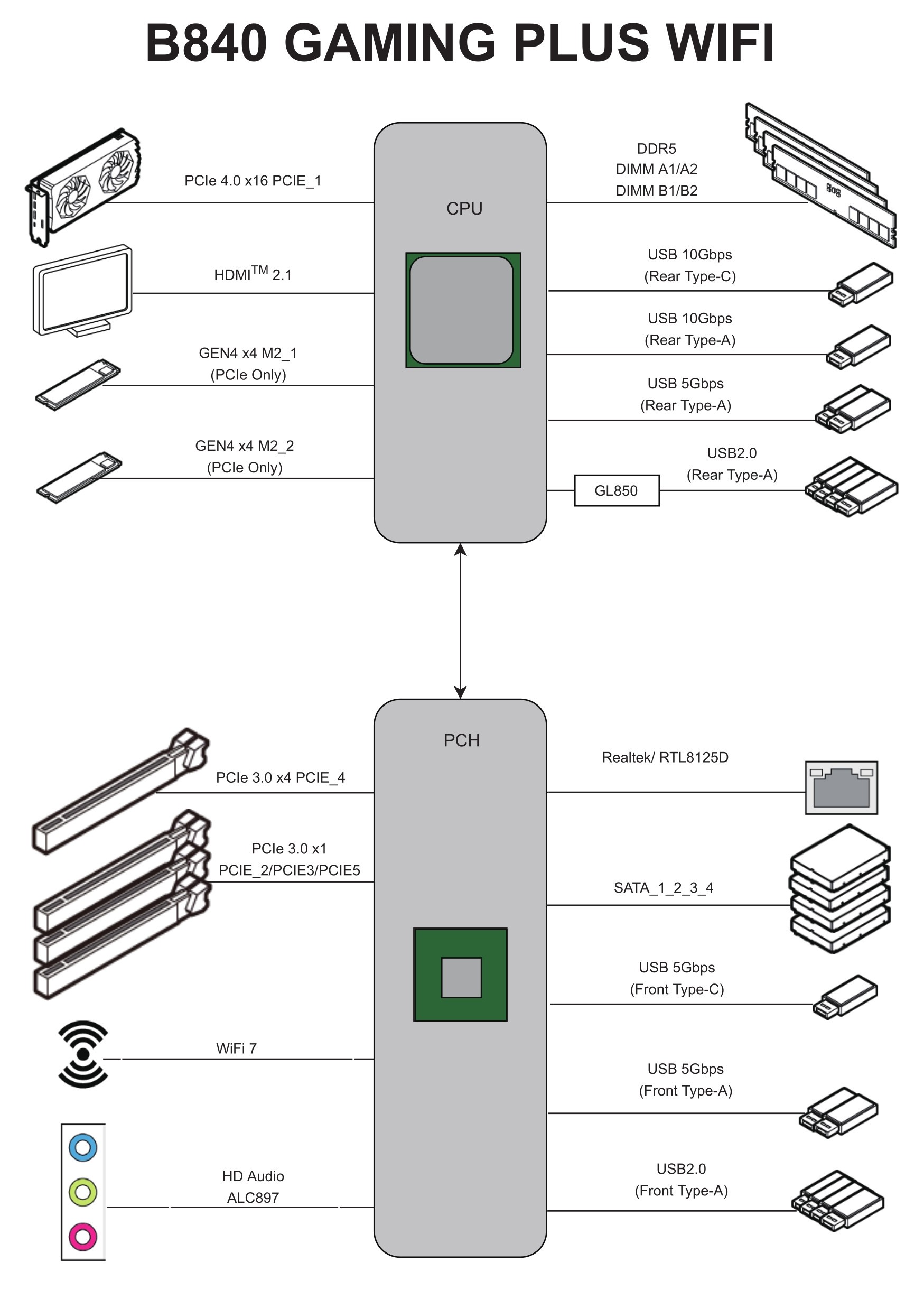

Expansion Slots
CPU Direct 1x PCIe 4.0 x16 Slot (x16 Physical) (PCI_E1)
AMD B840 Chipset 1x PCIe 3.0 x4 Slot (x16 Physical) (PCI_E3)
3x PCIe 3.0 x1 Slots (x16 Physical) (PCI_E2, PCI_E4, PCI_E5)
Slot Configurations PCI_E1 with Ryzen 8000 Phoenix 1 Processors support PCIe 4.0 x8 mode
PCI_E1 with Ryzen 8000 Phoenix 2 Processors support PCIe 4.0 x4 mode
Storage
CPU Direct M.2_1 supports up to PCIe 4.0 x4 , supports 2280/2260 devices
M.2_2 supports up to PCIe 4.0 x4 , supports 22110/2280/2260 devices
AMD B840 Chipset 4x SATA 6Gbps connectors
NOTE: RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices
Ryzen 9000-Series RAID 5 support for NVMe SSD storage devices
RAID 0, RAID 1, and RAID 10 support for SATA storage devices
Storage Configurations M.2_2 with Ryzen 8000 Phoenix 1 Processors support PCIe 3.0 x4/x2 SSDs
M.2_2 with Ryzen 8000 Phoenix 2 Processors support PCIe 3.0 x2 SSDs
Networking
LAN Realtek 8125BG 2.5G Gigabit Ethernet RJ-45 LAN Port
WiFi WiFi 7 Tri-Band Adapter
Bluetooth Bluetooth 5.4
Audio
Codec Realtek High-Definition Audio Codec
Support for 7.1 Surround with front-panel jack retasking, jack detection

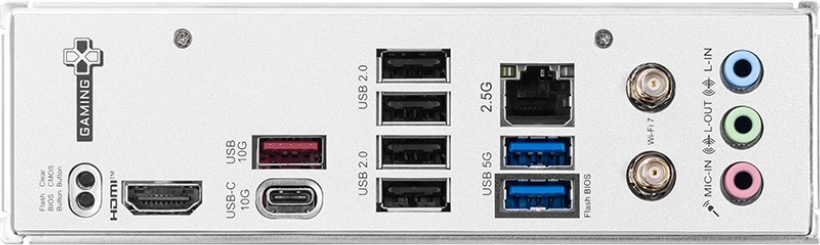

Connectivity
Ports 1x USB 10Gbps Type-C Port
1x USB 10Gbps Type-A Port
2x USB 5Gbps Type-A Port
4x USB 2.0 Type-A Ports
1x HDMI 2.1 Port (TMDS)
2x 3.5mm Audio Jacks (Headphone, Microphone)
2x SMA Connectors
1x Realtek 2.5 Gigabit Ethernet RJ-45 LAN Port
Buttons 1x MSI Flash BIOS button, Reset CMOS button
General

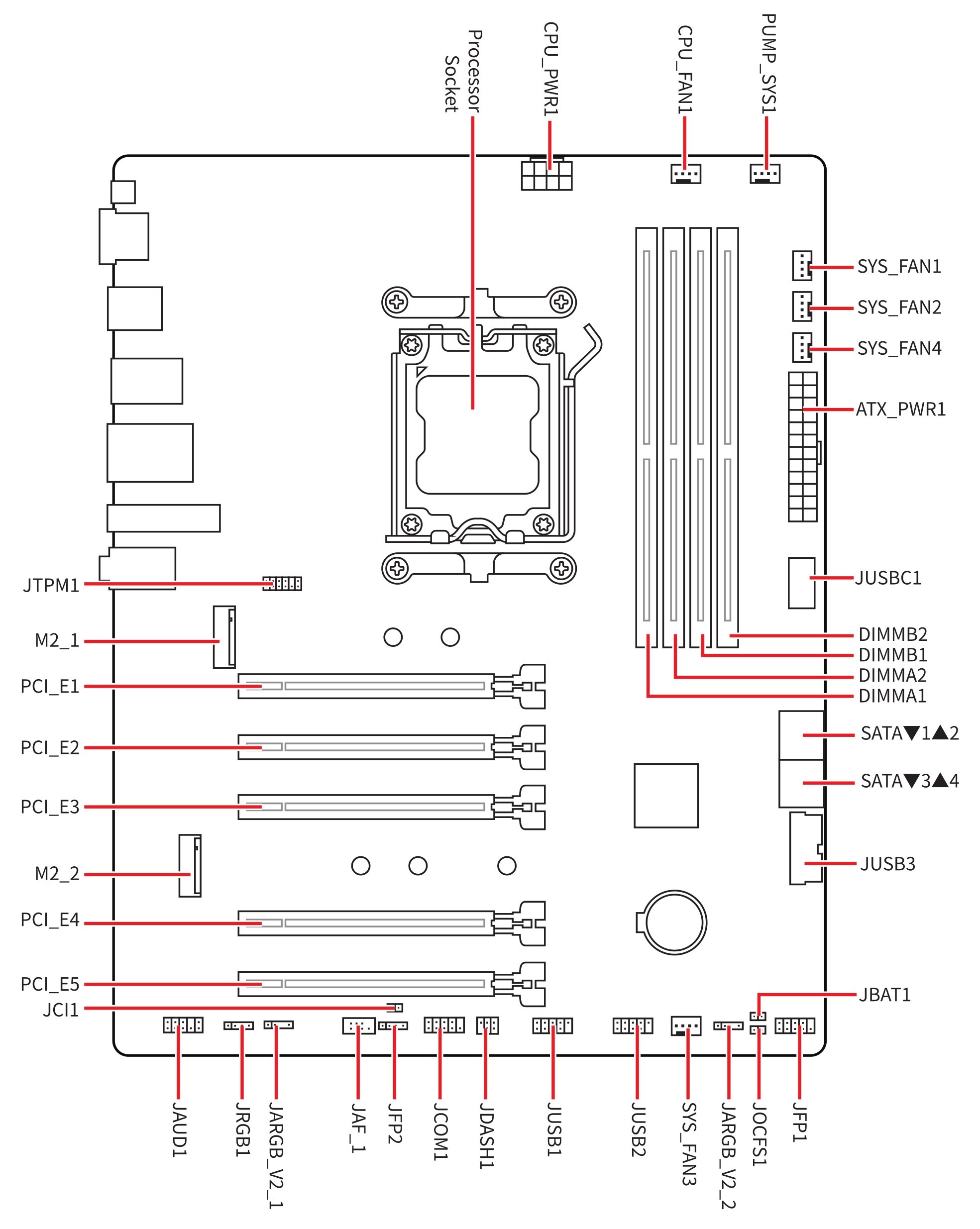

Internal Connectors 1x Power Connector(ATX_PWR)
1x Power Connector(CPU_PWR)
1x CPU Fan
1x Combo Fan (Pump_Sys Fan)
4x System Fan
1x EZ Conn-header (JAF_1)
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Com Port (JCOM)
1x Tuning Controller connector(JDASH)
2x Addressable V2 RGB LED connector (JARGB_V2)
1x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
4x USB 2.0 ports
2x USB 5Gbps Type A ports
1x USB 5Gbps Type C ports
LEDs MSI EZ-Debug Status LEDs (BOOT, CPU, VGA, MEM)
I/O Controller NUVOTON NCT6687D-R Controller Chip
BIOS 1x 256 Mbit flash
Use of licensed AMI UEFI BIOS
Form Factor ATX Form Factor, 305 x 244 mm (H x W)
Operating System Support Windows 11 64-bit
Warranty Information
Warranty 3 Year Warranty

Additional Information

Manufacturer's Site Visit the manufacturer's website

Product Link Visit the manufacturer's page for this product

Reviews (0)

Write Your Own Review

Only registered users can write reviews. Please, log in or register

Questions (0)

Questions

Ask a Question

Your Name *

Email * (not displayed publicly)

Your Question *
0/2000

No questions yet. Be the first to ask!

Manufacturer's Site	Visit the manufacturer's website
Product Link	Visit the manufacturer's page for this product

Category Bestsellers
Gigabyte B840M EAGLE WIFI6 AMD B840 Ryzen Socket AM5 Micro-ATX De...

In stock with Wootware
R3,199.00
R2,599.00
Save: R 600!
MSI PRO B840M-P WIFI6E AMD B840 Ryzen Socket AM5 Micro-ATX Deskto...

In stock with Supplier
R2,847.00
ASUS PRIME B840-PLUS WIFI AMD B840 Ryzen Socket AM5 ATX Desktop M...

In stock with Supplier
R3,199.00
Gigabyte B840M AORUS ELITE WIFI6E AMD B840 Ryzen Socket AM5 Micro...

In stock with Supplier
R3,889.00
MSI B840 GAMING PLUS WIFI AMD B840 Ryzen Socket AM5 ATX Desktop M...

In stock with Supplier
R3,670.00
ASUS PRIME B840M-A WIFI AMD B840 Ryzen Socket AM5 Micro-ATX Deskt...

In stock with Supplier
R4,199.00
Customers Who Bought This Also Bought
AMD 100-100001237BOX Ryzen 5 8600G 5.0GHz 6-Core Zen 4 Socket AM5...

In stock with Supplier
R3,552.00
1 Review(s)
AMD 100-100001405WOF Ryzen 5 9600X 5.40GHz 6-Core Zen 5 Socket AM...

In stock with Wootware
R6,499.00
R4,799.00
Save: R 1,700!
14 Review(s)
Super Flower SF-750F14GE Leadex III GE 750W 80 Plus Gold ATX 3.1 ...

In stock with Wootware
R2,449.00
R1,849.00
Save: R 600!
8 Review(s)
Kingston KCP556US6-8 8GB (1x8GB) DDR5-5600MT/s CL46 1.1V Desktop ...

In stock with Wootware
R2,399.00
R1,899.00
Save: R 500!
AMD 100-100001015BOX Ryzen 5 7600 5.10GHz 6-Core Zen 4 Socket AM5...

In stock with Wootware
R6,199.00
R3,999.00
Save: R 2,200!
8 Review(s)
MSI MAG A550BN 550W 80 Plus Bronze Non-Modular Black Desktop Pow...

In stock with Wootware
R1,199.00
R949.00
Save: R 250!
Montech XR ARGB Tempered Glass Black ATX Mid Tower Desktop Chassi...

In stock with Wootware
R1,799.00
R1,099.00
Save: R 700!
18 Review(s)
MSI PRO FORGE M050A Tempered Glass Black Micro-ATX Mini-Tower Des...

In stock with Wootware
R749.00
R599.00
Save: R 150!
Kioxia LSD10Z001TG8 EXCERIA PLUS G3 1TB M.2 2280 PCIe 4.0 x4 NVMe...

In stock with Wootware
R4,399.00
R2,999.00
Save: R 1,400!
AMD 100-100000597MPK Ryzen 5 7500F 5.0GHz 6-Core Zen 4 Socket AM5...

In stock with Wootware
R3,599.00
R3,199.00
Save: R 400!
12 Review(s)
Kingston KCP556US8-16 16GB (1x16GB) DDR5-5600MT/s CL46 1.1V Deskt...

Contact for Availability
R4,299.00
R3,299.00
Save: R 1,000!
XFX Radeon RX 9060 XT Swift Triple Fan Gaming OC Edition RX-96TS3...

In stock with Wootware
R13,199.00
R8,799.00
Save: R 4,400!
3 Review(s)
AMD 100-100000910WOF Ryzen 7 7800X3D 5.0GHz 8-Core Zen 4 Socket A...

In stock with Wootware
R8,299.00
23 Review(s)
ADATA SLEG-860-1000GCS Legend 860 1TB M.2 2280 PCIe 4.0 x4 NVMe S...

In stock with Wootware
R4,499.00
R2,899.00
Save: R 1,600!
XPG AX5U6000C3016G-DTLABRBK Lancer Blade RGB 32GB (2x16GB) DDR5-6...

In stock with Wootware
R12,899.00
R8,999.00
Save: R 3,900!
9 Review(s)

SPECIFICATIONS
Brand	MSI
Series	GAMING Series
Model	B840 GAMING PLUS WIFI
CPU Support	Supports Ryzen 7000, 8000, 9000-Series Processors
Chipset	AMD B850 Chipset
Memory Support
AMD B840 Chipset	4x DDR5 UDIMM, Maximum Memory Capacity 256GB
	Memory Support DDR5 8000 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s
	Ryzen 9000 Series Processors max. overclocking frequency:
	1DPC 1R Max speed up to 8000 MT/s
	1DPC 2R Max speed up to 6400 MT/s
	2DPC 1R Max speed up to 6400 MT/s
	2DPC 2R Max speed up to 4800 MT/s
	Supports AMD POR Speed and JEDEC Speed
	Supports Memory Overclocking and AMD EXPOTM
	Supports Dual-Channel mode
	Supports Non-ECC, Un-buffered memory
	Supports CUDIMM, Clock Driver bypass mode only
Video
HDMI	1x HDMI 2.1 (TMDS) Port, supporting a maximum resolution of 4096x2160@60 Hz, supports HDCP & HDR
HDMI	Integrated graphics required. Actual support may vary by CPU.
Expansion Slots
CPU Direct	1x PCIe 4.0 x16 Slot (x16 Physical) (PCI_E1)
AMD B840 Chipset	1x PCIe 3.0 x4 Slot (x16 Physical) (PCI_E3)
AMD B840 Chipset	3x PCIe 3.0 x1 Slots (x16 Physical) (PCI_E2, PCI_E4, PCI_E5)
Slot Configurations	PCI_E1 with Ryzen 8000 Phoenix 1 Processors support PCIe 4.0 x8 mode
Slot Configurations	PCI_E1 with Ryzen 8000 Phoenix 2 Processors support PCIe 4.0 x4 mode
Storage
CPU Direct	M.2_1 supports up to PCIe 4.0 x4 , supports 2280/2260 devices
CPU Direct	M.2_2 supports up to PCIe 4.0 x4 , supports 22110/2280/2260 devices
AMD B840 Chipset	4x SATA 6Gbps connectors
	NOTE: RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices
	Ryzen 9000-Series RAID 5 support for NVMe SSD storage devices
	RAID 0, RAID 1, and RAID 10 support for SATA storage devices
Storage Configurations	M.2_2 with Ryzen 8000 Phoenix 1 Processors support PCIe 3.0 x4/x2 SSDs
Storage Configurations	M.2_2 with Ryzen 8000 Phoenix 2 Processors support PCIe 3.0 x2 SSDs
Networking
LAN	Realtek 8125BG 2.5G Gigabit Ethernet RJ-45 LAN Port
WiFi	WiFi 7 Tri-Band Adapter
Bluetooth	Bluetooth 5.4
Audio
Codec	Realtek High-Definition Audio Codec
Codec	Support for 7.1 Surround with front-panel jack retasking, jack detection
Connectivity
Ports	1x USB 10Gbps Type-C Port
	1x USB 10Gbps Type-A Port
	2x USB 5Gbps Type-A Port
	4x USB 2.0 Type-A Ports
	1x HDMI 2.1 Port (TMDS)
	2x 3.5mm Audio Jacks (Headphone, Microphone)
	2x SMA Connectors
	1x Realtek 2.5 Gigabit Ethernet RJ-45 LAN Port
Buttons	1x MSI Flash BIOS button, Reset CMOS button
General
Internal Connectors	1x Power Connector(ATX_PWR)
	1x Power Connector(CPU_PWR)
	1x CPU Fan
	1x Combo Fan (Pump_Sys Fan)
	4x System Fan
	1x EZ Conn-header (JAF_1)
	2x Front Panel (JFP)
	1x Chassis Intrusion (JCI)
	1x Front Audio (JAUD)
	1x Com Port (JCOM)
	1x Tuning Controller connector(JDASH)
	2x Addressable V2 RGB LED connector (JARGB_V2)
	1x RGB LED connector(JRGB)
	1x TPM pin header(Support TPM 2.0)
	4x USB 2.0 ports
	2x USB 5Gbps Type A ports
	1x USB 5Gbps Type C ports
LEDs	MSI EZ-Debug Status LEDs (BOOT, CPU, VGA, MEM)
I/O Controller	NUVOTON NCT6687D-R Controller Chip
BIOS	1x 256 Mbit flash
BIOS	Use of licensed AMI UEFI BIOS
Form Factor	ATX Form Factor, 305 x 244 mm (H x W)
Operating System Support	Windows 11 64-bit
Warranty Information
Warranty	3 Year Warranty

Computer Components

Storage Devices

Peripherals

Networking

Computer Accessories

Other

Desktop Systems

Portable Systems

Accessories

Computer Components

Storage Devices

Peripherals

Networking

Computer Accessories

Other

Desktop Systems

Portable Systems

Accessories

More Views

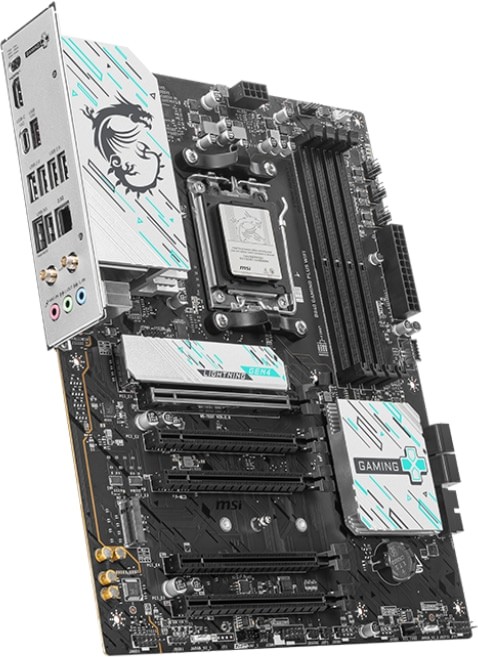

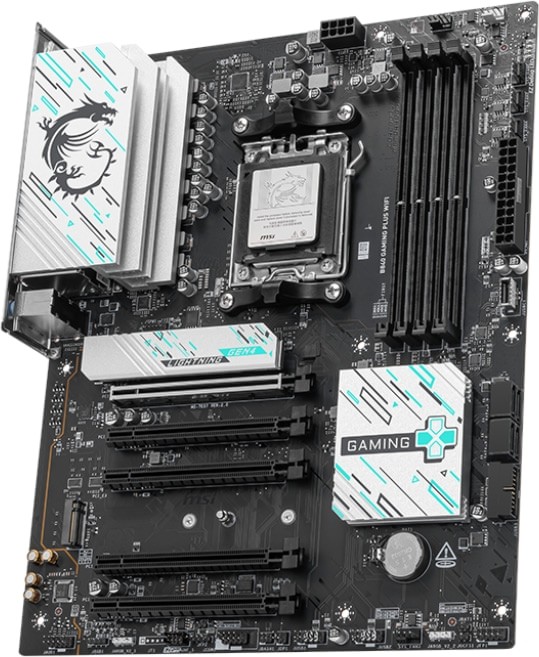

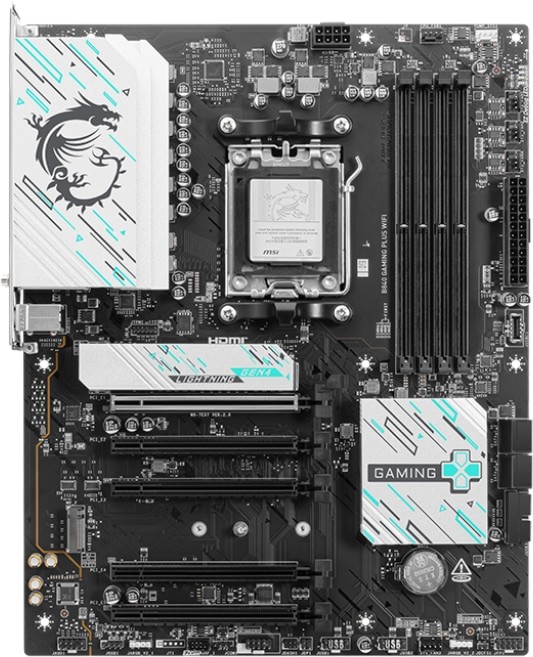

MSI B840 GAMING PLUS WIFI AMD B840 Ryzen Socket AM5 ATX Desktop Motherboard

94 Products

Questions

Ask a Question
