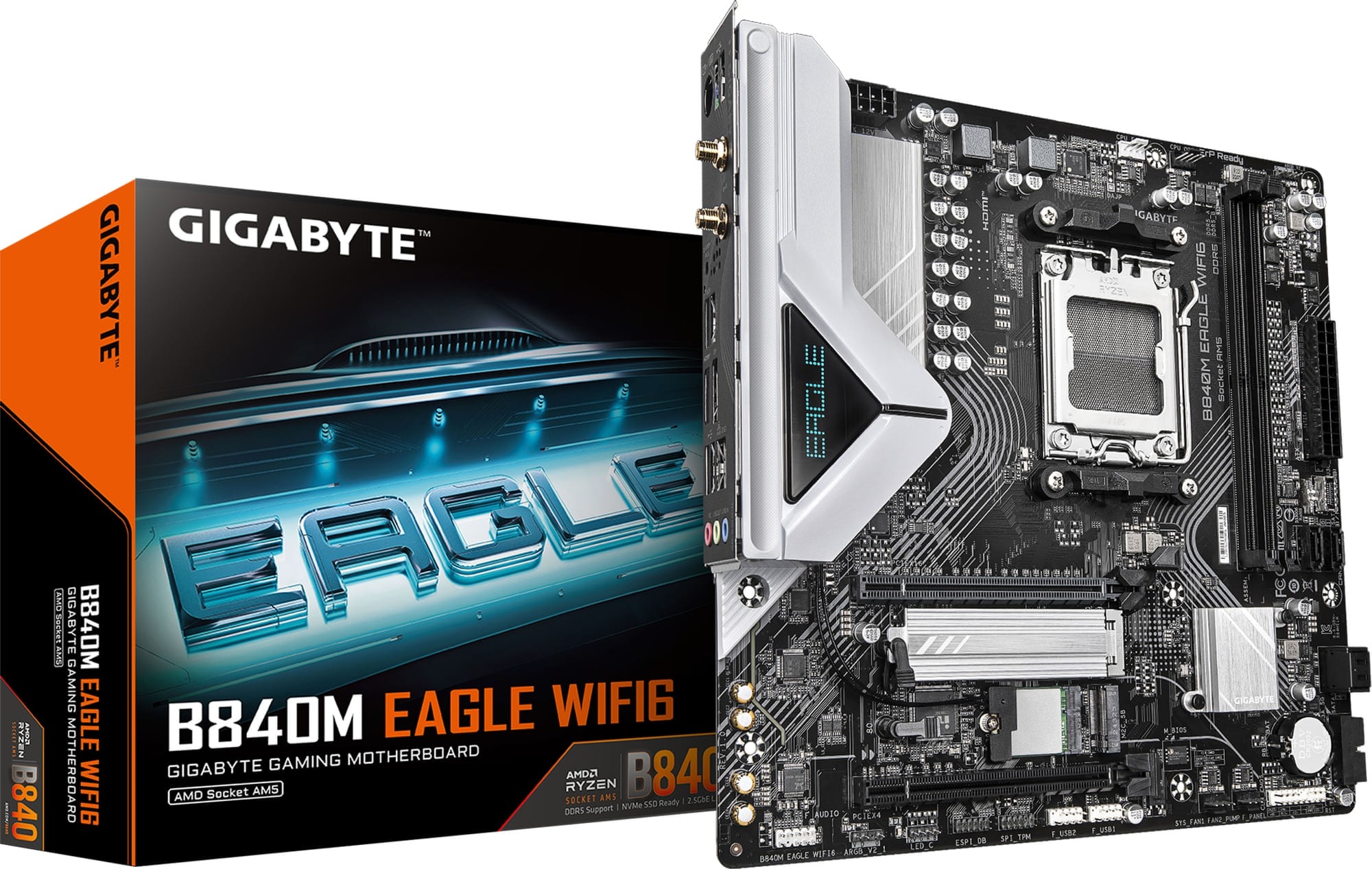

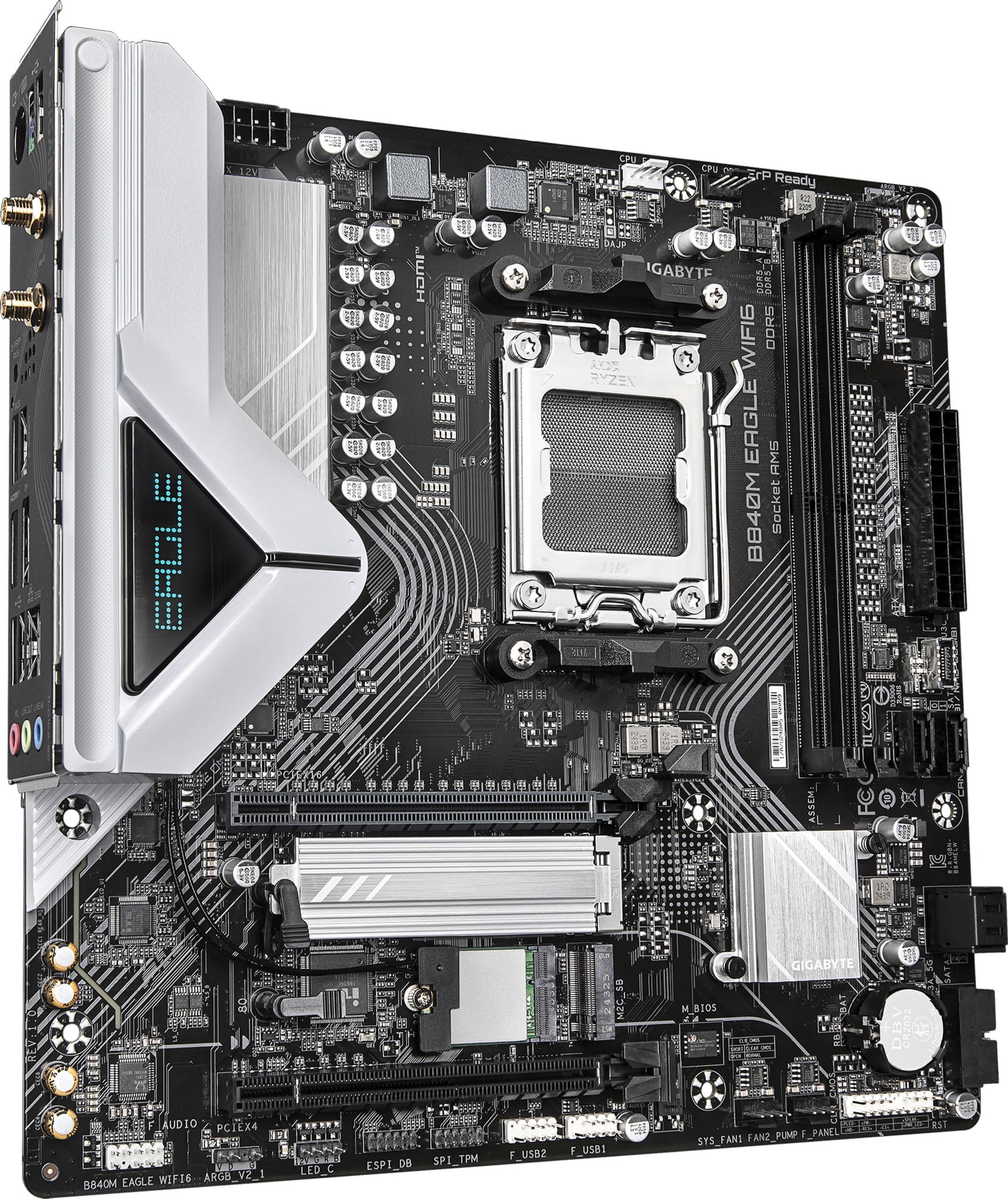

Gigabyte B840M EAGLE WIFI6 AMD B840 Ryzen Socket AM5 Micro-ATX Desktop Motherboard

More Views

Please note:
Images are for illustrative purposes only.

Gigabyte B840M EAGLE WIFI6 AMD B840 Ryzen Socket AM5 Micro-ATX Desktop Motherboard

Customer's Choice

for AMD B840 Micro ATX Motherboards

Product ID: 49557

✅ Please note: There are optional configurations available below. Simply click on an option to include it with your purchase.

WiFi & Bluetooth Adapter (Optional):
ASUS WiFi 7 Tri-Band PCIe Wireless Adapter

R 549.00
- View

In stock with Wootware

Lead time before dispatch; 1 - 2 business days

Be the first to review this product

- Micro-ATX Form Factor
- AMD B840 Chipset
- Socket AM5 Supports Ryzen 7000, 8000 & 9000 Series Processors
- 2x DDR5 DIMM Slots, Supports Up to 128GB (2x64GB)
- Supports Up to DDR5-7200 (OC)
- Supports AMD EXPO & Intel XMP 3.0 Modules
- 1x PCIe 4.0 x16 Slot (x16 Physical)
- 1x PCIe 3.0 x4 Slot (x16 Physical)
- 1x M.2 2580/2280 PCIe 4.0 x4 NVMe SSD Slot
- 1x M.2 2280 PCIe 3.0 x2 NVMe SSD Slot
- 4x SATA 3.0 Ports
- 2x USB 5Gbps Type-A Ports
- 4x USB 2.0 Type-A Ports
- 1x HDMI 2.1 Port (TMDS), 1x DisplayPort 1.4 Port
- 1x PS/2 Combo Port (Keyboard/Mouse)
- 3x 3.5mm Audio Jacks (Headphone, Microphone)
- 2x SMA Connectors
- Realtek 2.5 Gigabit Ethernet RJ-45 LAN Port
- Realtek WiFi 6 Dual-Band Adapter, Bluetooth 5.3
- Realtek High-Definition Audio Codec
- PCIe x16 EZ-Latch Mechanism
- Digital 5+2+2 Phase VRM Solution
- Gigabyte Q-Flash Plus Button
- Gigabyte RGB Fusion
- Supports Windows 11
- 3 Year Warranty

157 Products

Please note: pricing visible is already subject to a 2% discount applicable only to EFT payments.

R3,199.00

R2,599.00

Save: R 600!

Qty:

Add to Wishlist

Product Description
Additional Information
Reviews (0)
Questions (0)

Product Description

SPECIFICATIONS
Brand	Gigabyte
Series	EAGLE Series
Model	B840M EAGLE WIFI6
CPU Support	Supports Ryzen 7000, 8000, 9000-Series Processors
Chipset	AMD B840 Chipset
Memory Support
AMD B840 Chipset	Support for 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C) / 6200(O.C) / 6000(O.C) / 5800(O.C) / 5600(O.C) / 5200 / 4800 / 4400 MT/s memory modules.
	2x DDR5 DIMM sockets supporting up to 128 GB (64 GB single DIMM capacity) of system memory
	Dual channel memory architecture
	Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
	Support forAMD EXtended Profiles for Overclocking (AMD EXPO) and Extreme Memory Profile (XMP) memory modules
Video
DisplayPort	1x DisplayPort 1.4 port, supporting a maximum resolution of 3840x2160@144 Hz, supports HDCP & HDR
HDMI	1x HDMI 2.1 (TMDS) Port, supporting a maximum resolution of 4096x2160@60 Hz, supports HDCP & HDR
HDMI	Integrated graphics required. Actual support may vary by CPU.
Expansion Slots
CPU Direct	1x PCIe 4.0 x16 Slot (x16 Physical) (PCIEX16)
AMD B840 Chipset	1x PCIe 3.0 x4 Slots (x16 Physical) ((PCIEX4))
Slot Configurations	PCIEX16 with Ryzen 8000 Phoenix 1 Processors support PCIe 4.0 x8 mode
Slot Configurations	PCIEX16 with Ryzen 8000 Phoenix 2 Processors support PCIe 4.0 x4 mode
Storage
CPU Direct	1x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2580/2280 SSDs
AMD B840 Chipset	1x M.2 connector (M2C_SB), integrated in the Chipset, supporting Socket 3, M key, type 2280 PCIe 3.0 x2 SSDs
	4x SATA 6Gbps connectors
	RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices
	Ryzen 9000-Series RAID 5 support for NVMe SSD storage devices
	RAID 0, RAID 1, and RAID 10 support for SATA storage devices
Storage Configurations	M2A_CPU with Ryzen 8000 Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
Storage Configurations	M2A_CPU with Ryzen 8000 Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs
Networking
LAN	Realtek 2.5 Gigabit Ethernet RJ-45 LAN Port
WiFi	Realtek RTL8851BE WiFi 6 Dual-Band Adapter
Bluetooth	Bluetooth 5.3
Audio
Codec	Realtek High-Definition Audio Codec
Codec	Support for 7.1 Surround with front-panel jack retasking, jack detection

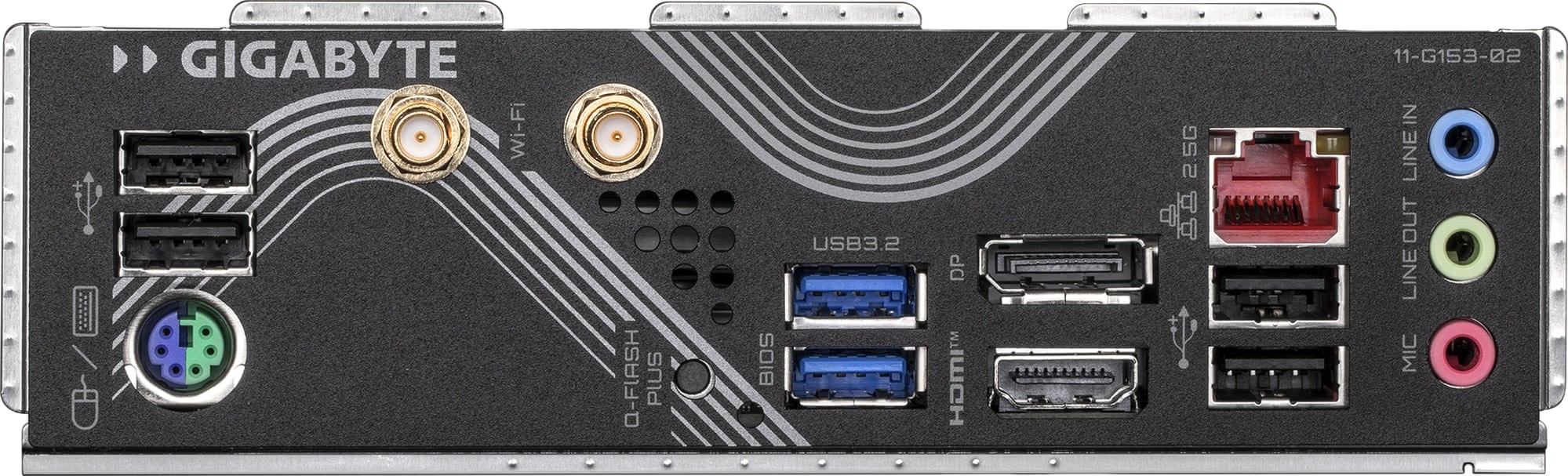

Connectivity
Ports	2x USB 5Gbps Type-A Ports
	4x USB 2.0 Type-A Ports
	1x HDMI 2.1 Port (TMDS)
	1x DisplayPort 1.4 Port
	1x PS/2 Combo Port (Keyboard/Mouse)
	3x 3.5mm Audio Jacks (Headphone, Microphone)
	2x SMA Connectors
	1x Realtek 2.5 Gigabit Ethernet RJ-45 LAN Port
Buttons	1x Q-Flash Plus button

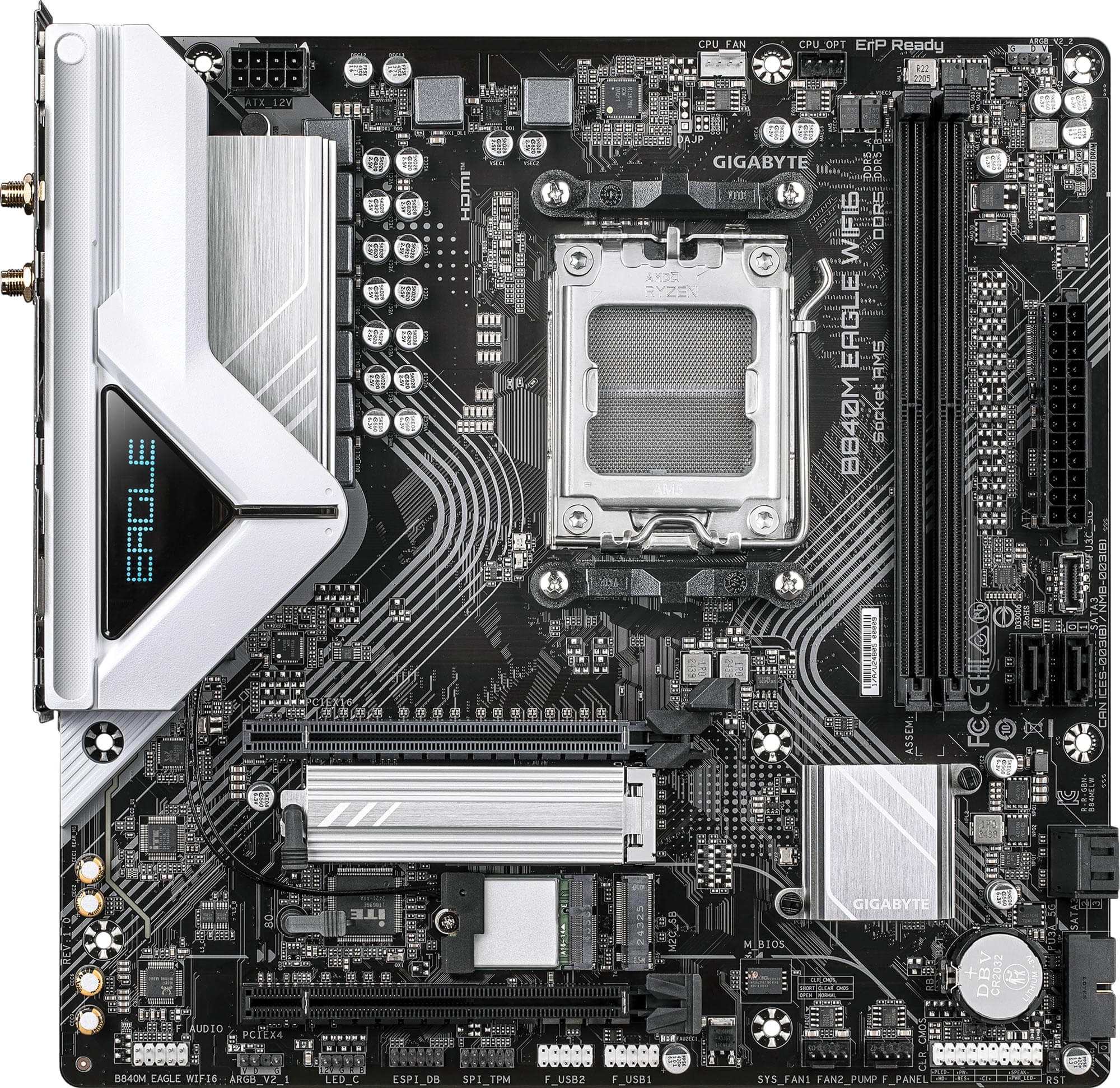

General
Internal Connectors	1x 24-pin ATX main power connector
	1x 8-pin ATX 12V power connector
	1x CPU fan header
	1x CPU fan/water cooling pump header
	1x system fan header
	1x system fan/water cooling pump header
	2x addressable RGB Gen2 LED strip headers
	1x RGB LED strip header
	2x M.2 Socket 3 connectors
	4x SATA 6Gb/s connectors
	1x front panel header
	1x front panel audio header
	1x USB Type-C header, with USB 3.2 Gen 1 support
	1x USB 3.2 Gen 1 header
	2x USB 2.0/1.1 headers
	1x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
	1x reset jumper
	1x Clear CMOS jumper
LEDs	Q-LED Status LEDs (BOOT, CPU, VGA, MEM)
I/O Controller	iTE I/O Controller Chip
BIOS	1x 256 Mbit flash
	Use of licensed AMI UEFI BIOS
	PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor	Micro-ATX Form Factor, 244 x 244 mm (H x W)
Operating System Support	Windows 11 64-bit
Warranty Information
Warranty	3 Year Warranty
