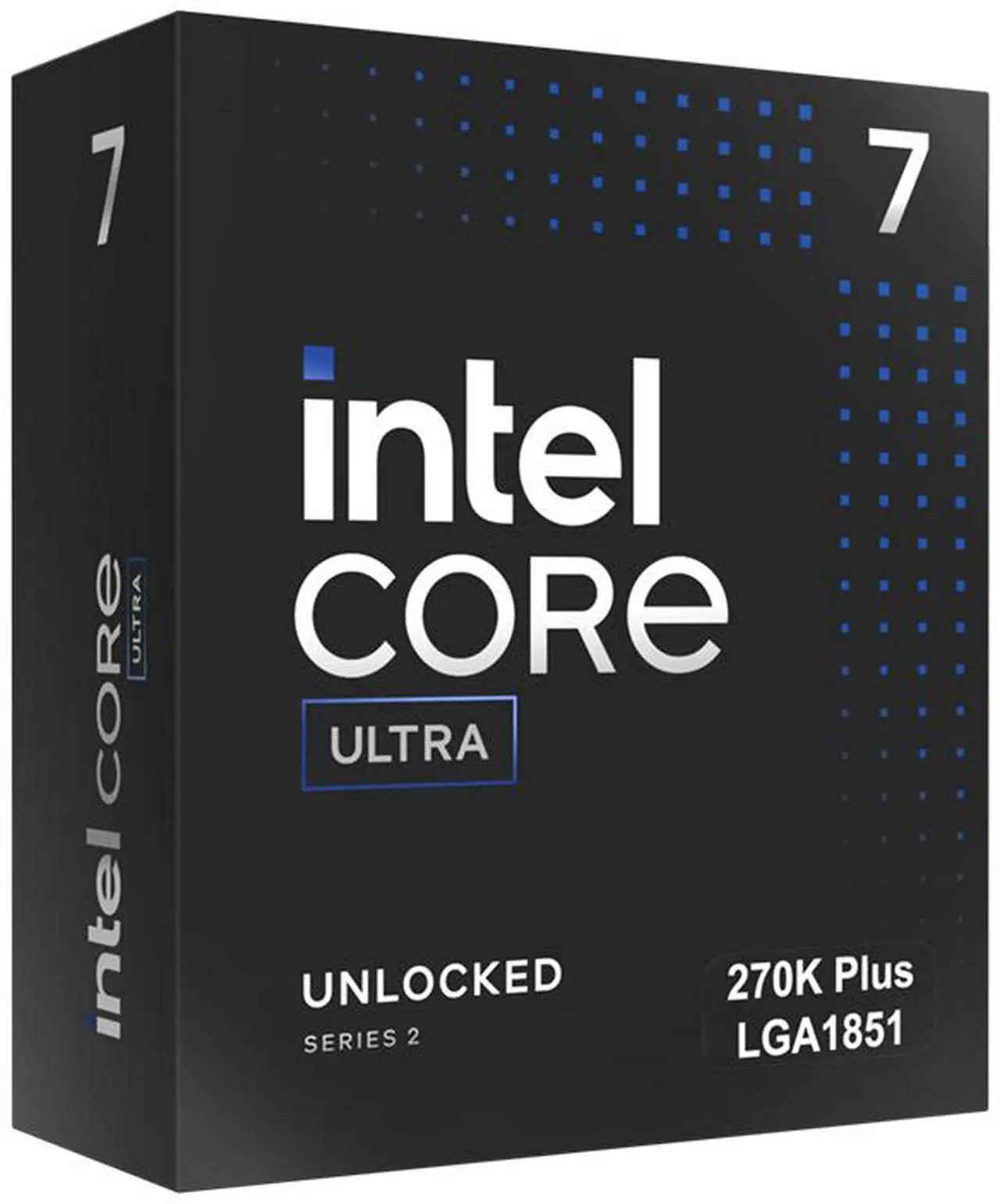

Intel BX80768270K Core Ultra 7 270K Plus 24-Core 5.50GHz Arrow Lake-S Socket LGA1851 Desktop CPU - Cooler Not Included

Product ID: 54092

In stock with Wootware

Lead time before dispatch; 1 - 2 business days

- Intel 15th Generation Arrow Lake-S Processor
- Intel AI Boost AI Accelerator NPU
- Up to 13 TOPs AI Performance (NPU)
- 8x Performance Cores
- 16x Efficient Cores
- 24 Cores, 24 Threads
- 36MB Intel Smart Cache
- Intel Graphics
- P-Core Max Turbo Clock: Up to 5.50GHz
- E-Core Max Turbo Clock: Up to 4.70GHz
- Socket LGA 1851 Compatible
- Up to DDR5-7200 Dual-Channel Memory Supported
- Up to 256GB (4x64GB) DDR5 Memory Supported
- PCI Express Version 5.0 Supported
- Intel eXtreme Memory 3.0 Overclocking Profiles
- Intel Turbo Boost Max Technology 3.0
- Intel Deep Learning Boost on CPU
- Intel Stock Cooler Not Included
- Base Power: 125W
- Turbo Power: Up to 250W
- Socket LGA 1851 Compatible
- Supports Windows 11, Linux
- 3 Year Warranty

50 Products

Please note: pricing visible is already subject to a 2% discount applicable only to EFT payments.

R8,999.00

R6,999.00

Save: R 2,000!

Qty:

Add to Wishlist

Features
Product Description
Additional Information
Reviews (1)
Questions (0)

Features Product Description

SPECIFICATIONS
Brand	Intel
Series	15th Gen Arrow Lake S
Model	Core Ultra 5 270K Plus (BX80768270K)
CPU Specifications
Cores	24 cores
Number of Performance-cores	8 cores
Number of of Efficient-cores	16 cores
Total Threads	24 threads
Max Turbo Frequency	5.50 GHz
Performance-core Max Turbo Frequency	5.50 GHz
Efficient-core Max Turbo Frequency	4.70 GHz
Performance-core Base Frequency	3.70 GHz
Efficient-core Base Frequency	3.20 GHz
Cache	36MB Intel Smart Cache
Total L2 Cache	40MB
Processor Base Power	125W
Maximum Turbo Power	250W
Intel Deep Learning Boost (Intel DL Boost) on CPU	Yes, supported
AI Software Frameworks Supported by CPU	OpenVINO, WindowsML, DirectML, ONNX RT, WebNN
CPU Lithography	TSMC N3B
Memory Specifications
Max Memory Size (dependent on memory type)	256GB
Memory Types	DDR5
Maximum Memory Speed	7200 MT/s
Max # of Memory Channels	2, dual-channel
ECC Memory Supported	Yes
GPU Specifications
GPU Name	Intel Graphics
Graphics Base Frequency	300 MHz
Graphics Max Dynamic Frequency	2.0 Ghz
GPU Peak TOPS (Int8)	8
Graphics Output	eDP1.4b, DP 2.1 UHBR20, HDMI 2.1 FRL
Xe-cores	4
Max Resolution (HDMI)	4096 x 2304 @ 60Hz (HDMI 2.1 TMDS)
Max Resolution (HDMI)	7680 x 4320 @ 60Hz (HDMI 2.1 FRL)
Max Resolution (DP)	7680 x 4320 @ 60Hz
*DirectX Support**	Direct3D 12
*OpenGL Support**	4.5
*OpenCL Support**	3.0
H.264 Hardware Encode/Decode Yes, supported
H.265 (HEVC) Hardware Encode/Decode	Yes, supported
AV1 Encode/Decode	Yes, supported
Intel Quick Sync Video	Yes, supported
Simultaneous Displays Supported	4x simultaneous
Intel Deep Learning Boost (Intel DL Boost) on GPU	Yes, supported
NPU Specifications
NPU Name	Intel AI Boost
NPU Peak TOPS (Int8)	13
Sparsity Support	Yes
Windows Studio Effects Support	Yes
AI Software Frameworks Supported by NPU	OpenVINO, WindowsML, DirectML, ONNX RT, WebNN
Expansion Options
Direct Media Interface (DMI) Revision	4
Max # of DMI Lanes	8
Intel Thunderbolt 4	Yes, supported
Scalability	1S Only
PCI Express Revision	5.0 and 4.0
PCI Express Configurations	Up to 1x16 2x4, 2x8 2x4, 1x8 4x4
Max # of PCI Express Lanes	24
Package Specifications
Sockets Supported	FCLGA1851
Thermal Solution Specification	PCG 2020A
Max Operating Temperature	105 °C
General
Platform Support	Windows 11 64-bit
Platform Support	Linux
Warranty Information
Warranty	3 Year Warranty
