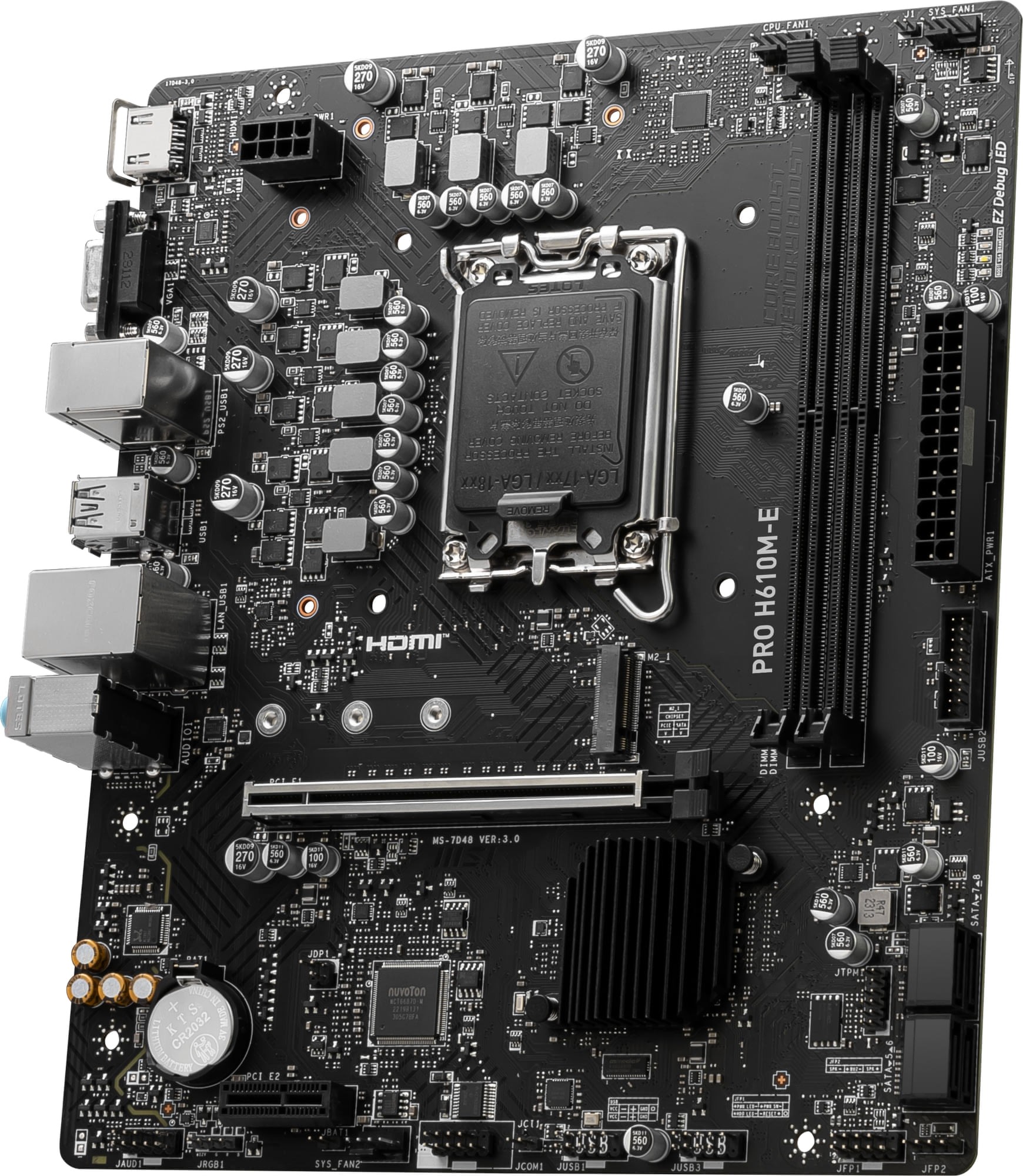

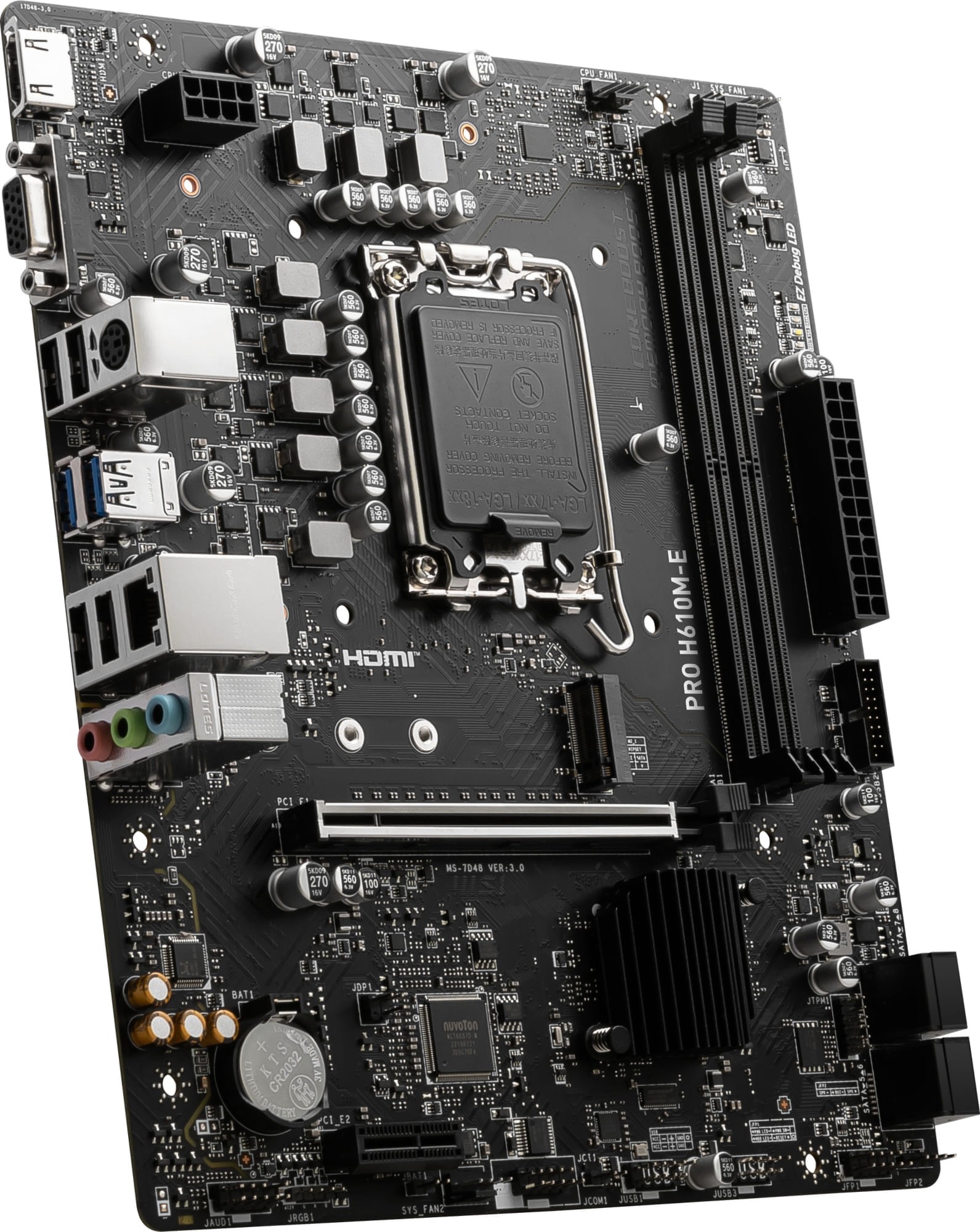

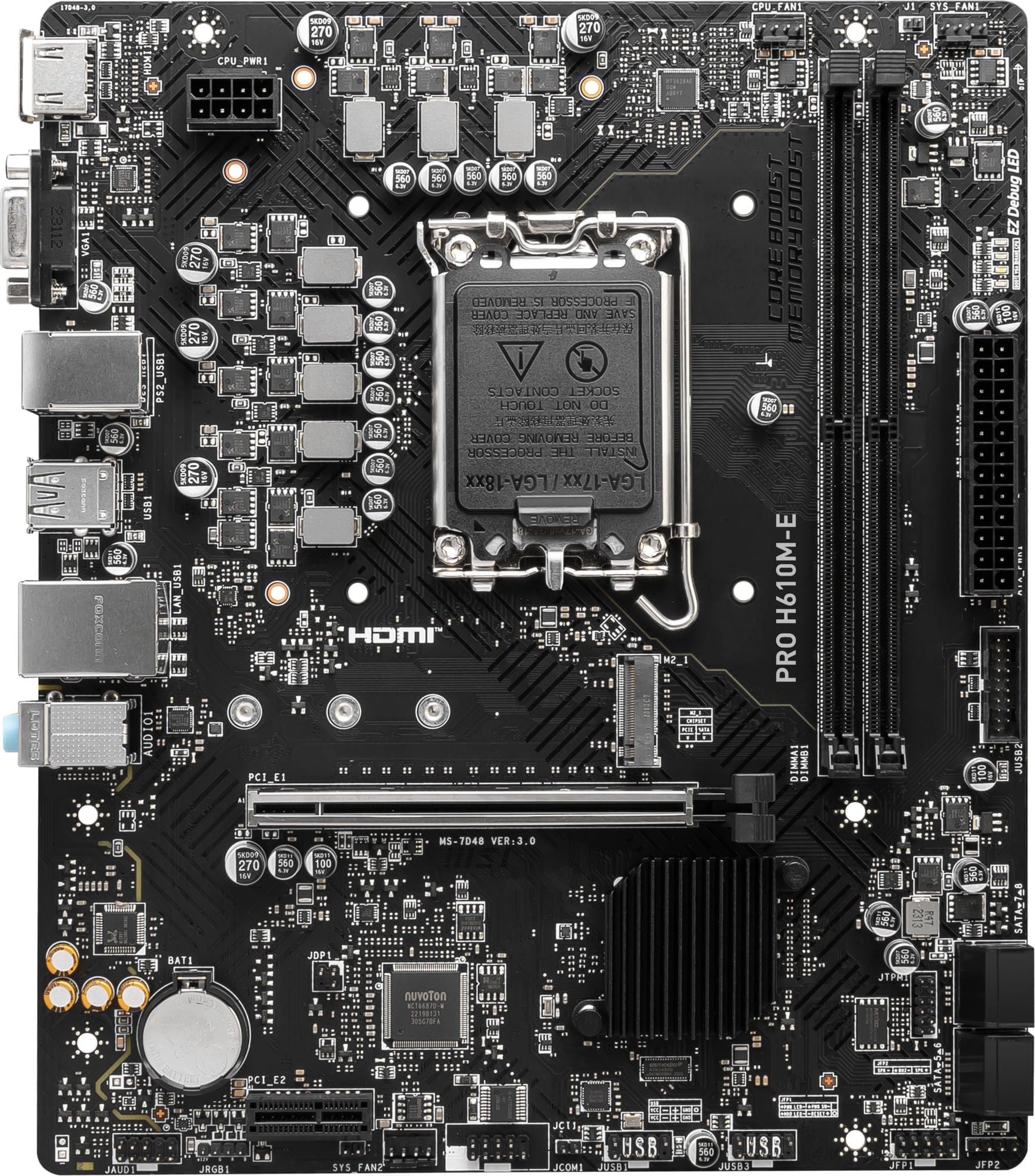

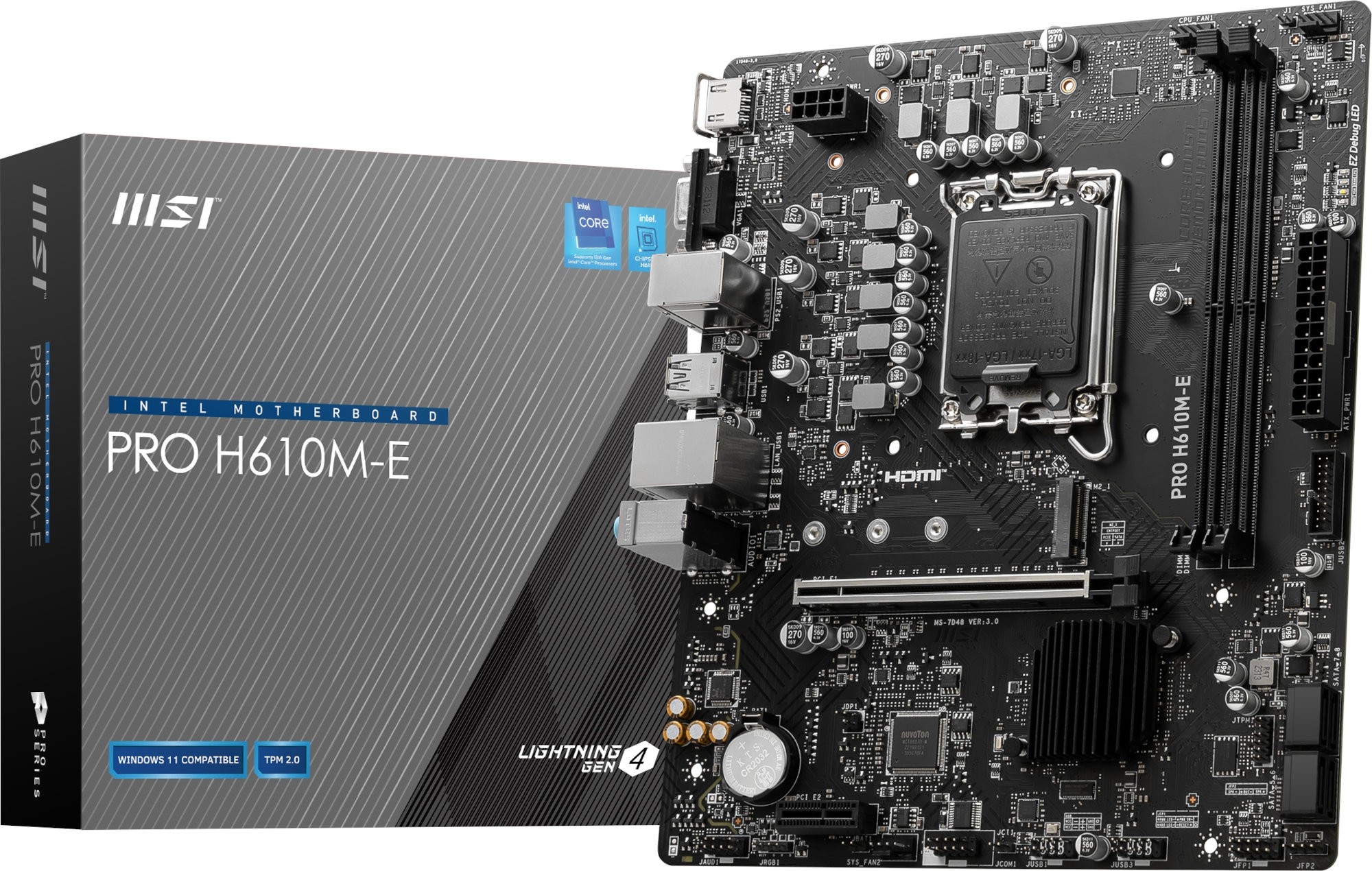

MSI PRO H610M-E DDR5 Intel H610 Raptor Lake LGA 1700 Micro-ATX Desktop Motherboard

More Views

Please note:
Images are for illustrative purposes only.

MSI PRO H610M-E DDR5 Intel H610 Raptor Lake LGA 1700 Micro-ATX Desktop Motherboard

Product ID: 46075

In stock with Supplier

Lead time before dispatch; 1 - 2 business days

Be the first to review this product

- Micro-ATX Form Factor Motherboard
- Intel H610 Chipset
- LGA 1700 Socket Supports 14th, 13th & 12th Gen Core Processors
- 2x DDR5 DIMM Slots, Up to 96GB (2x48GB)
- Supports Up to DDR5-5600
- 1x PCIe 4.0 x16 Slot (x16 Physical)
- 1x PCIe 3.0 x1 Slot
- 1x M.2 2280/2260/2242 PCIe 3.0 x4 NVMe SSD Slot
- 4x SATA 3.0 Ports
- 2x USB 5Gbps Type-A Ports
- 4x USB 2.0 Type-A Ports
- 1x PS/2 Combo Port (Keyboard/Mouse)
- 1x HDMI 1.4b Port
- 1x VGA D-Sub Port
- 3x 3.5mm Audio Jacks
- Realtek Gigabit Ethernet RJ-45 LAN
- Realtek ALC897 High-Definition Audio Codec
- MSI EZ Debug Diagnostic LEDs
- MSI Steel Armour PCIe Slot Design
- MSI Mystic Light RGB Sync
- MSI Center Software
- Supports Windows 10, Windows 11 64-bit
- 3 Year Warranty

94 Products

Please note: pricing visible is already subject to a 2% discount applicable only to EFT payments.

R1,599.00

Qty:

Add to Wishlist

Product Description
Additional Information
Reviews (0)
Questions (0)

Product Description

SPECIFICATIONS
Brand	MSI
Series	PRO Series
Model	PRO H610M-E
CPU Support	Supports 14th, 13th & 12th Gen Core Processors
Chipset	Intel H610
Memory Support
14th, 13th & 12th Gen Core Processors	2x DDR5, Maximum Memory Capacity 96GB
	Memory Support DDR5 5600 MHz (by JEDEC & POR)
	Supports Intel XMP 3.0 OC
	Supports Dual-Controller Dual-Channel mode
	Supports non-ECC, un-buffered memory
Video
HDMI	1x HDMI, Supports HDMI 1.4b, maximum resolution of UltraHD 4K 30Hz
VGA D-Sub	1x VGA Port, maximum resolution of 2048x1536 @ 50Hz
VGA D-Sub	Integrated Intel graphics required. Actual support may vary by CPU.
Expansion Slots
CPU Direct	1x PCIe 4.0 x16 Physical, x16 Electrical
Intel H610 Chipset	1x PCIe 3.0 x1 Physical, x1 Electrical
Storage
Intel H610 Chipset	M.2_1 supports up to PCIe 3.0 x4 / SATA mode, supports 2280/2260/2242 devices
	4x SATA 6Gb/s Ports
	Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices
	NOTE: SATA5 will be unavailable when installing M.2 SATA SSD in the M2_1 slot.
Networking
LAN	Realtek Gigabit Ethernet RJ-45
WiFi	N/A
Bluetooth	N/A
Audio
Codec	Realtek ALC892 High-Definition Codec
Codec	7.1-Channel High Definition Audio with front-panel jack retasking
Connectivity
Ports	2x USB 5Gbps Type-A Ports
	1x HDMI 1.4b Port
	1x VGA D-Sub Port
	3x 3.5mm Audio Jacks
	1x PS/2 Combo Port (Keyboard/Mouse)
	1x Realtek 2.5 Gigabit Ethernet RJ-45 LAN Port
Buttons	N/A
General
Internal Connectors	1x Power Connector(ATX_PWR)
	1x Power Connector(CPU_PWR)
	1x CPU Fan
	2x System Fan
	2x Front Panel (JFP)
	1x Chassis Intrusion (JCI)
	1x Front Audio (JAUD)
	1x Com Port (JCOM)
	1x RGB LED connector(JRGB)
	1x TPM pin header(Support TPM 2.0)
	4x USB 2.0 ports
	2x USB 3.2 Gen1 Type A ports
I/O Controller	NUVOTON NCT6687-D Controller Chip
LED Displays	4x EZ Debug Diagnostic LEDs
BIOS	256Mb UEFI AMI BIOS
BIOS	ACPI 6.4, SMBIOS 3.4, Multiple languages
Form Factor	ATX Form Factor, 236.16 x 200mm (H x W)
Operating System Support	Windows 10 64-bit
Operating System Support	Windows 11 64-bit

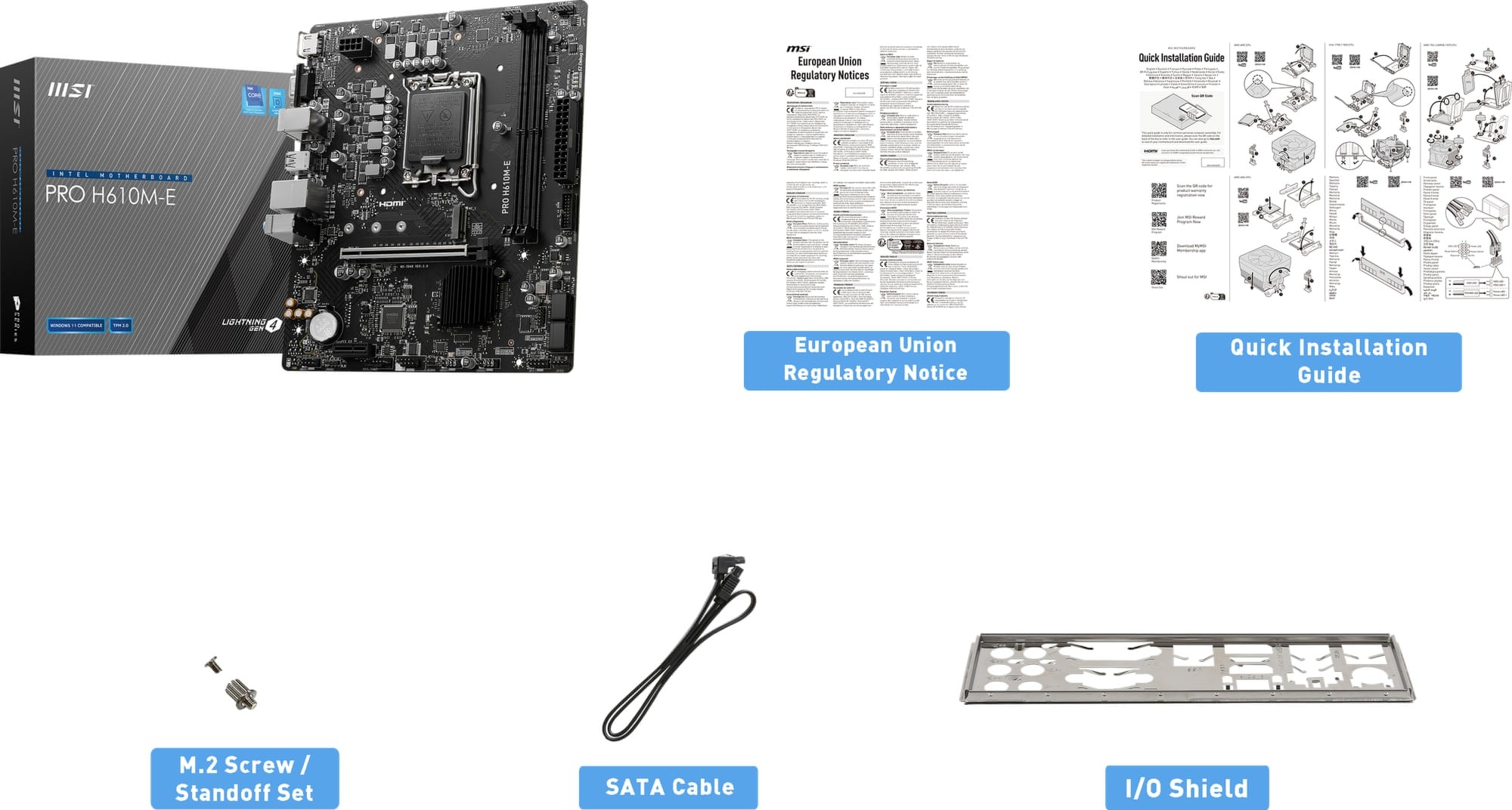

Box Contents	1x Motherboard
	1x Quick installation guide
	1x European Union regulatory notice
	1x SATA 6G cable
	1x M.2 screw and standoff package (1 set/pack)
Warranty Information
Warranty	3 Year Warranty
