Gigabyte H610M K V2 DDR5 H610M-K-V2-REV-10 Intel H610 LGA 1700 Raptor Lake Micro-ATX Desktop Motherboard

More Views

Please note:
Images are for illustrative purposes only.

Gigabyte H610M K V2 DDR5 H610M-K-V2-REV-10 Intel H610 LGA 1700 Raptor Lake Micro-ATX Desktop Motherboard

Product ID: 50026

In stock with Supplier

Lead time before dispatch; 1 - 2 business days

Be the first to review this product

- Micro-ATX Form Factor
- Intel H610 Chipset
- Socket LGA 1700
- Supports Intel 12th, 13th, 14th Gen Processors
- 2x DDR5 DIMM Slots, Supports Up To 128GB
- Supports Up to DDR5-5600
- Supports Intel XMP 3.0 Memory Modules
- 1x PCIe 4.0 x16 Slot (x16 Physical)
- 1x PCIe 3.0 x1 Slot (x1 Physical)
- 1x M.2 2280 PCIe 3.0 x4 NVMe SSD Slot
- 2x SATA 6Gbps Ports
- 2x USB 5Gbps Type-A Ports
- 4x USB 2.0 Type-A Ports
- 1x HDMI 2.1 (TMDS) Port, 1x DisplayPort 1.2 Port
- 3x 3.5mm Audio Jacks
- Realtek Gigabit Ethernet RJ-45 LAN
- Realtek High Definition Audio Codec
- Gigabyte EZ-Latch M.2 Design
- Gigabyte Smart Fan 6 Technology
- Gigabyte Control Center Utility
- Supports Windows 11 64-bit
- 3 Year Warranty

157 Products

Please note: pricing visible is already subject to a 2% discount applicable only to EFT payments.

R1,540.00

Qty:

Add to Wishlist

Product Description
Additional Information
Reviews (0)
Questions (0)

Product Description

SPECIFICATIONS
Brand	Gigabyte
Series	H610 Motherboard Series
Model	H610M-K-V2-REV-10
CPU Support	Intel Socket LGA1700 for 14th & 13th Gen Intel Core Processors & 12th Gen Intel Core, Pentium Gold and Celeron Processors
Chipset	Intel H610 Express
Memory Support
14th & 14th Gen Core i9/i7 Processors	Support for DDR5 5600/5200/4800/4400 MT/s memory modules
13th Gen Intel Core i5/i3	Support for DDR5 4800/4400 MT/s memory modules
12th Gen Intel Core, Pentium Gold and Celeron	Support for DDR5 4800/4400 MT/s memory modules
	2x DDR5 DIMM sockets supporting up to 128 GB (64 GB single DIMM capacity) of system memory
	Dual channel memory architecture
	Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
	Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
	Support for Extreme Memory Profile (XMP) memory modules
Video
HDMI	1x HDMI 2.1 port, supporting a maximum resolution of 4K 4096x2160 @ 60Hz, Support for HDCP 2.3, and HDR
DisplayPort	1x DisplayPort 1.2 port, supporting a maximum resolution of 4K 4096x2160 @ 60Hz, Support for HDCP 2.3, and HDR
DisplayPort	Integrated Intel graphics required. Actual support may vary by CPU.
Expansion Slots
CPU Direct	1x PCIe 4.0 x16 Physical, x16 Electrical slot
Intel H610 Chipset	1x PCIe 3.0 x1 Physical, x1 Electrical slot
Storage
CPU Direct	1x M.2 connector (Socket 3, M key, type 2280/2260 PCIe 3.0 x4/x2 SSD support)
Intel H610 Chipset	4x SATA 6Gbps ports
Intel H610 Chipset	Intel Rapid Storage Technology supports SATA RAID
Networking
LAN	Realtek Gigabit LAN 10/100/1000Mbps
WiFi	N/A
Bluetooth	N/A
Audio
Codec	Realtek 7.1 Surround Sound High Definition Audio CODEC
Codec	Supports Jack-detection, Multi-streaming, Front Panel Jack-retasking

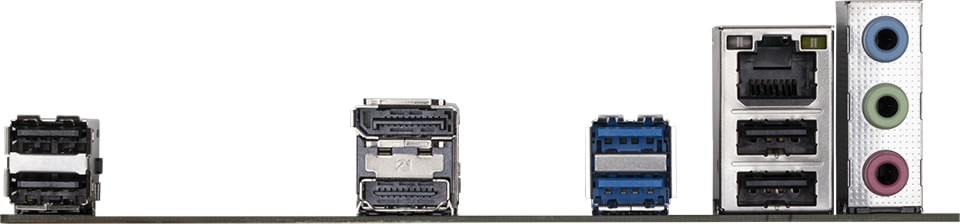

Connectivity
Ports	2x USB 5Gbps Type-A Ports
	4x USB 2.0 Type-A Ports
	1x HDMI 2.1 (TMDS) Port
	1x DisplayPort 1.2 Port
	3x 3.5mm Audio Jacks
	1x Realtek Gigabit Ethernet RJ-45 LAN Port
General

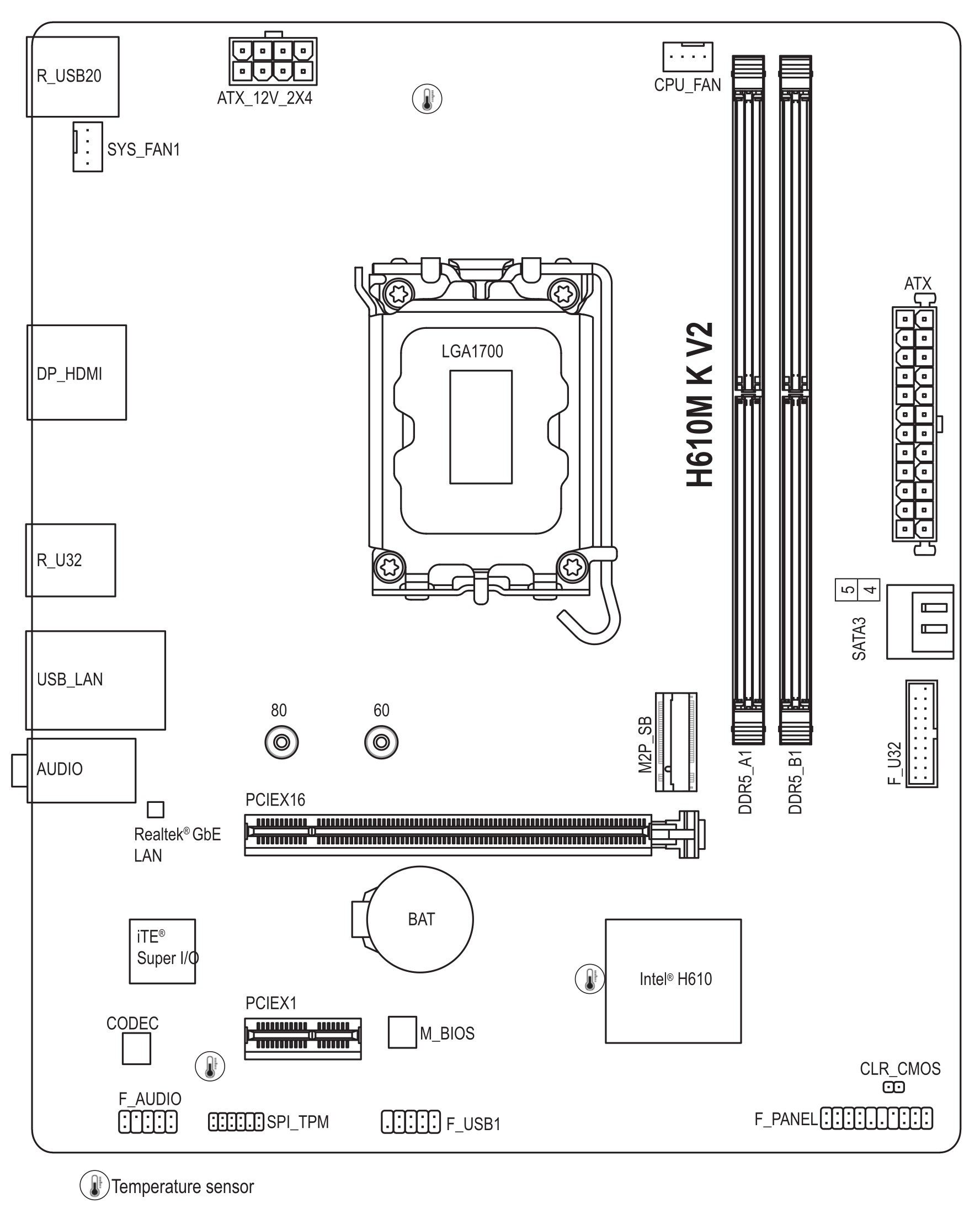

Internal Connectors	1x 24-pin ATX main power connector
	1x 8-pin ATX 12V power connector
	1x CPU fan header
	1x system fan header
	1x M.2 Socket 3 connector
	2x SATA 6Gb/s connectors
	1x front panel header
	1x front panel audio header
	1x USB 3.2 Gen 1 header
	1x USB 2.0/1.1 header
	1x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 / GC-TPM2.0 SPI V2 module only)
	1x Clear CMOS jumper
Buttons	N/A
LED Displays	N/A
BIOS	128Mb Flash ROM, UEFI AMI BIOS
BIOS	PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor	Micro-ATX Form Factor, 226 x 185mm (H x W)
Operating System Support	Windows 11 64-bit
Warranty Information
Warranty	3 Year Warranty
