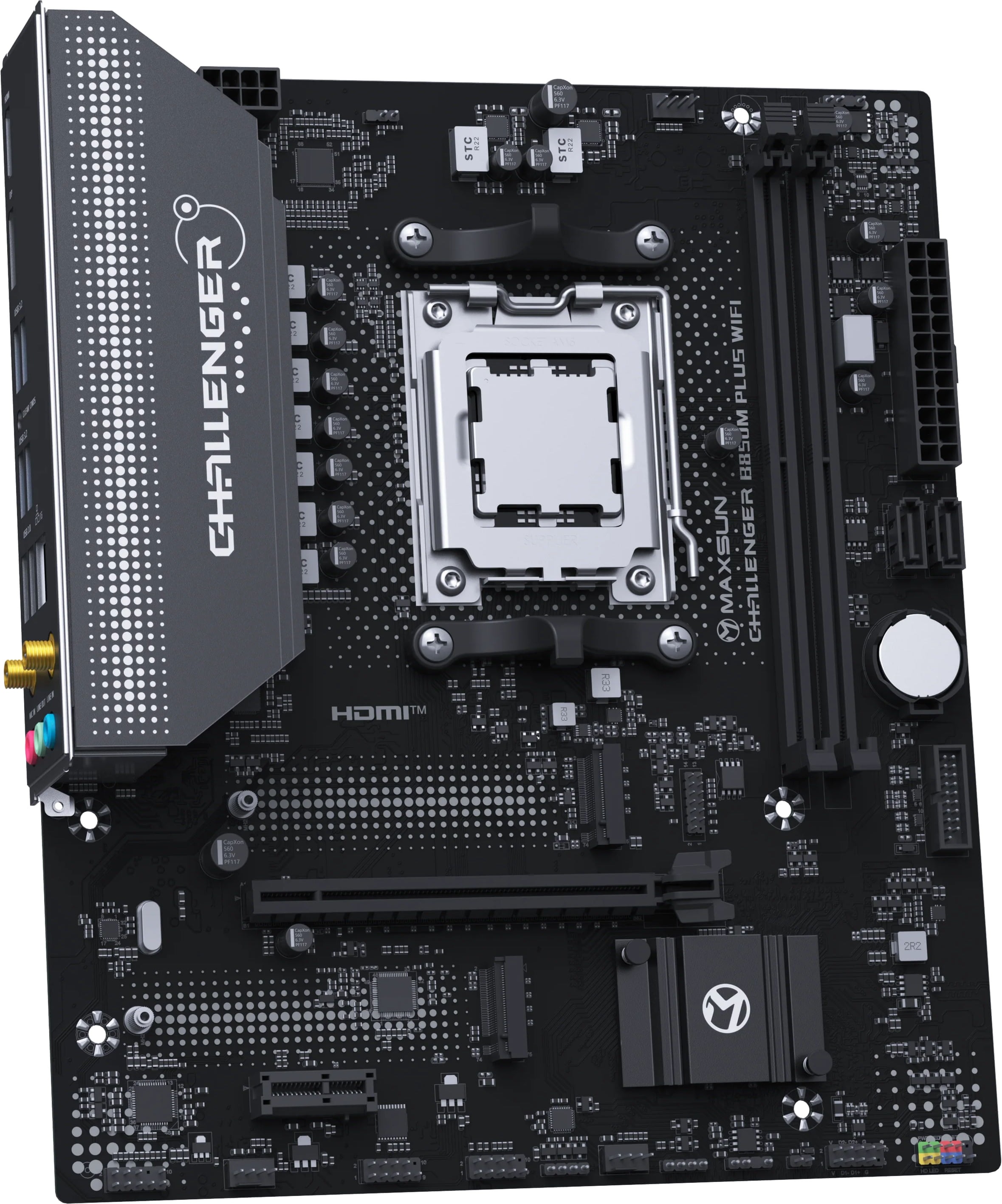

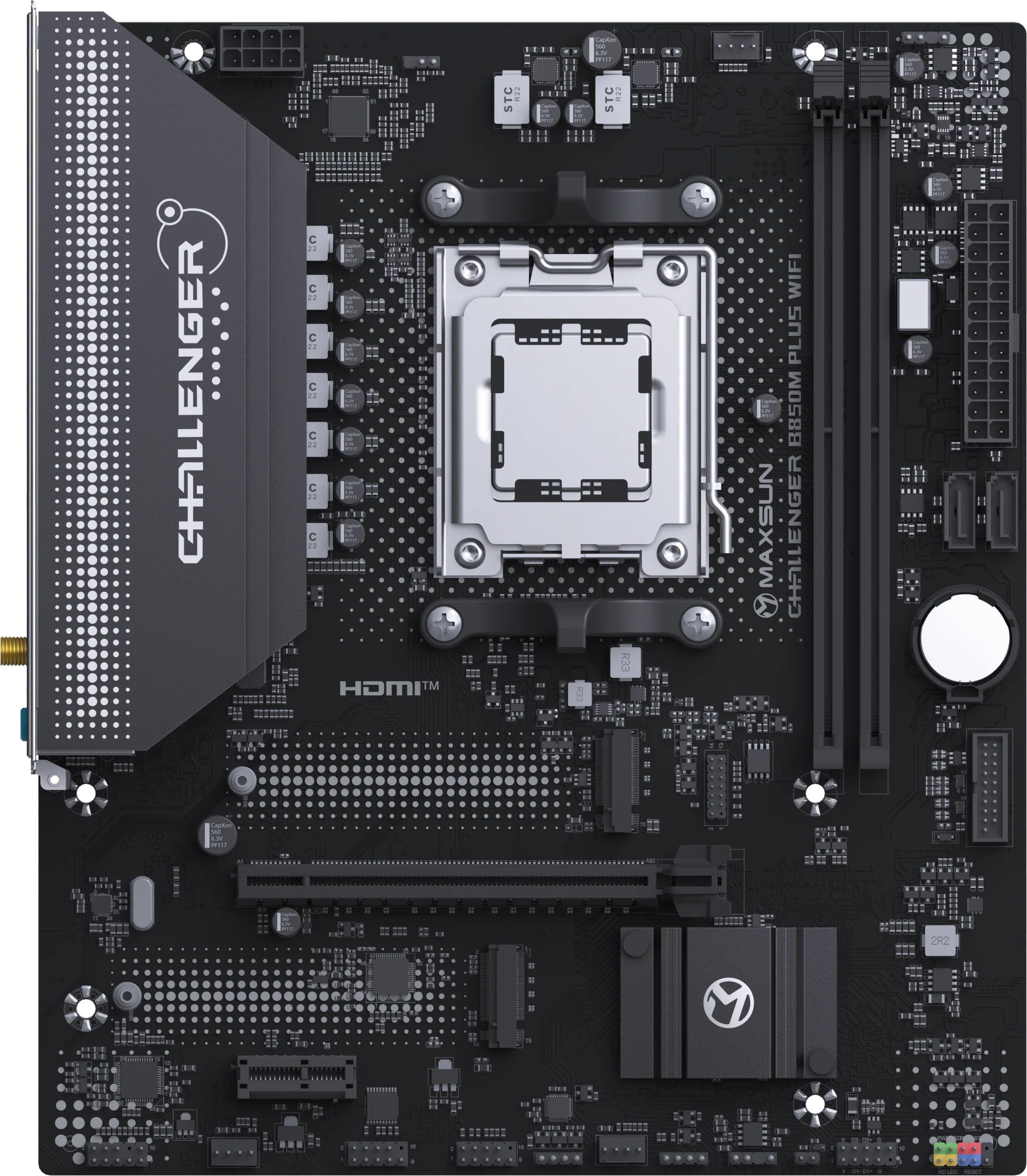

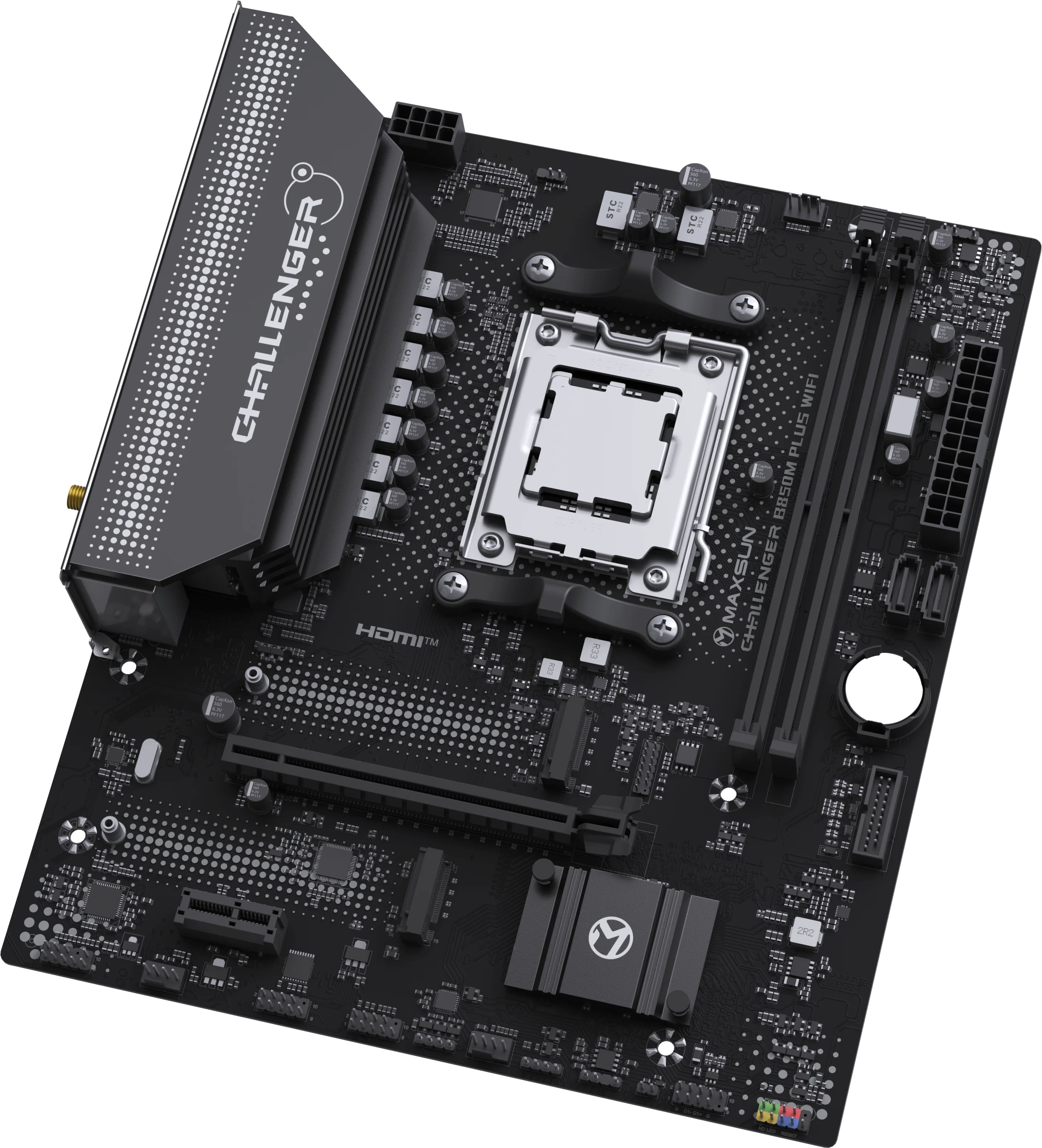

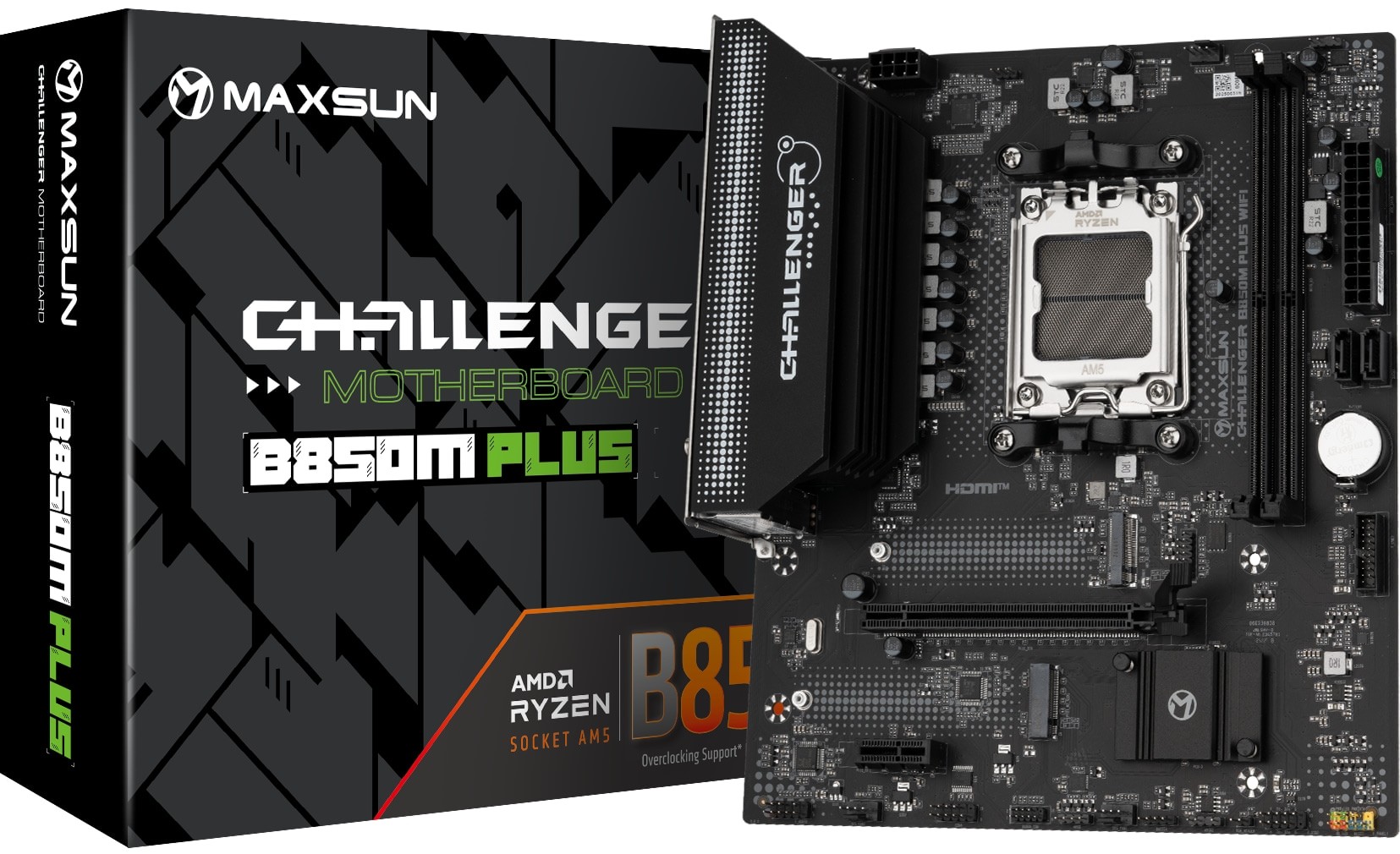

MAXSUN Challenger B850M PLUS WIFI AMD B850 Ryzen Socket AM5 Micro-ATX Desktop Motherboard

More Views

Please note:
Images are for illustrative purposes only.

MAXSUN Challenger B850M PLUS WIFI AMD B850 Ryzen Socket AM5 Micro-ATX Desktop Motherboard

Product ID: 51661

✅ Please note: There are optional configurations available below. Simply click on an option to include it with your purchase.

WiFi & Bluetooth Adapter (Optional):
ASUS WiFi 7 Tri-Band PCIe Wireless Adapter

R 549.00
- View

In stock with Wootware

Lead time before dispatch; 1 - 2 business days

Be the first to review this product

- Micro-ATX Form Factor
- AMD B850 Chipset
- Socket AM5 Supports Ryzen 7000, 8000 & 9000 Series Processors
- 2x DDR5 DIMM Slots, Supports Up to 128GB (2x64GB)
- Supports Up to DDR5-8000 (OC)
- Supports AMD EXPO & Intel XMP 3.0 Modules
- 1x PCIe 5.0 x16 Slot (x16 Physical)
- 1x PCIe 3.0 x1 Slot (x1 Physical)
- 1x M.2 2280 PCIe 5.0 x4 NVMe SSD Slot
- 1x M.2 2280 PCIe 4.0 x4 NVMe SSD Slot
- 2x SATA 3.0 Ports
- 4x USB 5Gbps Type-A Port
- 2x USB 2.0 Type-A Ports
- 1x HDMI 1.4 Port, 1x DisplayPort 1.2 Port
- 3x 3.5mm Audio Jacks
- 2x Antenna Connectors
- Realtek Gigabit Ethernet RJ-45 LAN Port
- Realtek WiFi 6E Tri-Band Adapter, Bluetooth 5.2
- Realtek ALC897 High-Definition Audio Codec
- 6+2+1 Dual Power Phase with Dr.Mos
- MAXSUN RGB Control Software
- Supports Windows 11
- 3 Year Warranty

Please note: pricing visible is already subject to a 2% discount applicable only to EFT payments.

R2,999.00

R2,199.00

Save: R 800!

Qty:

Add to Wishlist

Product Description
Additional Information
Reviews (0)
Questions (0)

Product Description

SPECIFICATIONS
Brand	MAXSUN
Series	Challenger Series
Model	Challenger B850M PLUS WIFI
CPU Support	Supports Ryzen 7000, 8000, 9000-Series Processors
Chipset	AMD B850 Chipset
Memory Support
AMD B850 Chipset	2× DIMM DDR5 slots, up to 128GB total capacity
	Supports dual-channel memory architecture
	Supports AMD EXPO memory overclocking
	Supported frequencies:
	4800 / 5200 / 5600(OC) / 6000(OC) / 6400(OC) / 6800(OC) / 7000(OC) / 7200(OC) / 7600(OC) / 7800(OC) / 8000(OC) MHz
Video
DisplayPort	1x DisplayPort 1.2 Port, supporting a maximum resolution of 4K @ 60 Hz, supports HDCP & HDR
HDMI	1x HDMI 1.4b Port, supporting a maximum resolution of 4K @ 30 Hz, supports HDCP
HDMI	Integrated graphics required. Actual support may vary by CPU.
Expansion Slots
CPU Direct	1x PCIe 5.0 x16 Slot (x16 Physical) (PCIE1)
AMD B850 Chipset	1x PCIe 3.0 x4 Slot (x16 Physical) (PCIE2)
Slot Configurations	PCIE1 with Ryzen 8000 Phoenix 1 Processors support PCIe 4.0 x8 mode
Slot Configurations	PCIE1 with Ryzen 8000 Phoenix 2 Processors support PCIe 4.0 x4 mode
Storage
CPU Direct	M.2_A slot (Key M): supports PCIe 5.0 x4/x2 mode, 2280 length
AMD B850 Chipset	M.2_B slot (Key M): supports PCIe 4.0 x2 mode, 2280 length
AMD B850 Chipset	2x SATA 6Gbps connectors
Storage Configurations	M.2_A with Ryzen 8000 Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
Storage Configurations	M.2_A with Ryzen 8000 Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs
Networking
LAN	Realtek RTL8111M Gigabit Ethernet RJ-45 LAN Port
WiFi	Realtek RTL8852BE WiFi 6 Dual-Band Adapter
Bluetooth	Bluetooth 5.2
Audio
Codec	Realtek ALC897 High-Definition Audio Codec
Codec	Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
Connectivity
Ports	4x USB 5Gbps Type-A Port
	2x USB 2.0 Type-A Ports
	1x HDMI 1.4 Port
	1x DisplayPort 1.2 Port
	3x 3.5mm Audio Jacks
	2x Antenna Connectors
	1x Realtek Gigabit Ethernet RJ-45 LAN Port
Buttons	N/A
General
Internal Connectors	1× 24-pin ATX power connector
	2× 8-pin 12V CPU power connectors
	1× 4-pin CPU_FAN header
	1× 4-pin PUMP header
	2× 4-pin SYS_FAN headers
	2× 3-pin 5V ARGB headers
	1× USB 5G 19-pin header (supports 2 additional USB 5G ports)
	2× USB 2.0 9-pin headers (support 4 additional USB 2.0 ports)
LEDs	N/A
I/O Controller	N/A
BIOS	1x 256 Mbit flash
BIOS	Use of licensed AMI UEFI BIOS
Form Factor	Micro-ATX Form Factor, 245 x 210 mm (H x W)
Operating System Support	Windows 11 64-bit
Warranty Information
Warranty	3 Year Warranty
