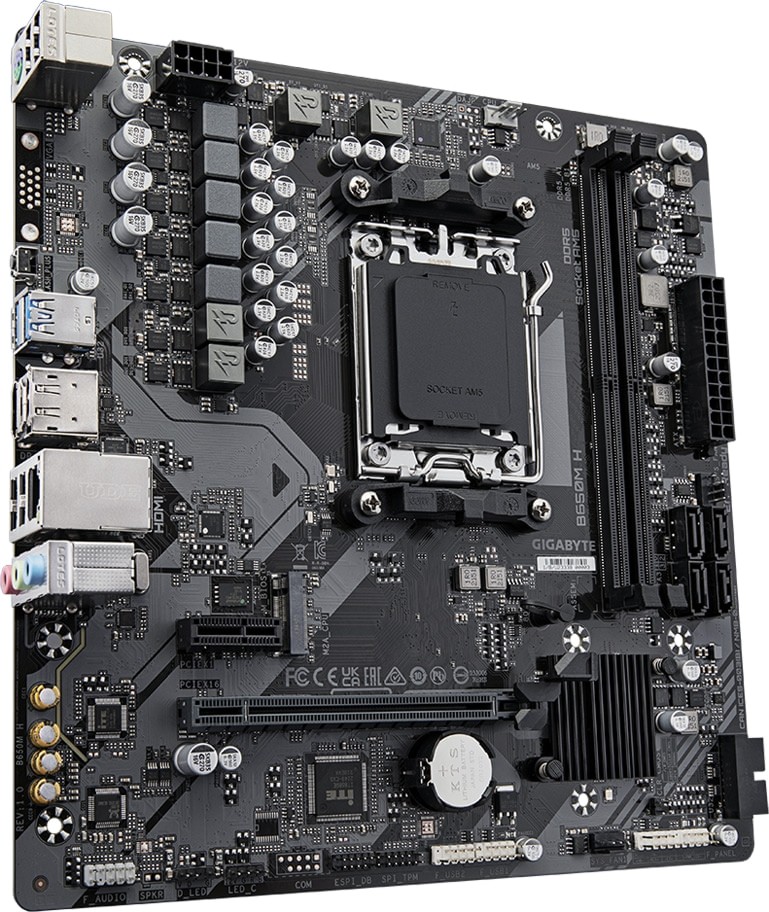

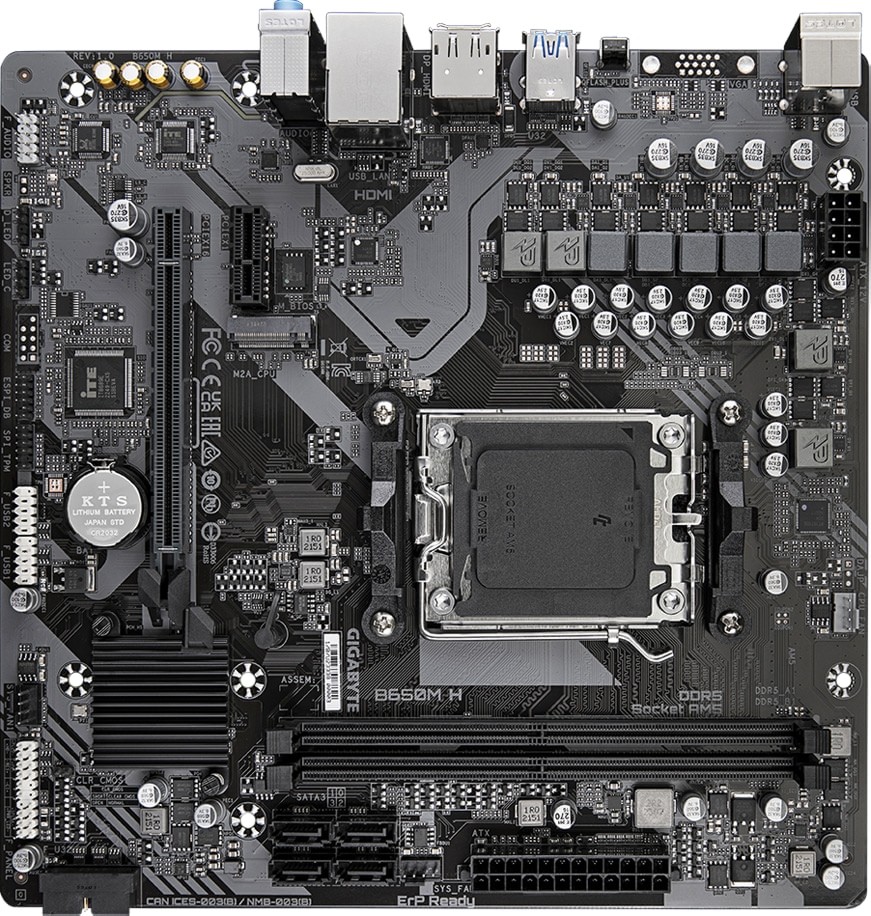

Gigabyte B650M H AMD B650 Ryzen Socket AM5 Micro-ATX Desktop Motherboard

More Views

Please note:
Images are for illustrative purposes only.

Gigabyte B650M H AMD B650 Ryzen Socket AM5 Micro-ATX Desktop Motherboard

Product ID: 47999

In stock with Supplier

Lead time before dispatch; 2 - 5 business days
Limited stock with Supplier

Be the first to review this product

- Micro-ATX Form Factor
- AMD B650 Chipset
- Socket AM5
- Supports Ryzen 7000,8000, 9000-Series Processors
- Q-Flash Plus Supports Future Processors
- 2x DDR5 DIMM Slots, Supports Up To 128GB
- Supports DDR5-6400 (OC)
- Supports AMD EXPO DDR5 Modules
- 1x PCIe 4.0 x16 Slot (x16 Physical)
- 1x PCIe 3.0 X1 Slot (x1 Physical)
- 1x M.2 2580/2280 PCIe 4.0 x4 NVMe SSD Slot
- 4x SATA 3.0 Ports
- 2x USB 5Gbps Type-A Ports
- 4x USB 2.0 Type-A Ports
- 1x HDMI 2.1 Port (TMDS)
- 1x DisplayPort 1.4 Port
- 3x 3.5mm Audio Jacks (Line In, Line Out, Microphone)
- 1x PS/2 Combo Port (Keyboard/Mouse)
- Realtek Gigabit Ethernet RJ-45 LAN Port
- Realtek High-Definition Codec
- PCIe EZ-Latch Quick-Release Mechanism
- Gigabyte Smart Fan 6 Technology
- Gigabyte RGB Fusion
- Gigabyte Control Center Utility
- Supports Windows 11 64-bit
- 3 Year Warranty

157 Products

Please note: pricing visible is already subject to a 2% discount applicable only to EFT payments.

R2,286.00

Qty:

Add to Wishlist

Product Description
Additional Information
Reviews (0)
Questions (0)

Product Description

SPECIFICATIONS
Brand	Gigabyte
Series	Ultra Durable Motherboard Series
Model	B650M H V1.0/1.2/1.3
CPU Support	Supports Ryzen 7000,8000, 9000-Series Processors
Chipset	AMD B650 Chipset
Memory Support
AMD B650 Chipset	Support for DDR5 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s memory modules
	2x DDR5 DIMM sockets supporting up to 128 GB (64 GB single DIMM capacity) of system memory
	Dual channel memory architecture
	Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
	Support for AMD EXtended Profiles for Overclocking (AMD EXPO) and Extreme Memory Profile (XMP) memory modules
Video
DisplayPort	1x DisplayPort 1.4 Port, supporting a maximum resolution of 3840x2160@ 144Hz, supports HDCP, HDR
HDMI	1x HDMI 2.1 Port (TMDS), supporting a maximum resolution of 4096x2160@ 60Hz, supports HDCP, HDR
HDMI	Integrated graphics required. Actual support may vary by CPU.
Expansion Slots
CPU Direct	1x PCIe 4.0 x16 Electrical, x16 Physical Slot
AMD B650 Chipset	1x PCIe 3.0 x1 Electrical, x1 Physical Slot
Slot Configurations	PCIEX16 with Ryzen 8000 Phoenix 1 Processors support PCIe 4.0 x8 mode
Slot Configurations	PCIEX16 with Ryzen 8000 Phoenix 2 Processors support PCIe 4.0 x4 mode
Storage
CPU Direct	1x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2580/2280 SSDs
AMD B650 Chipset	4x SATA 6Gbps connectors
AMD B650 Chipset	RAID 0, RAID 1, and RAID 10 support for SATA storage devices
Storage Configurations	M2A_CPU with Ryzen 8000 Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
Storage Configurations	M2A_CPU with Ryzen 8000 Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs
Networking
LAN	Realtek Gigabit LAN 10/100/1000Mbps
WiFi	N/A
Bluetooth	N/A
Audio
Codec	Realtek High-Definition Audio Codec
Codec	Support for 7.1 Surround with front-panel jack retasking

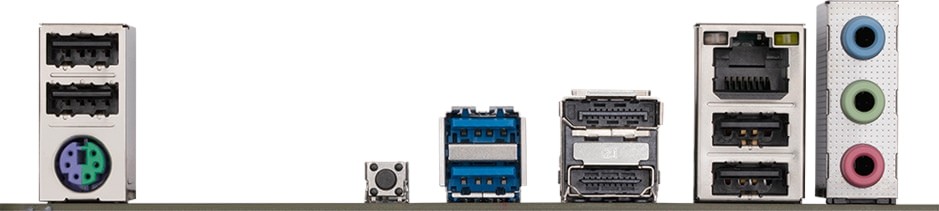

Connectivity
Ports	2x USB 5Gbps Type-A Ports
	4x USB 2.0 Type-A Ports
	1x HDMI 2.1 Port (TMDS)
	1x DisplayPort 1.4 Port
	3x 3.5mm Audio Jacks (Line In, Line Out, Microphone)
	1x PS/2 Combo Port (Keyboard/Mouse)
Buttons	1x Q-Flash Plus button
General
Internal Connectors	1x 24-pin ATX main power connector
	1x 8-pin ATX 12V power connector
	1x CPU fan header
	2x system fan headers
	1x addressable LED strip header
	1x RGB LED strip header
	1x M.2 Socket 3 connector
	4x SATA 6Gb/s connectors
	1x front panel header
	1x front panel audio header
	1x USB 3.2 Gen 1 header
	2x USB 2.0/1.1 headers
	1x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 / GC-TPM2.0 SPI V2 module only)
	1x Clear CMOS jumper
LEDs	N/A
I/O Controller	iTE I/O Controller Chip
BIOS	1x 256 Mbit flash
	Use of licensed AMI UEFI BIOS
	PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor	Micro-ATX Form Factor, 230 x 225mm (H x W)
Operating System Support	Windows 10 64-bit
Operating System Support	Windows 11 64-bit (recommended)
Boxed Accessories	User's Manual
	2x SATA cables
	1x I/O Shield
Warranty Information
Warranty	3 Year Warranty
