ASRock B860M-X WiFi Intel B860 LGA 1851 Arrow Lake Micro-ATX Desktop Motherboard

More Views

Please note:
Images are for illustrative purposes only.

ASRock B860M-X WiFi Intel B860 LGA 1851 Arrow Lake Micro-ATX Desktop Motherboard

Product ID: 51615

Be the first to review this product

- Micro-ATX Form Factor
- Intel B860 Chipset, Socket LGA 1851
- Supports Intel Core Ultra Series 2 Processors
- 2x DDR5 DIMM Slots, Supports Up To 128GB (2x64GB)
- Supports Up to DDR5-9066 CU-DIMM (OC)
- Supports Intel XMP 3.0 Memory Modules
- 1x PCIe 4.0 x16 Slot (x16 Physical)
- 1x PCIe 4.0 x4 Slot (x4 Physical)
- 1x PCIe 4.0 x1 Slot (x1 Physical)
- 1x M.2 2280 PCIe 5.0 x4 NVMe SSD Slot
- 2x M.2 2280 PCIe 4.0 x4 NVMe SSD Slots
- 4x SATA 3.0 Ports
- Supports Front-Panel USB 5Gbps Type-C Port
- 1x USB 20Gbps Type-C Port
- 3x USB 5Gbps Type-A Port
- 2x USB 2.0 Type-A Port
- 1x HDMI 2.1 (FRL 8G), 1x DisplayPort 1.4 Port
- 3x 3.5mm Audio Jacks
- 2x WiFi Antenna Jacks
- Realtek 2.5 Gigabit Ethernet RJ-45 LAN
- WiFi 6E Tri-Band Adapter, Bluetooth 5.3
- Realtek ALC897 High Definition Audio CODEC
- 7+1+1+1+1 Power Phase Solution
- Post Debug LEDs
- ASRock PolyChrome RGB Sync
- ASRock APP Shop Utility
- Supports Windows 11 64-bit
- 3 Year Warranty

14 Products

Out of Stock

Add to Wishlist

Customers Who Viewed This Product Purchased

Gigabyte B860M D3HP Intel B860 LGA 1851 Arrow Lake Micro-ATX Desk...

In stock with Supplier

R2,595.00

1 Review(s)

R4,369.00

Save: R 104!

Gigabyte B860 EAGLE WIFI6E Intel B860 LGA 1851 Arrow Lake ATX Des...

In stock with Supplier

R4,066.00

Gigabyte B860M AORUS ELITE WIFI6E ICE Intel B860 LGA 1851 Arrow L...

In stock with Supplier

R4,831.00

Product Description
Additional Information
Reviews (0)
Questions (0)

Product Description

SPECIFICATIONS
Brand	ASRock
Series	X WiFi Motherboards
Model	B860M-X WIFI
CPU Support	LGA 1851 Supports Intel Core Ultra Processors (Series 2)
Chipset	Intel B860 Express
Memory Support
Intel Core Ultra Processors (Series 2)	Dual Channel DDR5 Memory Technology
	2x DDR5 DIMM Slots
	Supports DDR5 non-ECC, un-buffered memory up to 9066 (OC)*
	Supports Clocked Unbuffered DIMM (CUDIMM)
	Max. capacity of system memory: 128GB
	Supports Intel Extreme Memory Profile (XMP) 3.0x
Video
DisplayPort	1x DisplayPort, supporting a maximum resolution of 8K @ 60 Hz, Support for DisplayPort 1.4 with DSC and HDCP 2.3
HDMI	1x HDMI 2.1 (TMDS/FRL 8G) port, supporting a maximum resolution of 4K @ 120Hz, Support for FRL, HDR and HDCP 2.3
HDMI	Integrated Intel graphics required. Actual support may vary by CPU.
Expansion Slots
CPU Direct	1x PCIe 4.0 x16 Physical, x16 Electrical Slot (PCIE1)
Intel B860 Chipset	1x PCIe 4.0 x4 Physical, x4 Electrical Slot (PCIE3)
Intel B860 Chipset	1x PCIe 4.0 x1 Physical, x1 Electrical Slot (PCIE2)
Storage
CPU Direct	1x Blazing M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen5x4 (128 Gb/s) mode
Intel B860 Chipset	1x Hyper M.2 Socket (M2_2, Key M), supports type 2230/2242/2260/2280 PCIe Gen4x4 (64 Gb/s) mode
	4x SATA 6GBps Ports
	Support for SATA RAID 0, RAID 1, RAID 5, and RAID 10
	Supports Intel Volume Management Device (VMD), Supports NVMe SSD as boot disks
Networking
LAN	Realtek Dragon RTL8125BG 2.5 Gigabit LAN Adapter
WiFi	WiFi 6E Tri-Band Adapter
Bluetooth	Bluetooth 5.3
Audio
Codec	Realtek ALC897 Codec
	7.1-Channel USB High Performance Audio
	Supports front-panel jack retasking

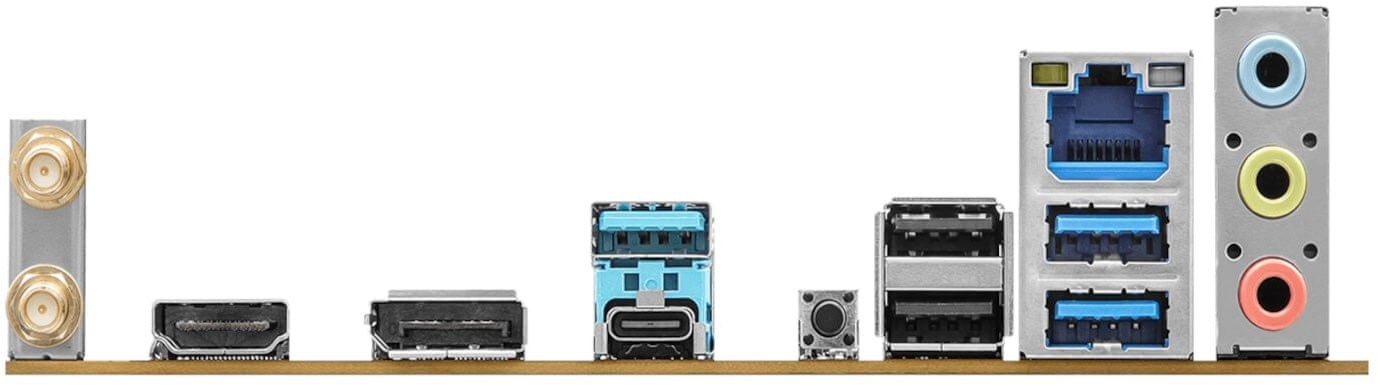

Connectivity
Ports	1x USB 20Gbps Type-C Port
	3x USB 5Gbps Type-A Port
	2x USB 2.0 Type-A Ports
	1x HDMI 2.1 (FRL 8G)
	1x DisplayPort 1.4 Port
	3x 3.5mm Audio Jacks
	2x WiFi Antenna Jacks
	1x Realtek 2.5 Gigabit Ethernet RJ-45 LAN

Buttons	Flash BIOS Button for BIOS Flashback
General

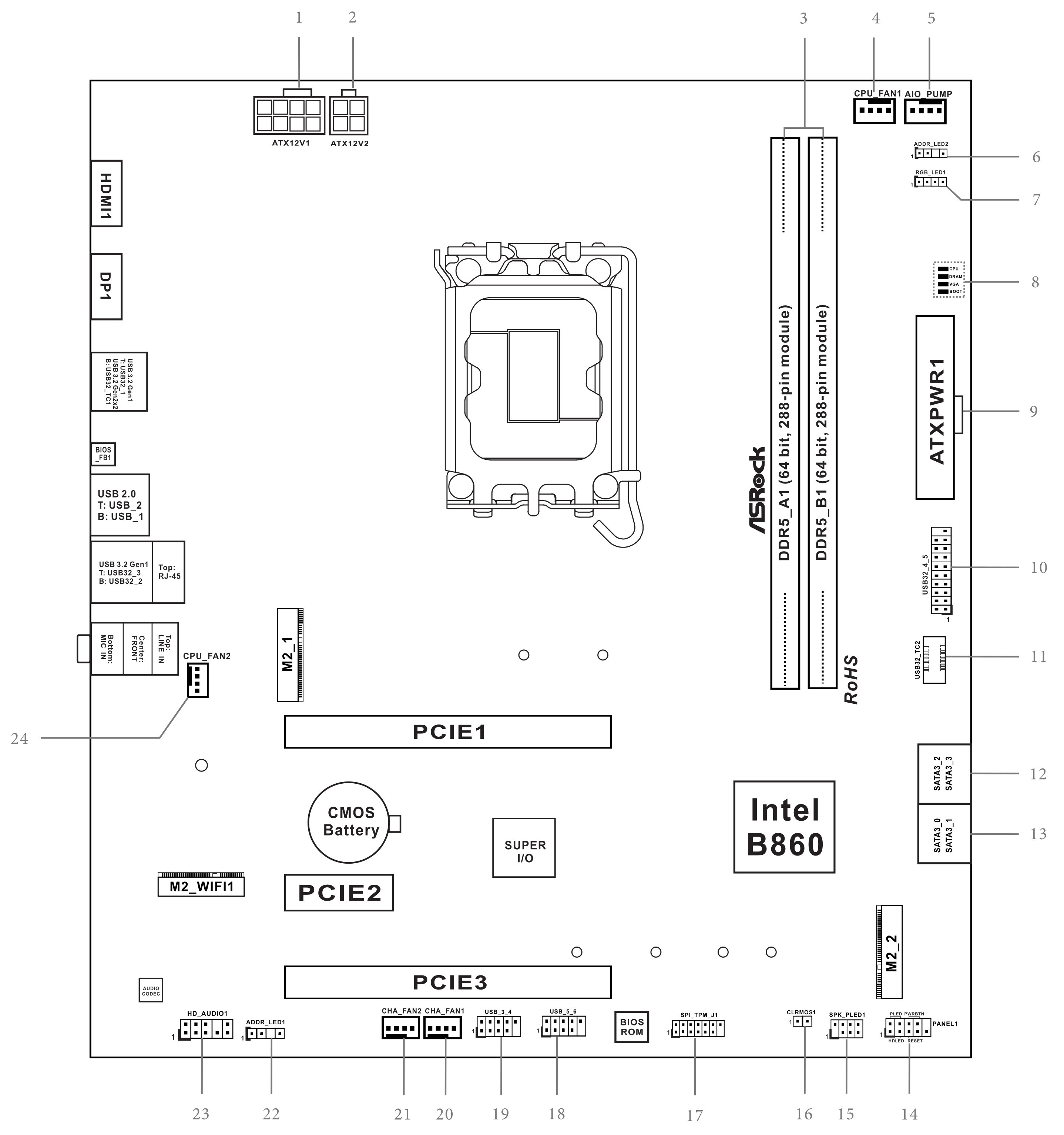

Internal Connectors	1x SPI TPM Header
	1x Power LED and Speaker Header
	1x RGB LED Header
	2x Addressable LED Headers
	2x CPU Fan Connector (4-pin) (Smart Fan Speed Control)
	2x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control)
	1x AIO Pump Fan Connector (4-pin) (Smart Fan Speed Control)
	1x 24 pin ATX Power Connector
	1x 8 pin 12V Power Connector (Hi-Density Power Connector)
	1x 4 pin 12V Power Connector (Hi-Density Power Connector)
	1x Front Panel Audio Connector
	2x USB 2.0 Headers (Support 4 USB 2.0 ports)
	1x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)
	1x Front Panel Type C USB 3.2 Gen1 Header
I/O Controller	N/A
LED Displays	4x Debug LEDs (BOOT, CPU, VGA, MEM)
BIOS	1x 256 Mb flash
BIOS	UEFI AMI BIOS
Form Factor	Micro-ATX Form Factor, 244 x 218mm (H x W)
Operating System Support	Windows 11 64-bit

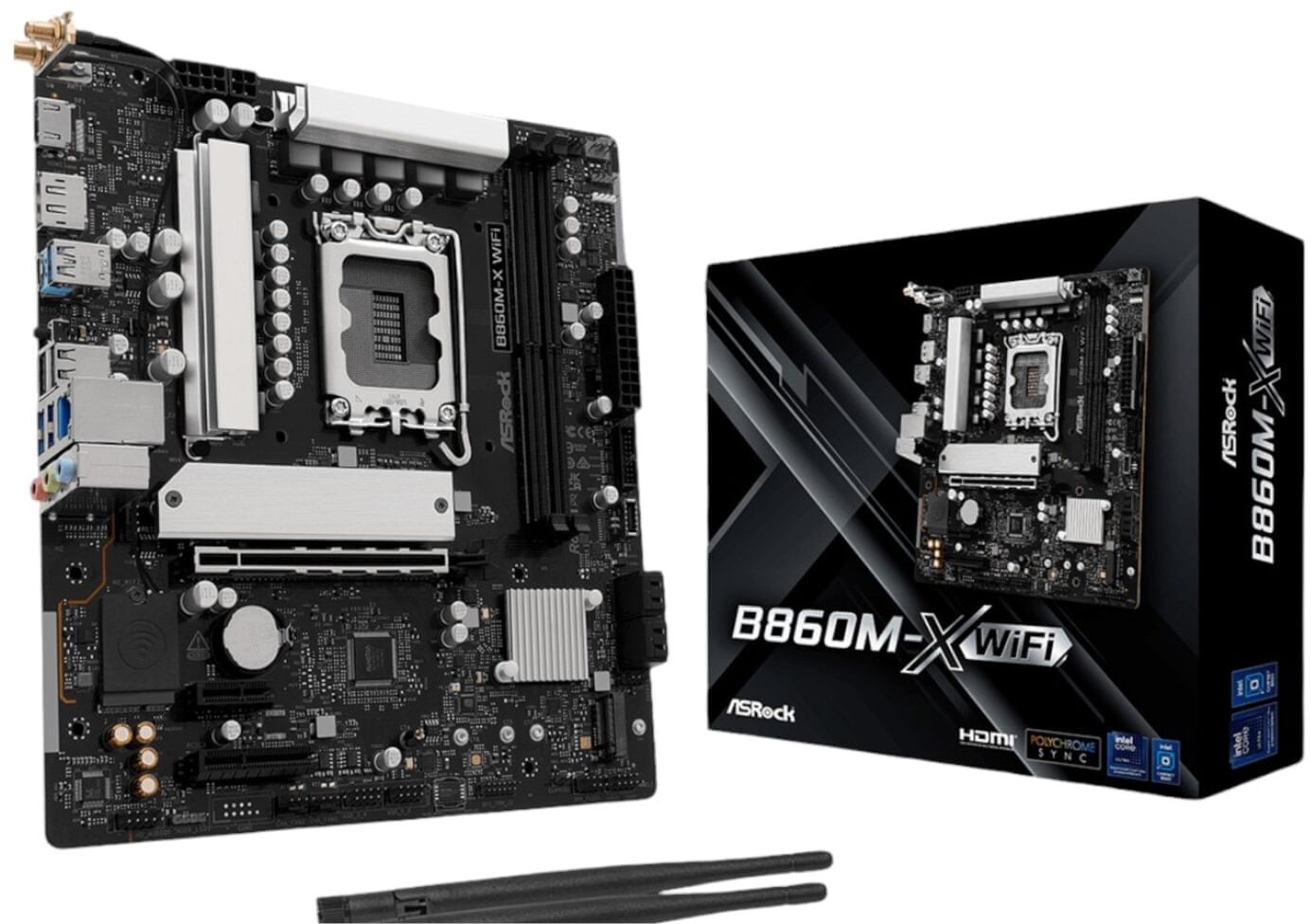

Boxed Accessories	1x I/O Shield
	2x SATA Data Cables
	2x ASRock WiFi 2.4/5/6 GHz Antennas
	1x Screw for M.2 Socket
	1x Standoff for M.2 Socket
Warranty Information
Warranty	3 Year Warranty
