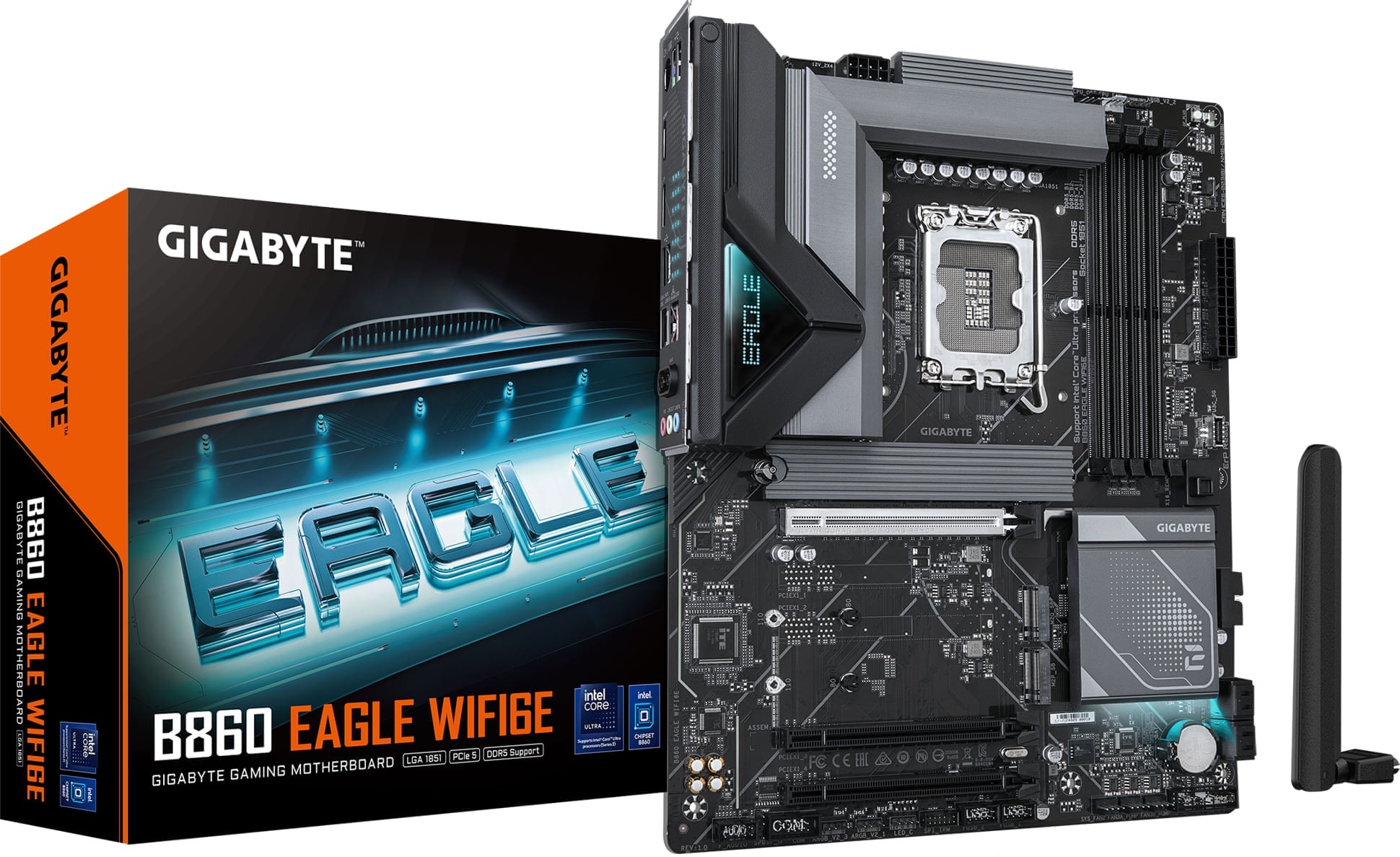

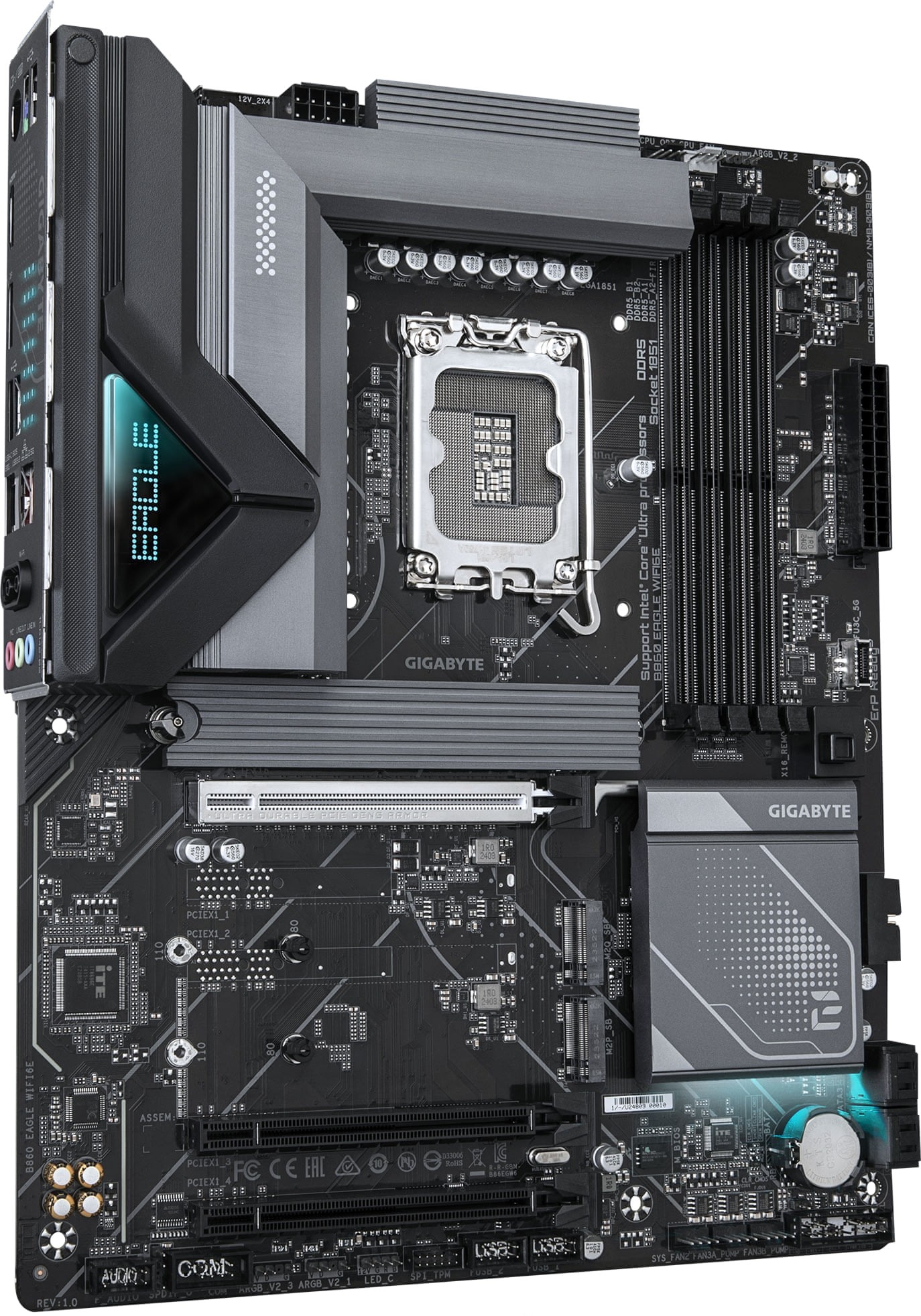

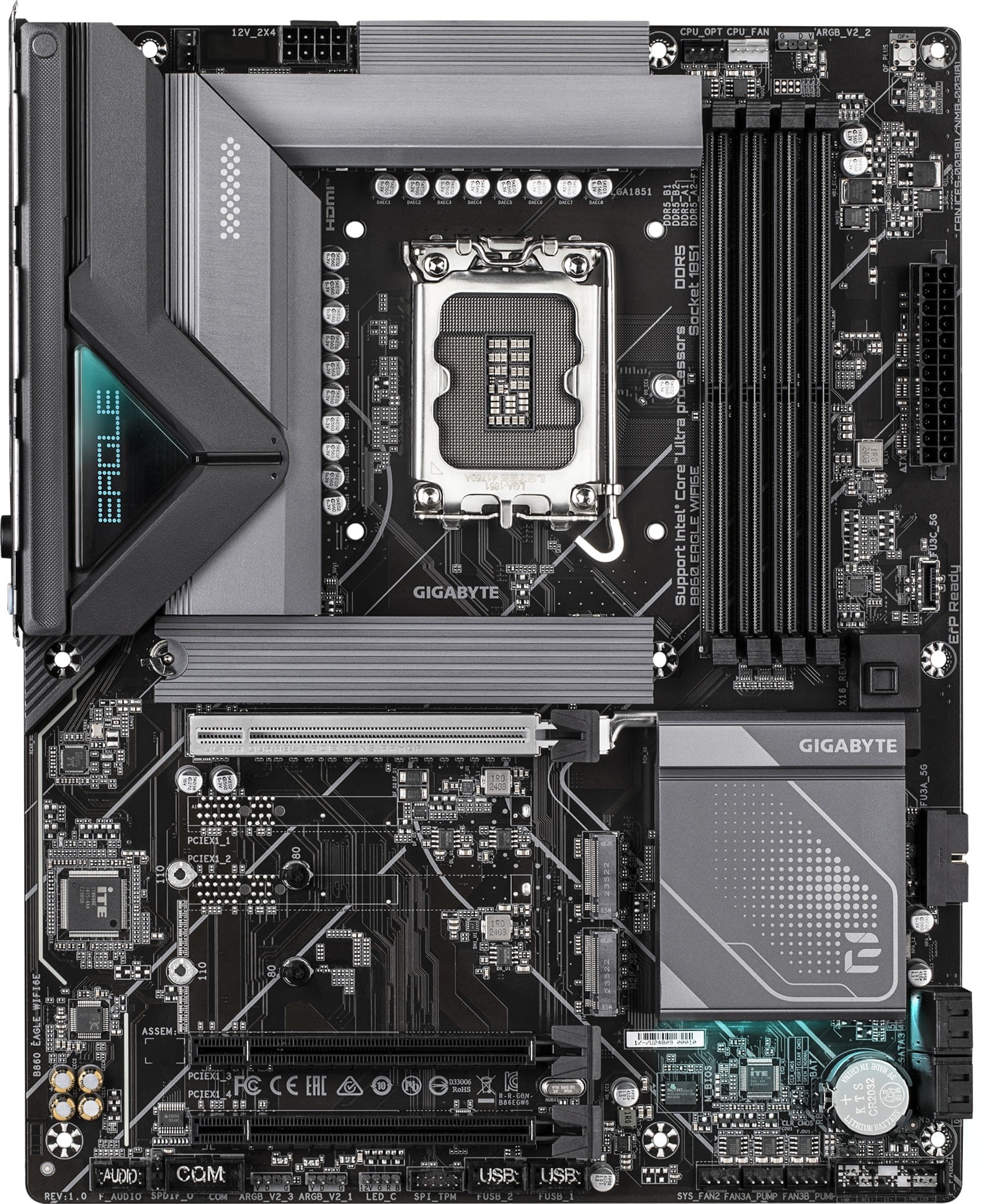

Gigabyte B860 EAGLE WIFI6E Intel B860 LGA 1851 Arrow Lake ATX Desktop Motherboard

More Views

Please note:
Images are for illustrative purposes only.

Gigabyte B860 EAGLE WIFI6E Intel B860 LGA 1851 Arrow Lake ATX Desktop Motherboard

Product ID: 49764

In stock with Supplier

Lead time before dispatch; 2 - 5 business days

Be the first to review this product

- ATX Form Factor
- Intel B860 Chipset, Socket LGA 1851
- Supports Intel Core Ultra Series 2 Processors
- 4x DDR5 DIMM Slots, Supports Up To 256GB (4x64GB)
- Supports Up to DDR5-9066 (OC)
- Supports CUDIMM DDR5 Modules
- Supports Intel XMP 3.0 Memory Modules
- 1x PCIe 5.0 x16 Slot (x16 Physical)
- 2x PCIe 4.0 x1 Slots (x16 Physical)
- 1x M.2 25110/2580 PCIe 5.0 x4 NVMe SSD Slot
- 2x M.2 25110/2580 PCIe 4.0 x4 NVMe SSD Slots
- 4x SATA 3.0 Ports
- Supports Front-Panel USB 10Gbps Type-C Port
- 1x USB 20Gbps Type-C Port
- 1x USB 10Gbps Type-A Port
- 4x USB 2.0 Type-A Ports
- 1x HDMI 2.1 (TMDS), 1x DisplayPort 2.1 Port
- 3x 3.5mm Audio Jacks
- 2x Antenna Connectors
- Intel 2.5 Gigabit Ethernet RJ-45 LAN
- WiFi 6E Tri-Band Adapter, Bluetooth 5.3
- Realtek ALC892 High Definition Audio CODEC
- 12+1+2 Digital VRM Solution
- Gigabyte PCIe EZ-Latch Plus
- Gigabyte Q-Flash Plus BIOS Button
- ASUS Q-LED Diagnostic LEDs
- Gigabyte RGB Fusion
- Gigabyte Control Center App
- Supports Windows 11 64-Bit
- 3 Year Warranty

157 Products

Please note: pricing visible is already subject to a 2% discount applicable only to EFT payments.

R4,066.00

Qty:

Add to Wishlist

Product Description
Additional Information
Reviews (0)
Questions (0)

Product Description

SPECIFICATIONS
Brand	Gigabyte
Series	EAGLE Series
Model	B860 EAGLE WIFI6E (B860 EAGLE WIFI6E)
CPU Support	Intel Socket LGA 1851 for Core Ultra Series Processors (Series 2)
Chipset	Intel B860 Express
Memory Support
Intel Core Ultra Series Processors (Series 2)	Support for DDR5 9066(O.C)/8800(O.C) /8600(O.C) / 8400(O.C) /8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) /6400/5600 MT/s memory modules
	4x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity)of system memory
	Dual channel memory architecture
	Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
	Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
	Support for Extreme Memory Profile (XMP) memory modules
Video
HDMI	1x HDMI 2.1 TMDS port, supporting a maximum resolution of UHD 4K 3840x2160 @ 60Hz, Support for HDCP 2.3, and HDR
DisplayPort	1x DisplayPort 2.1 port, supporting a maximum resolution of 8K @ 30Hz, Support for HDCP 2.3, and HDR
DisplayPort	Integrated graphics required. Actual support may vary by CPU.
Expansion Slots
CPU Direct	1x PCIe 5.0 x16 Physical, x16 Electrical slot
Intel B860 Chipset	2x PCIe 4.0 x16 Physical, x1 Electrical slots
Storage
CPU Direct	1x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 5.0 x4/x2 SSD support) (M2A_CPU)
Intel B860 Chipset	2x M.2 connectors (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB, M2P_SB)
	4x SATA 6Gb/s ports
	Intel Rapid Storage Technology supports SATA RAID 0/1/5/10.
Networking
LAN	Intel 2.5 Gigabit LAN 10/100/1000/2500Mbps
WiFi	WiFi 6E 2x2 MIMO Tri-Band Adapter
Bluetooth	Bluetooth 5.3
Audio
Codec	Realtek 7.1 Surround Sound CODEC
Codec	Supports Jack-detection, Multi-streaming, Front Panel Jack-retasking, Impedence sense for front-panel headphones

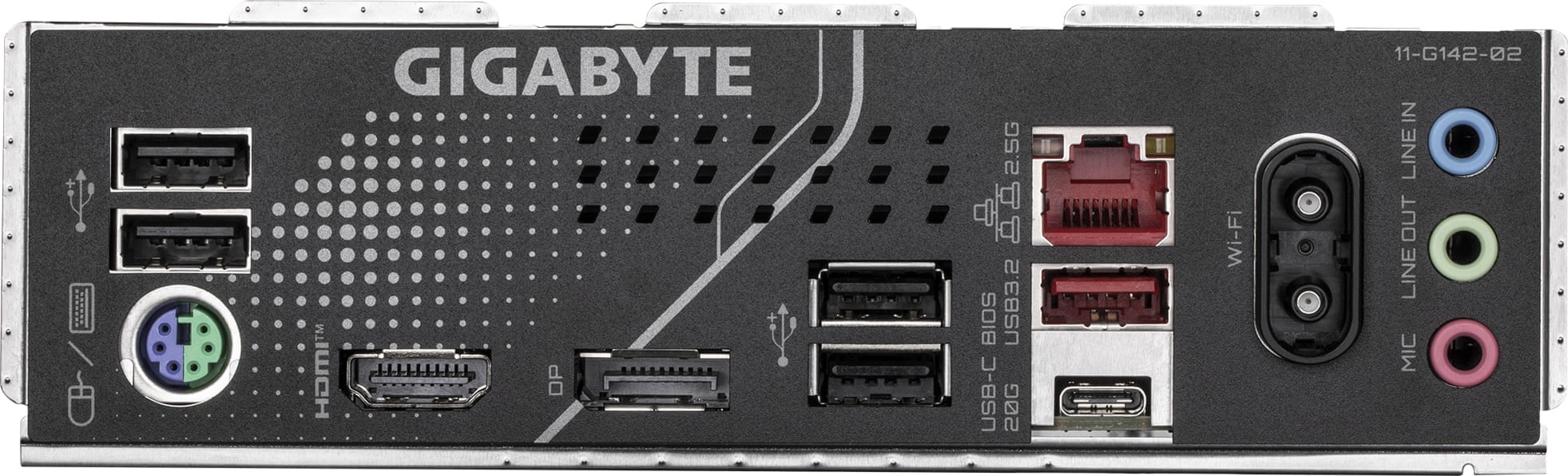

Connectivity
Ports	1x USB 20Gbps Type-C Port
	1x USB 10Gbps Type-A Port
	1x PS/2 Combo Port
	4x USB 2.0 Type-A Ports
	1x HDMI 2.1 (TMDS)
	1x DisplayPort 2.1 Port
	3x 3.5mm Audio Jacks
	2x Antenna Connectors
	1x Intel 2.5 Gigabit Ethernet RJ-45 LAN
General

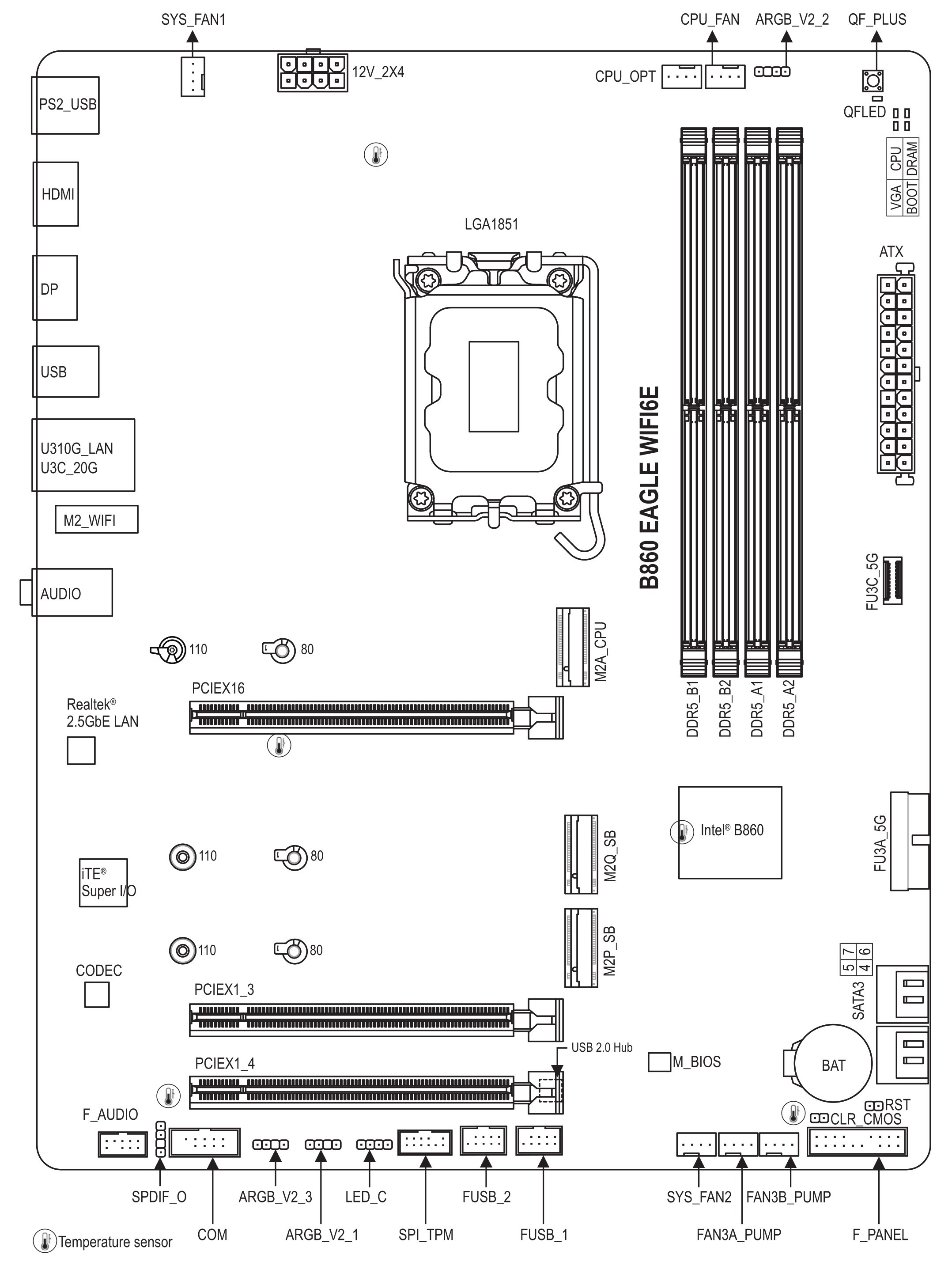

Internal Connectors	1x 24-pin ATX main power connector
	1x 8-pin ATX 12V power connector
	1x CPU fan header
	1x CPU fan/water cooling pump header
	2x system fan headers
	2x system fan/water cooling pump headers
	3x addressable RGB Gen2 LED strip headers
	1x RGB LED strip header
	3x M.2 Socket 3 connectors
	4x SATA 6Gb/s connectors
	1x front panel header
	1x front panel audio header
	1x S/PDIF Out header
	1x USB Type-C header, with USB 3.2 Gen 1 support
	1x USB 3.2 Gen 1 header
	2x USB 2.0/1.1 headers
	1x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
	1x serial port header
	1x Q-Flash Plus button
	1x reset jumper
	1x Clear CMOS jumper
Buttons	1x Q-Flash Plus Button
LED Displays	Gigabyte EZ-Debug Diagnostic LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
BIOS	256Mb Flash ROM, UEFI AMI BIOS
Remote Management	WOL by PME, PXE
Form Factor	ATX Form Factor, 305 x 244 mm (H x W)
Operating System Support	Windows 11 64-bit
Box Contents	User's Manual
	Quick Installation Guide
	One antenna
	Two SATA cables
	One pack of M.2 thick/thin rubber pads
Warranty Information
Warranty	3 Year Warranty
