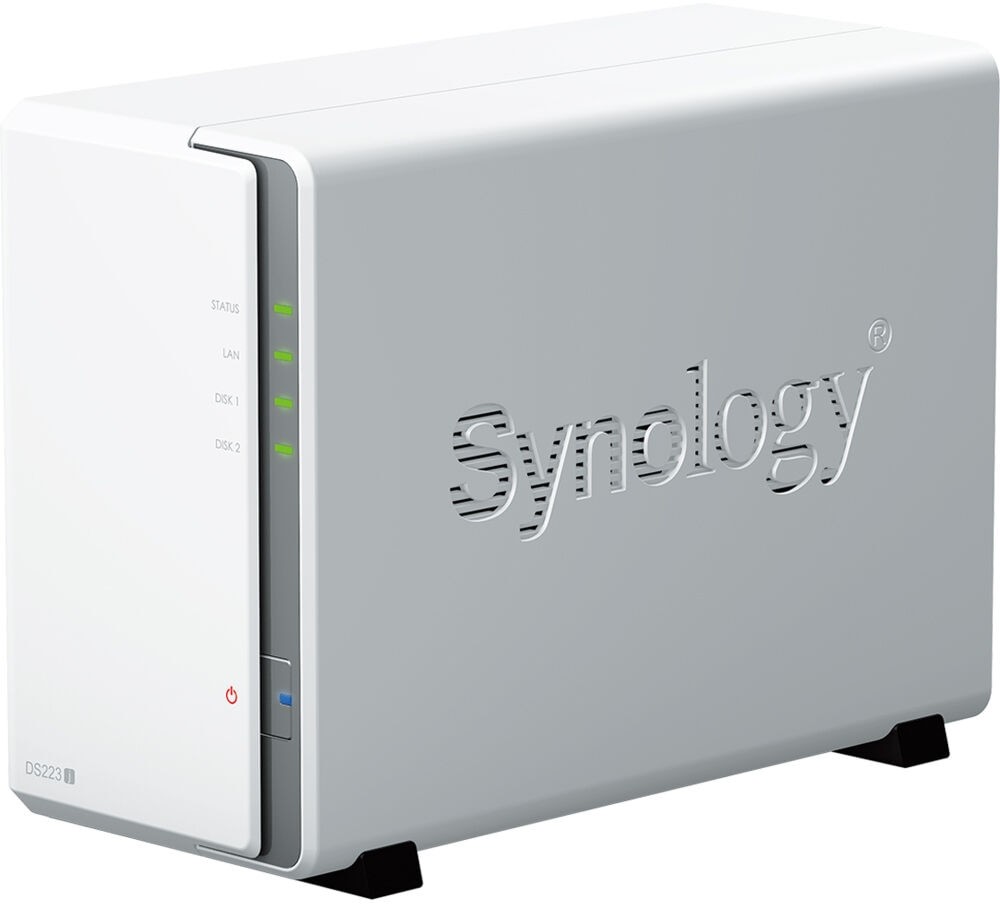

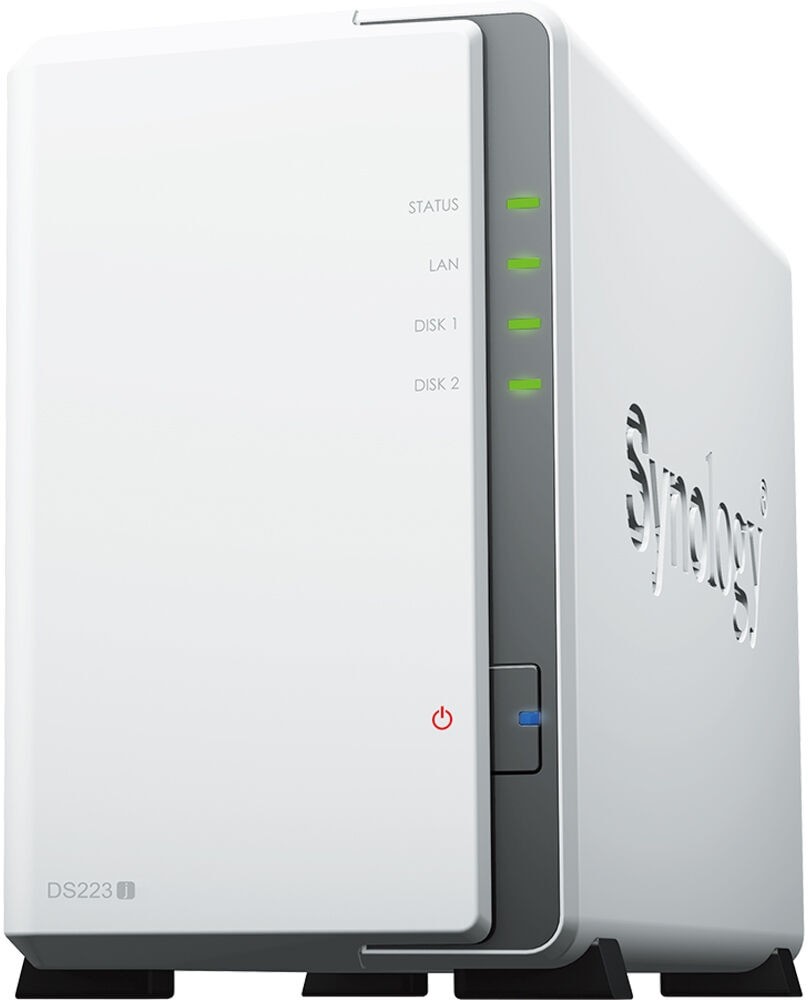

Synology DiskStation DS223j 2-Bay SATA3 6.0 Gbps Realtek RTD1619B 1.70 GHz Quad Core 1GB DDR4 NAS Enclosure

More Views

Please note:
Images are for illustrative purposes only.

Synology DiskStation DS223j 2-Bay SATA3 6.0 Gbps Realtek RTD1619B 1.70 GHz Quad Core 1GB DDR4 NAS Enclosure

Product ID: 44193

In stock with Supplier

Lead time before dispatch; 1 - 2 business days

Be the first to review this product

- DiskStation DS223j
- 4-Core 1.7 GHz Realtek RTD1619B 64-Bit CPU
- 1 GB DDR4 Non-ECC System Memory
- 2x 3.5" SATA HDD Drive Bays
- Optional Support for 2.5" SATA SSD
- 1x RJ-45 1GbE LAN Port, 2x USB 3.2 Gen 1 Port
- Internal Drives: Btrfs, EXT4
- External Drives: Btrfs, EXT4, EXT3, FAT, NTFS, HFS+, exFAT
- System Fan: 92 mm x 92 mm
- Noise Level: 18.2 dB(A)
- Power Consumption: 16.31 W (Access)
- Supported Browsers: Google Chrome, Firefox, Microsoft Edge, Safari
- 3 Year Warranty

20 Products

Please note: pricing visible is already subject to a 2% discount applicable only to EFT payments.

R4,094.00

Qty:

Add to Wishlist

Product Description
Additional Information
Reviews (0)
Questions (0)

Product Description

SPECIFICATIONS
Brand	Synology
Series	DiskStation
Model	DiskStation DS223j
Hardware Specifications
CPU
CPU Model	Realtek RTD1619B
CPU Quantity	1
CPU Architecture	64-bit
CPU Frequency	4-core 1.7 GHz
Hardware Encryption Engine	Yes
Memory
System Memory	1 GB DDR4 non-ECC
Storage
Drive Bays	2
Compatible Drive Type	3.5" SATA HDD
Compatible Drive Type	2.5" SATA SSD (with optional 2.5" Disk Holder)
External Ports
RJ-45 1GbE LAN Port	1
USB 3.2 Gen 1 Port*	2
Notes	This device's 1GbE LAN ports have a maximum transmission unit (MTU) size of 1,500 bytes.
Notes	The USB 3.0 standard was renamed to USB 3.2 Gen 1 by the USB Implementers Forum (USB-IF) in 2019.
File System
Internal Drives	Btrfs
Internal Drives	EXT4
External Drives	Btrfs
	EXT4
	EXT3
	FAT
	NTFS
	HFS+
	exFAT
Notes	Btrfs file system is available from DSM 7.2-64570.
Appearance
Size (Height x Width x Depth)	165 mm x 100 mm x 225.5 mm
Weight	0.88 kg
Others
System Fan	92 mm x 92 mm x 1 pcs
Fan Speed Mode	Full-Speed Mode
	Cool Mode
	Quiet Mode
	Low-power Mode
Noise Level*	18.2 dB(A)
Power Supply Unit / Adapter	60 W
AC Input Power Voltage	100V to 240V AC
Power Frequency	50/60 Hz, Single Phase
Power Consumption	16.31 W (Access)
Power Consumption	4 W (HDD Hibernation)
British Thermal Unit	55.62 BTU/hr (Access)
British Thermal Unit	13.64 BTU/hr (HDD Hibernation)
General
Operating Temperature	0°C to 40°C (32°F to 104°F)
Storage Temperature	-20°C to 60°C (-5°F to 140°F)
Relative Humidity	5% to 95% RH
Certification	FCC, CE, BSMI, VCCI, RCM, UKCA, EAC, CCC, KC
Software Specifications
Storage Management
Maximum Single Volume Size	108 TB
Maximum Internal Volume Number	64
Supported RAID Type	Synology Hybrid RAID
	Basic
	JBOD
	RAID 0
	RAID 1
RAID Migration	Basic to RAID 1
Volume Expansion with Larger HDDs	Synology Hybrid RAID
Volume Expansion with Larger HDDs	RAID 1
Volume Expansion by Adding a HDD	Synology Hybrid RAID
Notes	Usable capacity for each volume will be lower than the maximum volume size and is dependent on the filesystem and the amount of system metadata stored.
Notes	Actual maximum storage pool and volume sizes depend on drive sizes used, the number of drive bays available, and the RAID configuration.
File Services
File Protocol	SMB/AFP/NFS/FTP/WebDAV
Maximum Concurrent SMB/AFP/FTP Connections	100
Windows Access Control List (ACL) Integration	Yes
NFS Kerberos Authentication	Yes
Notes	The testing standard was based on the maximum number of concurrent connections supported by this model. During the testing, 25% of the connections were used to transfer files concurrently. The transfer process guaranteed that the connections were not interrupted; the minimum transfer speed was not guaranteed.
Account & Shared Folder
Maximum Local User Accounts	1,024
Maximum Local Groups	256
Maximum Shared Folder	256
Maximum Shared Folder Sync Tasks	4
Hyper Backup
Folder and Package Backup	Yes
Log Center
Syslog Events per Second	200
General Specifications
Networking Protocols	SMB1 (CIFS), SMB2, SMB3, NFSv3, NFSv4, NFSv4.1, NFS Kerberized sessions, iSCSI, HTTP, HTTPs, FTP, SNMP, LDAP, CalDAV
Supported Browsers	Google Chrome
	Firefox
	Microsoft Edge
	Safari
Warranty Information
Warranty	3 Year Warranty

Manufacturer's Site	Visit the manufacturer's website
Product Link	Visit the manufacturer's page for this product
