MAXSUN iCraft X870M WIFI AMD X870 Ryzen Socket AM5 Micro-ATX Desktop Motherboard

More Views

Please note:
Images are for illustrative purposes only.

MAXSUN iCraft X870M WIFI AMD X870 Ryzen Socket AM5 Micro-ATX Desktop Motherboard

Product ID: 53316

In stock with Wootware

Lead time before dispatch; 1 - 2 business days
Limited stock remaining

Be the first to review this product

- Micro-ATX Form Factor
- AMD X870 Chipset, Socket AM5
- Supports AMD Ryzen 7000, 8000 & 9000 Series Processors
- 4x DDR5 DIMM Slots, Supports Up to 192GB (4x48GB)
- Supports Up to DDR5-8400 (OC)
- Supports AMD EXPO Modules
- 1x PCIe 5.0 x16 Slot (x16 Physical)
- 1x M.2 2280 PCIe 5.0 x4 NVMe SSD Slot
- 2x M.2 2280 PCIe 4.0 x2 NVMe SSD Slots
- 2x SATA 3.0 Ports
- Supports Front-Panel USB 10Gbps Type-C Port
- 2x USB 40Gbps Type-C Ports
- 6x USB 5Gbps Type-A Ports
- 2x USB 2.0 Type-A Ports
- 1x HDMI 2.0 Port, 1x DisplayPort 1.4 Port
- 5x 3.5mm Audio Jacks, 1x Optical S/PDIF Audio Port
- 2x WiFi Antenna Connectors
- Realtek 5 Gigabit Ethernet RJ-45 LAN Port
- Mediatek WiFi 7 Tri-Band Adapter, Bluetooth 5.
- Realtek ALC1220 High-Definition Audio Codec
- 16+2+1 Dual Power Phase with Dr.Mos
- 7-Segment BIOS POST Code Debug Display
- MAXSUN PCIe GPU Slot Release Mechanism
- MAXSUN Sync RGB Utility
- Supports Windows 11
- 3 Year Warranty

Please note: pricing visible is already subject to a 2% discount applicable only to EFT payments.

R6,199.00

R4,499.00

Save: R 1,700!

Qty:

Add to Wishlist

Features
Product Description
Additional Information
Reviews (0)
Questions (0)

Features Product Description

SPECIFICATIONS
Brand	MAXSUN
Series	iCraft Series
Model	iCraft X870M WIFI (MS-ICRAFT-X870M)
CPU Support	Supports Ryzen 7000, 8000, 9000-Series Processors
Chipset	AMD X870 Chipset
Memory Support
AMD X870 Chipset	4× DIMM DDR5 slots, up to 192GB total capacity
	Supports dual-channel memory architecture
	Supports AMD EXPO memory overclocking
	Supported frequencies:
	Supported speeds: 4800 / 5200 / 5600(OC) / 5800(OC) / 6000(OC) / 6200(OC) / 6400(OC) / 6800(OC) / 7200(OC) / 7600(OC) / 8000(OC) / 8200(OC) / 8400(OC) MHz
Video
DisplayPort	1x DisplayPort 1.4 Port, supporting a maximum resolution of 8K @ 30 Hz, supports HDCP & HDR
HDMI	1x HDMI 2.0 Port, supporting a maximum resolution of 4K @ 60 Hz, supports HDCP & HDR
HDMI	Integrated graphics required. Actual support may vary by CPU.
Expansion Slots
CPU Direct	1x PCIe 5.0 x16 Slot (x16 Physical) (PCIE1)
Slot Configurations	PCIE1 with Ryzen 8000 Phoenix 1 Processors support PCIe 4.0 x8 mode
Slot Configurations	PCIE1 with Ryzen 8000 Phoenix 2 Processors support PCIe 4.0 x4 mode
Storage
CPU Direct	M.2_A slot (Key M): supports PCIe 5.0 x4/x2 mode, 2280 length
AMD X870 Chipset	M.2_B slot (Key M): supports PCIe 4.0 x4/x2 mode, 2280 length
	M.2_C slot (Key M): supports PCIe 4.0 x4/x2 mode, 2280 length (rear motherboard mount)
	2x SATA 6Gbps connectors
Storage Configurations	RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices
	M.2_A with Ryzen 8000 Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
	M.2_A with Ryzen 8000 Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs
Networking
LAN	Realtek RTL8126 5 Gigabit Ethernet RJ-45 LAN Port
WiFi	MediaTek MT7925 WiFi 7 Tri-Band Adapter
Bluetooth	Bluetooth 5.4
Audio
Codec	Realtek ALC1220 High-Definition Audio Codec
	Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
	Supports Optical S/PDIF Audio Out

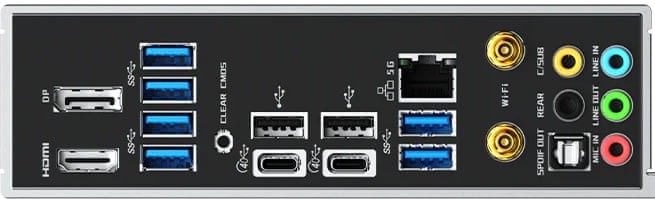

Connectivity
Ports	2x USB 40Gbps Type-C Ports
	6x USB 5Gbps Type-A Ports
	2x USB 2.0 Type-A Ports
	1x HDMI 2.0 Port
	1x DisplayPort 1.4 Port
	5x 3.5mm Audio Jacks
	1x Optical S/PDIF Audio Port
	2x WiFi Antenna Connectors
	1x Realtek 5 Gigabit Ethernet RJ-45 LAN Port
Buttons	1x CMOS Reset Button
General
Internal Connectors	1x 24 Pin ATX power connector
	2x 8 Pin 12V power connector
	1x 4 Pin CPU fan connector
	1x 4 Pin PUMP connector (DC adjustable)
	1x 4 Pin Memory fan connector
	3x 4 Pin System fan connector
	3x M.2 slots (Key_M)
	2x SATA 6Gb/s interface
	1x USB 10G Type-C front interface
	1x USB 5G 19Pin with support for 2 additional USB 5G ports
	2x USB 2.0 9Pin, supports 2 additional USB 2.0 ports
	3x 3 Pin ARGB interface
	1x COM port connection pin
	1x front panel audio interface
	1x 10-1 Pin system panel interface
	1x CLR_CMOS reset pin
	1x TPM pin
LEDs	7-Segment BIOS POST Code Debug Display
I/O Controller	N/A
BIOS	1x 256 Mbit flash
BIOS	Use of licensed AMI UEFI BIOS, MAXSUN PTM UI
Form Factor	Micro-ATX Form Factor, 245 x 245 mm (H x W)
Operating System Support	Windows 11 64-bit
Box Contents	MS-iCraft X870M motherboard
	2x SATA 6Gb/s data cable
	1x Magnetic Wi-Fi gain antenna
	1x 4in1 screwdriver
	1x AIGA Q-version stickers
	1x Product Warranty Card
Warranty Information
Warranty	3 Year Warranty
