| SPECIFICATIONS |
| Brand | ASUS |
| Series | WiFi 7 BE3600 Wireless Routers |
| Model | TUF-BE3600 |
| Network Standard | IEEE 802.11a |
| IEEE 802.11b |
| IEEE 802.11g |
| WiFi 4 (802.11n) |
| WiFi 5 (802.11ac) |
| WiFi 6 (802.11ax) |
| WiFi 7 (802.11be) |
| IPv4 |
| IPv6 |
| Product Segment | BE3600 ultimate BE performance : 688 Mbps+2882 Mbps |
| WiFi Data Rate | WiFi 6 (802.11ax) (5GHz) : up to 2402 Mbps |
| WiFi 7 (802.11be) (2.4GHz): up to 688 Mbps |
| WiFi 7 (802.11be) (5GHz): up to 2882 Mbps |
| Antenna | 4x External Antenna |
| Transmit / Receive | 2.4GHz 2x2 |
| 5GHz 2x2 |
| Processor | 2.0 GHz quad-core processor |
| Memory | 256 MB Flash |
| 1 GB RAM |
| Boosts Speed | OFDMA (Orthogonal Frequency Division Multiple Access) |
| Beamforming: standard-based and universal |
| 4096-QAM high data rate |
| 20/40/80/160 MHz bandwidth |
| Operating Frequency | 2.4GHz / 5GHz |
| 2.4 GHz |
| 5 GHz |
| Operating Mode | Wireless router mode |
| Access point mode |
| Media bridge mode |

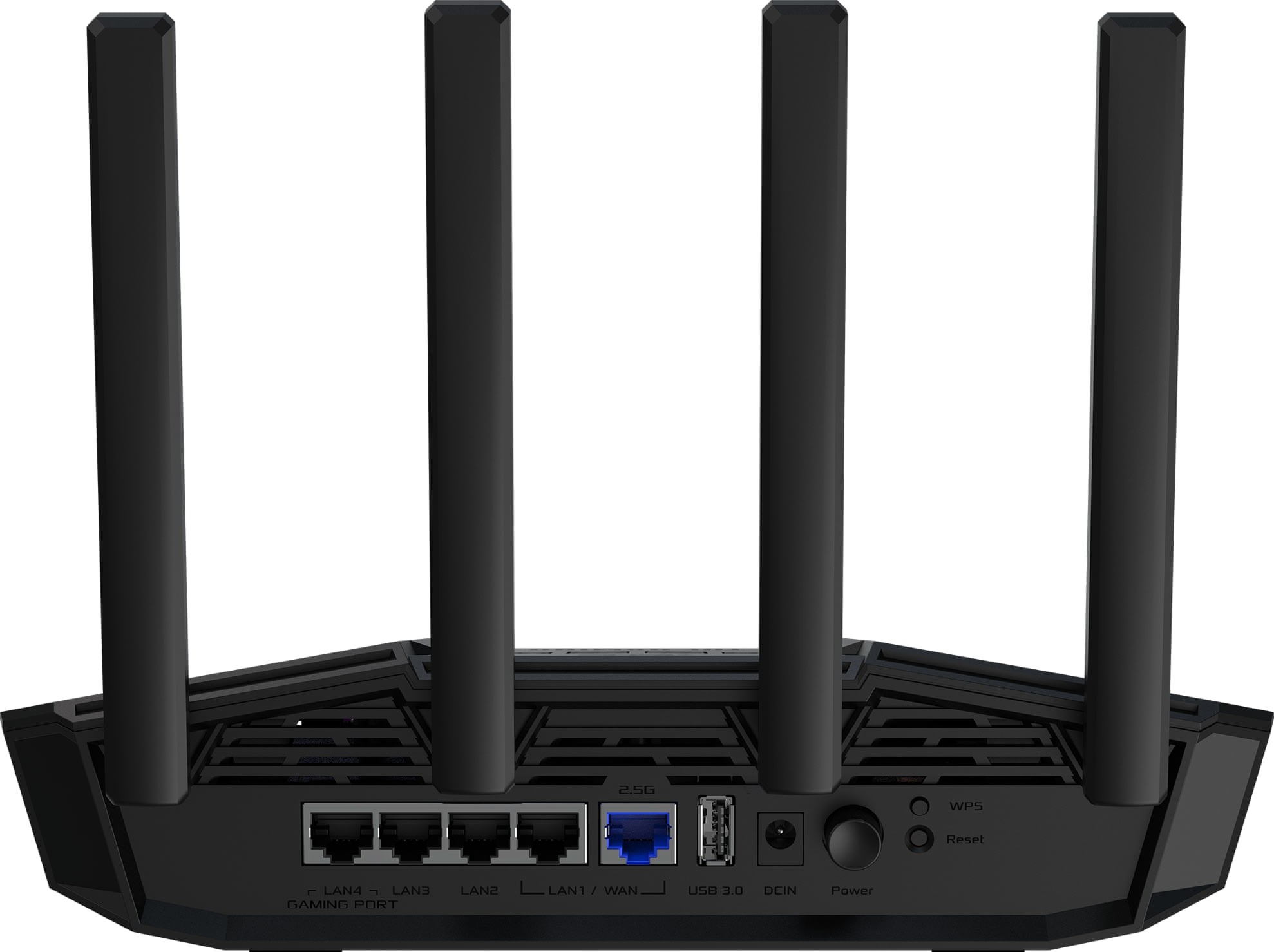

| I/O Ports | RJ45 for 2.5 Gigabits BaseT for WAN x 1, |
| RJ45 for Gigabits BaseT for LAN x 4, |
| USB 3.2 Gen 1 x 1, |
| Buttons | WPS Button, Reset Button, Power Button |
| LED Indicator | Power x 1 |
| WAN x 1 |
| LAN x 1 |
| 2.4GHz WiFi x 1 |
| 5GHz WiFi x 1 |
| Power Supply | AC Input : 100V~240V (50~60Hz) |
| DC Output : 12 V with max. 2 A current |
| Package Content | TUF Gaming BE3600 Dual Band WiFi 7 router |
| RJ-45 cable |
| Power adapter |
| Quick Start Guide |
| Warranty card |
| Product Weight | 561g |
| Product Dimensions | 274mm x 168mm x 205mm |
| AiMesh | AiMesh |
| - Primary AiMesh Router |
| - AiMesh Node |
| Game | Game Boost / Acceleration |
| Mobile Game Mode |
| Parental Control | Allow you to block access to unwanted websites and apps. |
| Safe Browsing |
| Customized Internet Schedule |
| Guest Network | The Guest Network provides Internet connection for guests but restricts access to your local network. |
| - Maximum Guest Network Rule : 2.4GHz x3, 5GHz x3 |
| Guest Network Connection Time Limit |
| Security | AiProtection |
| WPS support, WPA/WPA2/WPA3-Personal, WPA/WPA2-Enterprise |
| WPS |
| Let's Encrypt |
| DNS-over-TLS |
| SSH |
| Security Scan |
| Firewall |
| - Maximum Firewall Keyword Filter : 64 |
| - Maximum Firewall Network Service Filter : 32 |
| - Maximum Firewall URL Filter : 64 |
| AiProtection | Router Security Assessment |
| - Malicious Site Blocking |
| - Two-Way IPS |
| - Infected Device Prevention and Blocking |
| VPN | VPN Client L2TP |
| VPN Client Open VPN |
| VPN Client PPTP |
| VPN Client WireGuard |
| VPN Server IPSec |
| VPN Server Open VPN |
| VPN Server PPTP |
| VPN Server WireGuard |
| VPN Fusion |
| Traffic Control | Adaptive QoS |
| - Bandwidth Monitor |
| - Bandwidth Limiter |
| -- Maximum Bandwidth Limiter Rule : 32 |
| Traditional QoS |
| -- Maximum Traditional QoS Rule : 32 |
| Traffic Monitor |
| - Real-time Traffic Monitor |
| - Wired Traffic Monitor |
| - Wireless Traffic Monitor |
| Traffic Analyzer |
| - Traffic Analysis Period : Daily, Weekly, Monthly |
| - Website History |
| WAN | Internet connection Type : PPPoE, PPTP, L2TP, Automatic IP, Static IP |
| 3G / 4G LTE dongle |
| Port forwarding |
| - Maximum Port Forwarding Rule : 64 |
| Port triggering |
| - Maximum Port Triggering Rule : 32 |
| DMZ |
| DDNS |
| NAT Passthrough : PPTP Pass-Through, L2TP Pass-Through, IPSec Pass-Through, RTSP Pass-Through, H.323 Pass-Through, SIP Pass-Through, PPPoE relay |
| LAN | DHCP Server |
| IGMP Snooping |
| IPTV |
| Manually Assign IP Address |
| - Maximum Manually Assign IP Address Rule : 64 |
| Wake on LAN (WOL) |
| Wireless | UTF-8 SSID |
| WiFi MAC Address Filter |
| - Maximum MAC Filters : 64 |
| Wireless Scheduler |
| Airtime Fairness |
| RADIUS Client |
| Universal Beamforming |
| Explicit Beamforming |
| USB application | File System : HFS+, NTFS, vFAT, ext2, ext3, ext4 |
| Safely Remove Disk |
| AiCloud |
| Download Master |
| AiDisk |
| Media Server |
| Time Machine |
| Samba Server |
| FTP Server |
| Shared Folder Privileges |
| Administration | Configuration Backup and Restore |
| Diagnosis tools |
| Feedback System |
| System Log |
| New Device Connect Notification |
| Login Captcha |
| Connection Diagnosis |
| Auto Firmware Update |
| Warranty Information |
| Warranty | 3 Year Warranty |
