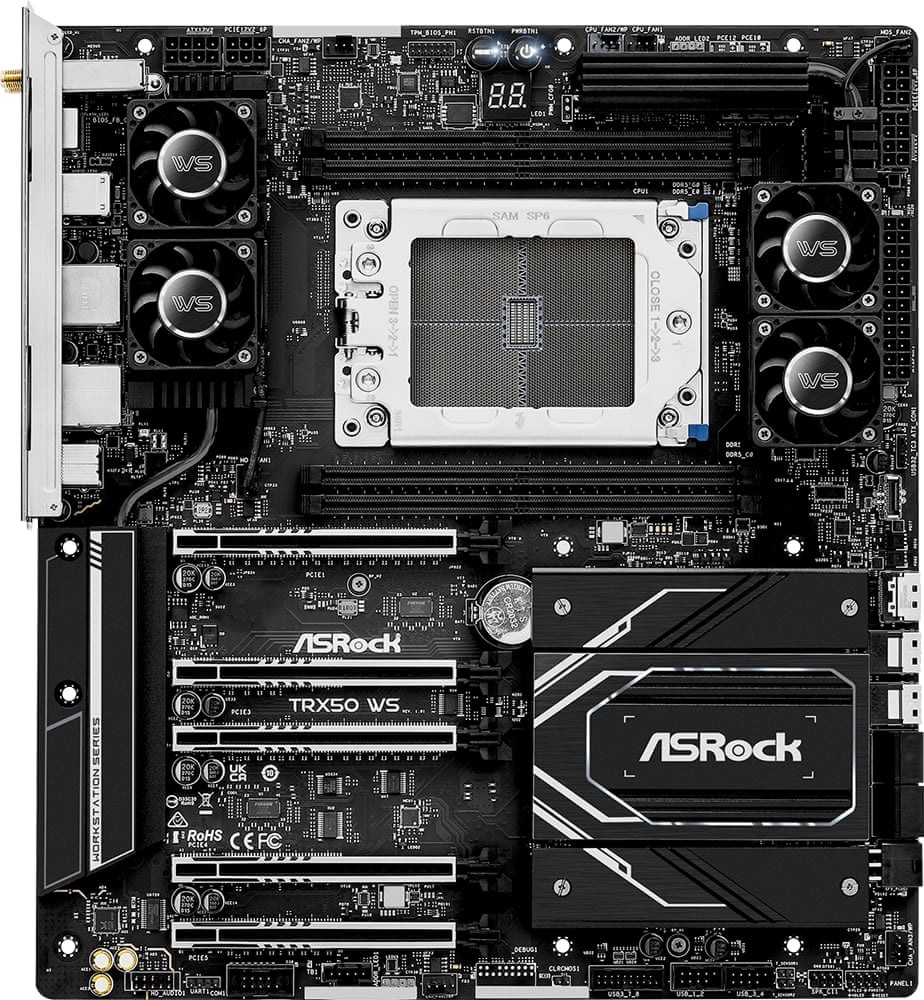

ASRock TRX50WS WIFI AMD Ryzen Threadripper Socket sTR5 E0-ATX Desktop Workstation Motherboard

More Views

Please note:
Images are for illustrative purposes only.

ASRock TRX50WS WIFI AMD Ryzen Threadripper Socket sTR5 E0-ATX Desktop Workstation Motherboard

Product ID: 48858

In stock with Supplier

Lead time before dispatch; 1 - 2 business days

Be the first to review this product

- High-End Desktop Workstation Platform
- E-ATX Form Factor
- AMD TRX50 Chipset
- Socket sTR5
- 4x DDR5 ECC Registered DIMM Slots, Supports Up To 1TB (4x 256GB)
- Supports DDR5-7600 (OC)
- Supports AMD EXPO DDR5 ECC RDIMM Modules
- Supports USB 10Gbps Type-C Front-Panel Header
- 2x PCIe 5.0 x16 Slots (x16 Electrical)
- 1x PCIe 5.0 x16 Slot (x8 Electrical)
- 1x PCIe 4.0 x16 Slot (x4 Electrical)
- 1x PCIe 4.0 x16 Slot (x8 Electrical)
- 1x M.2 Key E Slot for WiFi Cards
- 1x M.2 2280 PCIe 5.0 x4 NVMe SSD Slots
- 1x M.2 2280 PCIe 4.0 x4 NVMe SSD Slot
- 1x MCIO PCIe Gen 5.0 x4 Connector
- 2x SlimSAS PCIe 4.0 x4 NVMe Connectors
- 4x SATA 3.0 Ports
- 1x USB 20Gbps Type-C Port
- 1x USB 10Gbps Type-C Port
- 4x USB 10Gbps Type-A Ports
- 2x USB 5Gbps Type-A Ports
- 2x 3.5mm Audio Jacks (Line Out, Microphone), 1x Optical S/PDIF Port
- 2x SMA Connectors
- 1x BIOS Flashback Button, 1x Clear CMOS Button
- Marvell AQtion AQC113C 10 Gigabit Ethernet RJ-45 LAN Port
- Realtek RTL8125BG 2.5 Gigabit Ethernet RJ-45 LAN
- WiFi 6E 2x2 MIMO Tri-Band Adapter, Bluetooth 5.2
- Realtek ALC1220P High-Definition Audio Codec with DTS:X Ultra (Rear)
- 18+3+3 Phase Digital VRM Solution
- Supports Windows 11 64-bit
- 3 Year Warranty

14 Products

Please note: pricing visible is already subject to a 2% discount applicable only to EFT payments.

R15,299.00

Qty:

Add to Wishlist

Product Description
Additional Information
Reviews (0)
Questions (0)

Product Description

SPECIFICATIONS
Brand	ASRock
Series	WS Series
Model	TRX50 WS
CPU Support	Supports AMD Ryzen Threadripper PRO 7000 & future processors
CPU Support	Supports AMD Ryzen Threadripper 7000 & future processors
Chipset	AMD TRX50
Memory Support
AMD Ryzen 7000 Series	Quad Channel DDR5 Memory Technology
	4x DDR5 DIMM Slots
	Supports DDR5 ECC, buffered memory (RDIMM/ RDIMM-3DS) up to 7600 (OC)
	Max. capacity of system memory: 1TB
Expansion Slots
CPU Direct	2x PCIe 5.0 x16 Slots (x16 Electrical) PCIE1/PCIE3
	1x PCIe 5.0 x16 Slot (x8 Electrical) PCIE4
	1x PCIe 4.0 x16 Slot (x4 Electrical) PCIE2
	1x PCIe 4.0 x16 Slot (x8 Electrical) PCIE5
	1x M.2 Key E Slot for WiFi Cards
Storage
CPU Direct	1x Blazing M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen5x4 mode
	1x MCIO PCIe Gen5x4 Connector
	2x SlimSAS SFF-8654 Connectors (PCIe Gen4x4 or 4 x SATA3 6.0 Gb/s)
AMD TRX50 Chipset	1x Hyper M.2 Socket (M2_2, Key M), supports type 2260/2280 PCIe Gen4x4 mode
	4x SATA 6Gb/s Ports
	1x SlimSAS slot supports PCIe 4.0 x4 mode NVMe device
	Supports RAID 0, RAID 1, and RAID 10 for SATA storage devices
	Supports RAID 0, RAID 1, and RAID 10 for M.2 NVMe storage devices
Networking
LAN	Marvell AQtion AQC113C 10 Gigabit Ethernet RJ-45 Adapter (10 Gbps/5 Gbps/2.5 Gbps/1 Gbps/100 Mbps)
LAN	Realtek Dragon RTL8125BG 2.5Gb Ethernet RJ-45 Adapter (2.5 Gbps/1 Gbps/100 Mbps)
WiFi	WiFi 6E 2x2 MIMO Tri-Band Adapter
Bluetooth	Bluetooth 5.2
Audio
Codec	Realtek ALC1220P CODEC with Nahimic Audio
	Impedance sense for front and rear headphone outputs
	Supports Jack-detection, Multi-streaming, Front Panel Jack-retasking

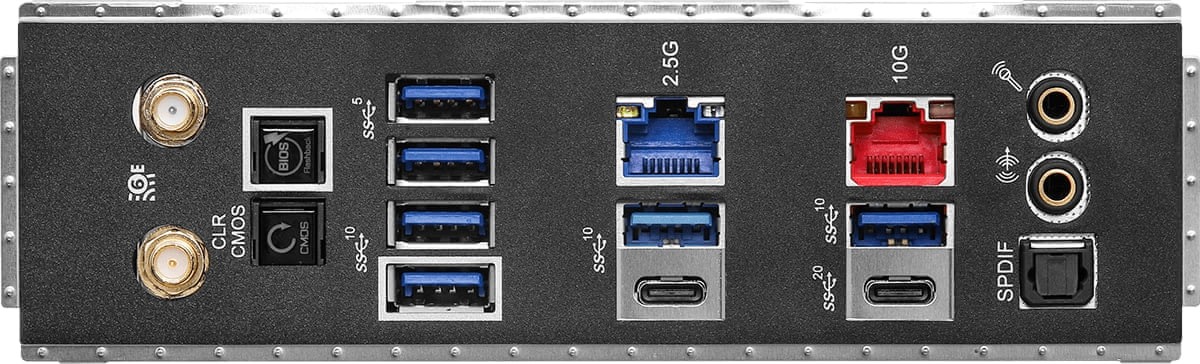

Connectivity
Ports	1x USB 20Gbps Type-C Port
	1x USB 10Gbps Type-C Port
	4x USB 10Gbps Type-A Ports
	2x USB 5Gbps Type-A Ports
	2x 3.5mm Audio Jacks (Line Out, Microphone)
	1x Optical S/PDIF Port
	2x SMA Connectors
	1x Marvell AQtion AQC113C 10 Gigabit Ethernet RJ-45 LAN Port
	1x Realtek RTL8125BG 2.5 Gigabit Ethernet RJ-45 LAN
Buttons	1x BIOS Flashback Button
Buttons	1x Clear CMOS Button
General
Internal Connectors	2x Thermistor Cable Headers
	1x SPI TPM Header
	1x COM Port Header
	1x Chassis Intrusion and Speaker Header
	2x Addressable LED Headers
	1x CPU Fan Connector (4-pin)
	1x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)
	3x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)
	1x 24 pin ATX Power Connector (Hi-Density Power Connector)
	1x 3 pin ATX Power Connector
	2x 8 pin ATX 12V Power Connectors (Hi-Density Power Connector) (for Motherboard)
	2x 6 pin PCIe 12V Power Connectors (Hi-Density Power Connector) (for Motherboard)
	1x 6 pin Graphics 12V Power Connector (Hi-Density Power Connector) (for PCIe card)
	1x Front Panel Audio Connector (15μ Gold Audio Connector)
	1x Thunderbolt AIC Connector (5-pin) (Supports ASRock Thunderbolt 4 AIC Card)
	2x USB 2.0 Headers (Support 4 USB 2.0 ports)
	1x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)
	1x Front Panel Type C USB 3.2 Gen2 Header (10 Gb/s)
	1x Dr. Debug with LED
	1x Power Button with LED
	1x Reset Button with LED
I/O Controller	N/A
LED Displays	7-Segment Debug POST Code LED Display
BIOS	256Mb UEFI AMI BIOS
Form Factor	E-ATX Form Factor, 305 x 277mm (H x W)
Operating System Support	Windows 11 64-bit
Accessories	1x User Manual
	4x SATA Data Cables
	1x ASRock WiFi 2.4/5/6 GHz Antenna
	2x Thermistor Cables
	1x Multi PSU Adaptor Cable
	2x Screws for M.2 Sockets
	2x Standoffs for M.2 Sockets
Warranty Information
Warranty	3 Year Warranty
