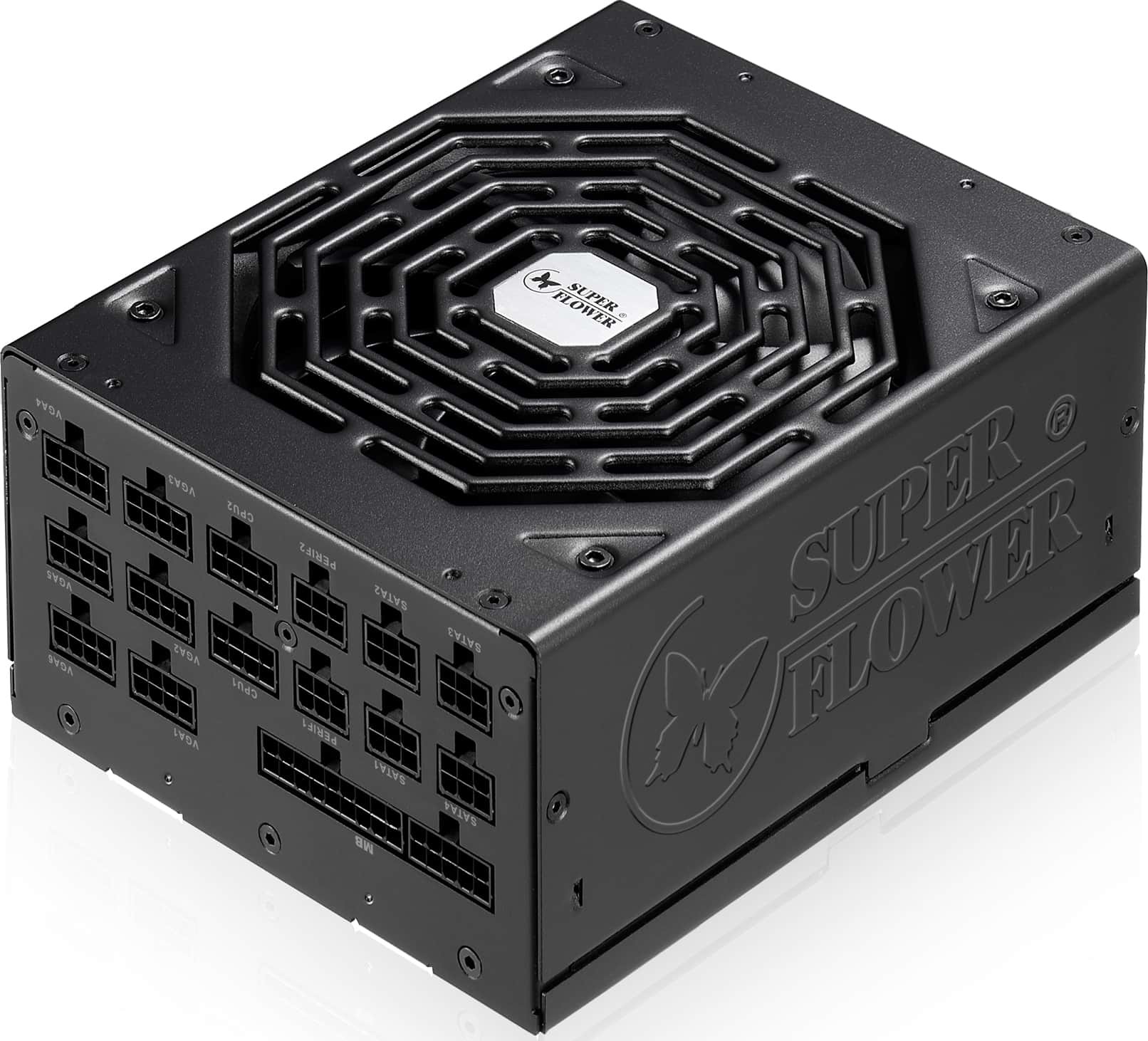

Super Flower SF-1000F14MP Leadex SE Platinum 1000W 80 Plus Platinum Fully Modular Black Desktop Power Supply
Super Flower Leadex Power Supplies
Switch variantModel1000W (Black)
- 1000W (Black)
SpecificationLeadex SE 80-Plus Platinum
- Leadex SE 80-Plus Platinum
Overview
SPECIFICATIONS
- Brand
- Super Flower
- Series
- Leadex SE Platinum
- Model
- SF-1000F14MP
- Form Factor
- ATX
- Specification
- Intel ATX V2.92
Power
- Maximum Power
- 1000W
- PFC
- Active
- Rail Design
- 12V Single Rail
- Rail Outputs
- 3.3V @ 20A = 66W *
- 5.0V @ 20A = 100W *
- ** 3.3V and 5.0V Max combined output rated at 100W
- 12.0V @ 83.3V = 999.6W
- -12.0V @ 0.5A = 6W
- 5Vsb @ 2.5A = 12.5W
- Efficiency Rating
- 80 Plus Platinum Certification
- 90% Efficiency at 20% Duty cycle (tested at 115V)
- 92% Efficiency at 50% Duty cycle (tested at 115V)
- 89% Efficiency at 100% Duty cycle (tested at 115V)
- Temperature Rating
- Passed 50℃ Hot Testing
- Protections
- OVP (Over-Voltage Protection)
- OCP (Over-Current Protection)
- OPP (Over-Power Protection)
- SCP (Short-Circuit Protection)
- UVP (Under-Voltage Protection)
- OTP (Over-Temperature Protection)
- LVP (Low Voltage Protection)
- NLO (No Load Operation)
- SIP (Surge & Inrush Protection)
- Safety Certifications
- cTÜVus / TÜV / CB / CE / FCC / RCM / BSMI R33529 / RoHS / KCC / CCC
Additional information
- Manufacturer's Site
- Visit the manufacturer's website
- Product Link
- Visit the manufacturer's page for this product
Customer reviews
- ★★★★★ 5.0Stewart
Whisper quiet, compact modular unit.
The noise from the desktop has disappeared. This unit is whisper quiet, was simple to install, connecting only those cables necessary. Really worth the price
- Product Rating5/5
- ★★★★★ 5.0Terry
Great product
I recently purchased the 1000W power supply from Wootware, and I couldn’t be more impressed with its performance. From the moment I unboxed it, I could tell it was a solidly built product with high-quality materials. The installation process was straightforward, and it powered up without any issues. One of the standout features of this power supply is its quiet operation. Even under load, the fan noise is minimal, which is a huge bonus for anyone who values a quiet PC build. The 1000W capacity provides ample power for my high-end gaming rig, with plenty of room for future upgrades. Thanks Wootware for excellent service as allways
- Product Rating5/5
- ★★★★★ 5.0Buks
Modular is Good and Bad
The PSU is SOLID, the packaging surprised me with a Velcro pouch inside for the literal mountain of cables it comes with...the only gripe i have is with any modular the cable management is harder as all the cables are 2x as long as they need to be...
- Product Rating5/5
- ★★★★★ 5.0Michael
Exceptional Overall Service and Great Value PSU!
I just want to give props to Wootware for their amazing delivery service. My order was delivered a day after placing it. I received it way earlier than expected. The PSU serves the purposes i intend to use it for and is extremely quiet even when running at 50% load. The build quality is solid and the cables are also good quality. Happy with my purchase.
- Product Rating5/5
- ★★★★★ 5.0Matthew
Super Chuffed
Very happy with the ease of order/pick-up, and even more happy with the product itself. The install was painless and there has been no issues with choppy power as there was in my previous power supply. 6/5 Stars if I could give it! ;)
- Product Rating5/5
- ★★★★★ 5.0Ray
Powerful PSU and very cool package
Got this for I7 13700k with RTX 4080 & ASUS PRIME Z790. very impressive package with a small bag which contains everything I needed. Very happy with their product
- Product Rating5/5
- ★★★★★ 5.0Duncan
Exceeds expectations
Going from a 500W to a 1000W powersupply was something I was planning to do since I was looking into upgrading my PC. Before finding this PSU I had never heard of Super Flower before and was a bit skeptical about its reliability. However, my research showed that others find them trustworthy, so I took a chance on this one. Finding a fully modular 1000W 80+ Platinum at this price was not something I expected. Due to some shipping delays and a lost GPU I was offered an even further discount on it, making it impossible for other PSUs to compete with the price. Running a full 7800X3D + 7900 XT build everything runs smoothly. Doing a build with this is amazing as all the cables come in a neat bag you can store them in before, during and after doing the build, allowing you to not have to put cables back into the packaging. The modularity is also appreciated, as it cleans up the build quite a lot when you don't have extra unconnected cables laying around. Overall, great quality and great service.
- Product Rating5/5
- ★★★★★ 5.0Pieter
Excellent
Super Flower always delivers solid power to any system, and this PSU is no exception. I replaced an 850W RaidMax (from way back) with this and my system is running better than ever (there were some compatibility issues with my MB and previous PSU, which is now completely resolved). The only downside here is no 12VHPWR cable for the GPU, but the quality of this PSU far outweighs the slight inconvenience of having to use the 3 prong adapter - it would be great if they sold an add-on cable for this somewhere down the line though as this PSU will last for years to come.
- Product Rating5/5
- ★★★★★ 5.0Vulane
A Solid PSU
I purchased this unit after owning a Super Flower 550w Bronze for 3 years with no issues whatsoever. The quality of the cables on this unit is quite great. Robust build and clean power with all the protections of a high end PSU. Also do note this is the SE version which runs quiet than the standard version.
- Product Rating5/5
- ★★★★★ 5.0Abdullah
Best Value for money
Running an AMD 5950X with RX6900XT & 8 Case fans 2 of which are connected to a AIO CPU watercooler (280mm). PSU running smoothly without issue so far. I'm really surprised to have found a platinum 1kW power supply at this price, haven't seen anything cheaper.
- Product Rating5/5
