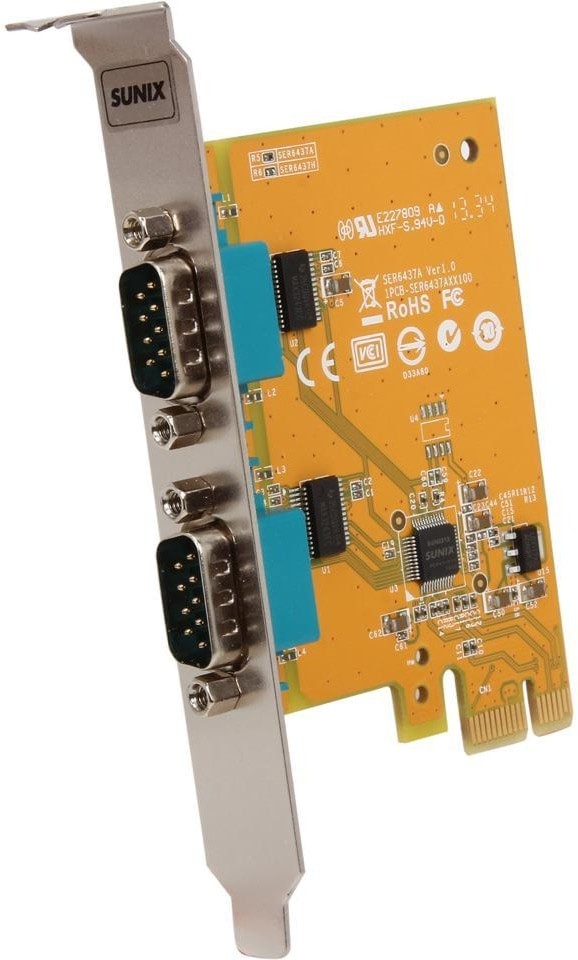

Sunix SER6437A 2 Port Serial RS-232 PCI-E Expansion Card
R516
Pricing visible is already subject to a 2% discount applicable only to EFT payments.
In stock with SupplierShips in1 - 2 business days
Overview
Overview
- Expands two independent RS-232 serial ports with communication speeds up to 115.2Kbps.
- With high reliable SUNIX SUN2212 native PCI Express 16C950 UART controller.
- Designed to meet PCI Express Base Specification Revision 2.0.
- Supports x1, x2, x4, x8, x16 (lane) PCI Express Bus connector keys.
- On-chip hardware auto flow control to guarantee no data loss.
- Built-in ± 15KV ESD protection for all serial signals meets IEC1000-4-2 standard.
- Plug-n-Play, I/O address and IRQ assigned by BIOS.
- Certified by CE, FCC, RoHS, and Microsoft WHQL approval.
- Support Microsoft Windows, Linux, and DOS.
SPECIFICATIONS
- Brand
- Sunix
- Model
- SER6437A
- Interface
- RS-232
- Controller
- SUNIX SUN2212 (16C950 UART Compatible)
- BUS
- PCI Express Spec 2.0, Single-Lane (x1)
- IRQ & IO
- Assigned by System
- Interface
- RS-232
- No. of Port
- 2-port
- FIFO
- 128byte Hardware
- Signal
- DCD, TxD, RxD, RTS, CTS, DTR, DSR, GND, RI
- Baud rate
- 50bps ~ 115.2Kbps
- Stop bit
- 1, 1.5, 2
- Parity
- even, odd, none, mark, space
- Flow Control
- None, Xon/Xoff, RTS/CTS
- Protection
- ±15KV ESD protection for each signal Human Body Model (HBM)
- PCB Connector
- DB44 Female
- Windows Client
- XP/Vista/7/8.x/10 (X86/X64)
- Windows Server
- 2000/2003/2008/2008 R2/2012/2012 R2 (X86/X64)
- Windows Embedded
- Windows CE 4.2/5.0/6.0
- Linux
- Linux 2.4.x/2.6.x/3.x
- DOS
- DOS
- FreeBSD
- FreeBSD 5.3~5.5 / 6.0~6.4
- QNX
- QNX 6.3.2/6.4.0
- Hardware
- CE EN55022 Class B, EN55024, EN61000-3-2, EN61000-3-3, VCCI Class B
- Software
- Microsoft WHQL Windows
- Operation Temperature
- 0 to 60°C (32 to 140°F)
- Operation Humidity
- 5 to 95% RH
- Storage Temperature
- -20 to 85°C (-4 to 185°F)
- PCB Dimension
- 65 x 88 mm
- Bracket
- Low Profile 80 mm
- Bracket Space
- 1
- Warranty
- Manufacturer's Warranty
