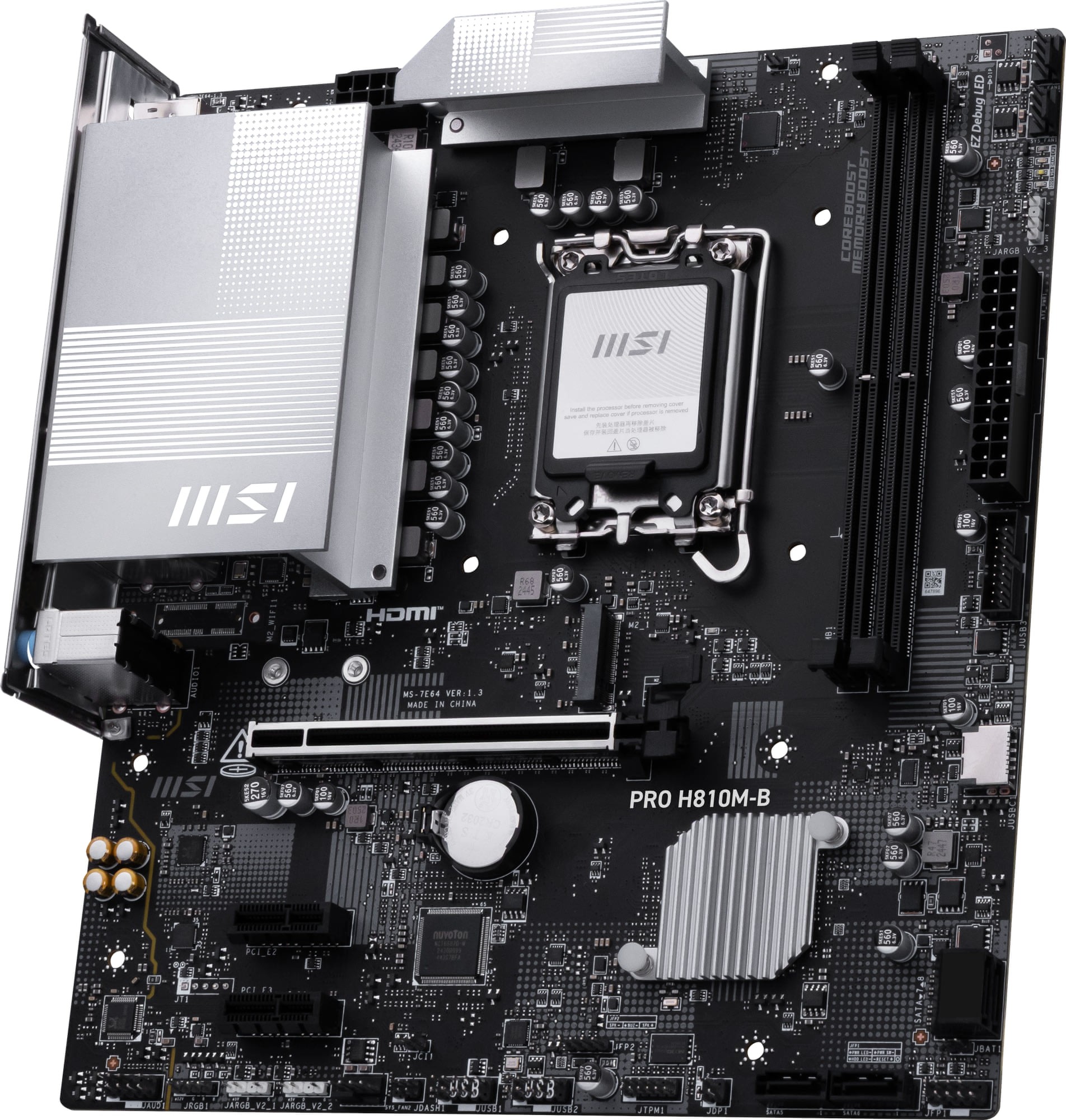

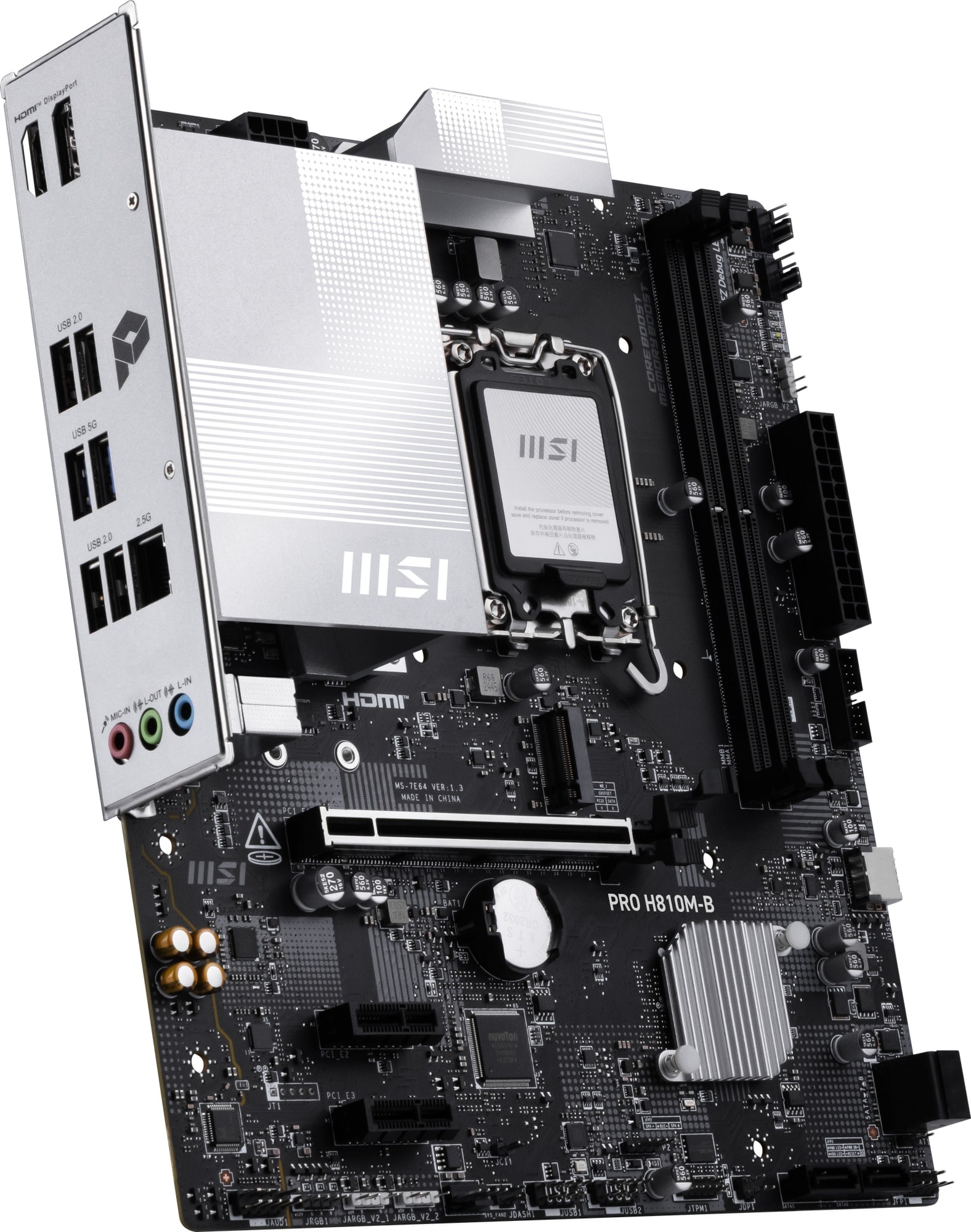

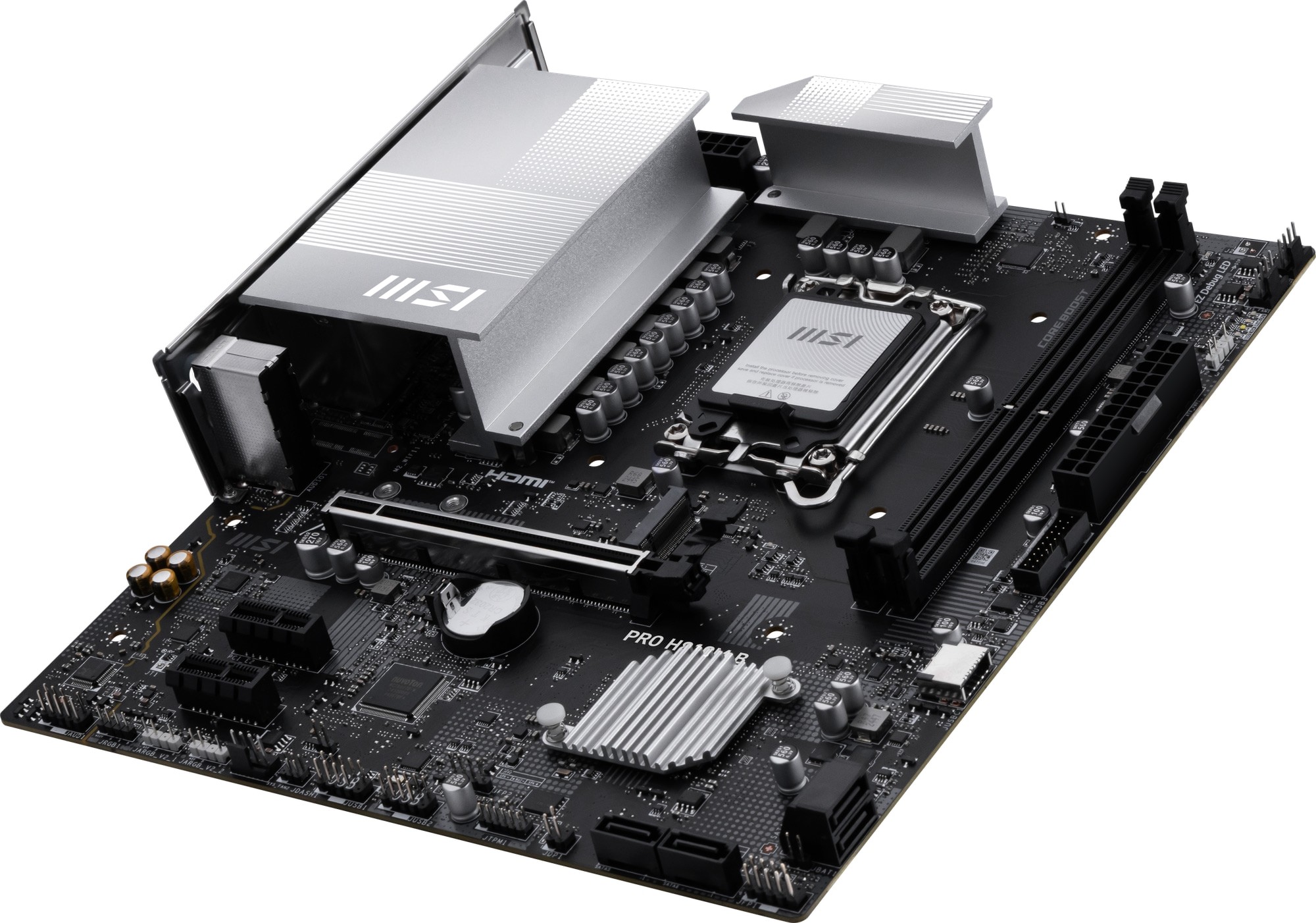

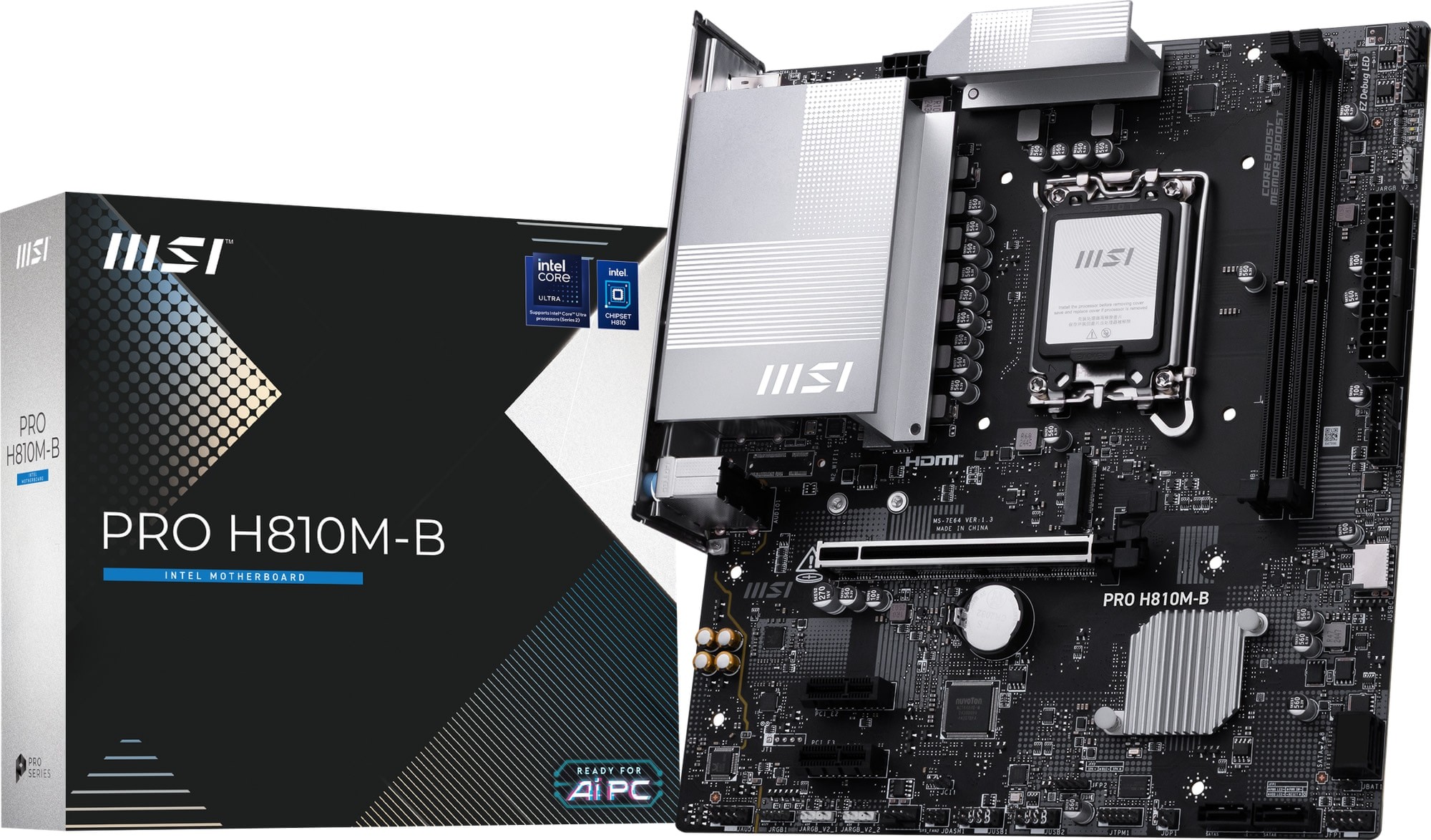

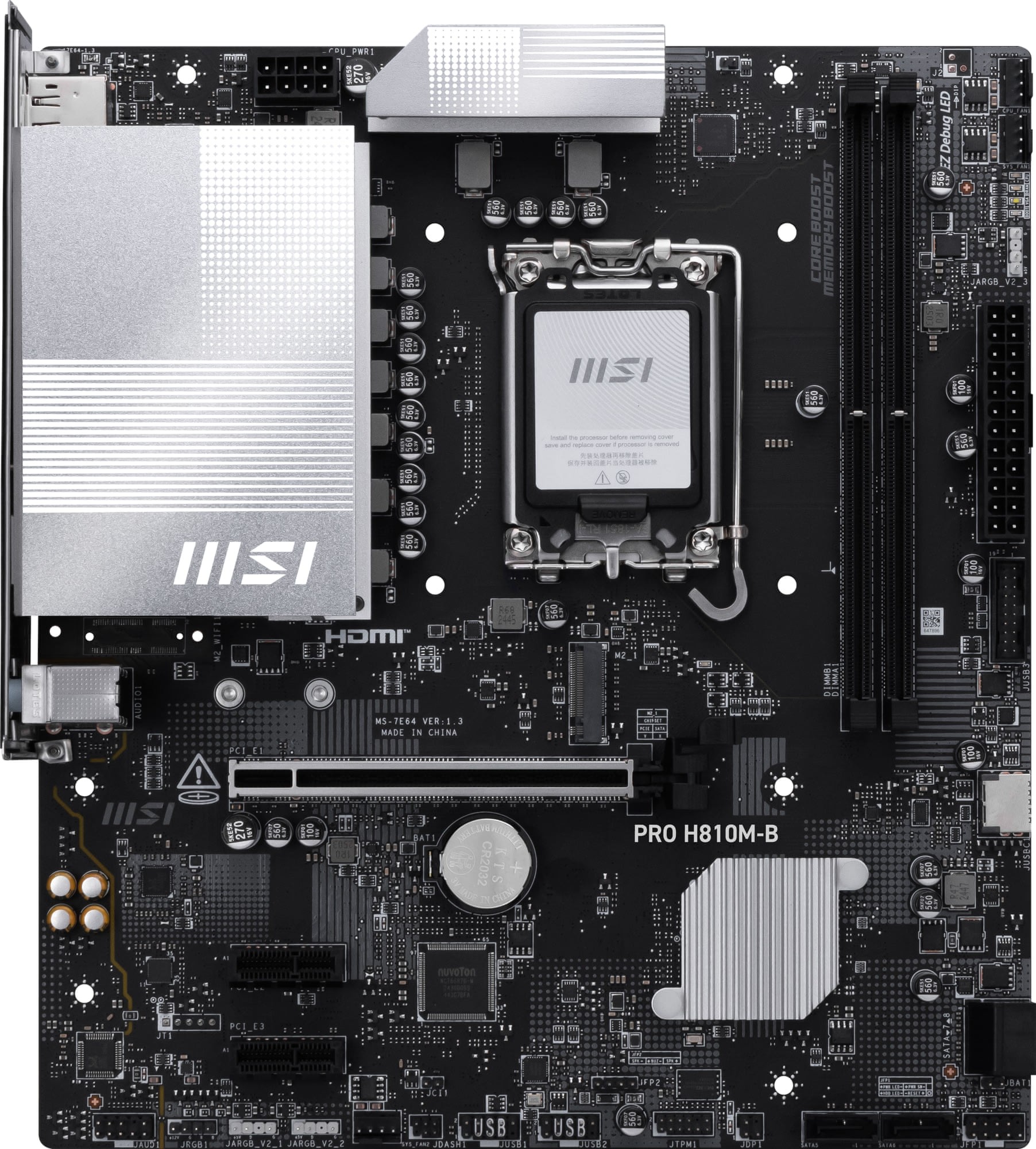

MSI PRO H810M-B Intel H810 LGA 1851 Arrow Lake Micro-ATX Desktop Motherboard

More Views

Please note:
Images are for illustrative purposes only.

MSI PRO H810M-B Intel H810 LGA 1851 Arrow Lake Micro-ATX Desktop Motherboard

Product ID: 51852

Be the first to review this product

- Micro-ATX Form Factor
- Intel H810 Chipset, Socket LGA 1851
- Supports Intel Core Ultra Series 2 Processors
- 2x DDR5 DIMM Slots, Supports Up To 128GB (2x64GB)
- Supports Up to DDR5-6400 (OC)
- Supports Intel XMP 3.0 Memory Modules
- 1x PCIe 5.0 x16 Slot (x16 Physical)
- 2x PCIe 4.0 x1 Slots (x1 Physical)
- 1x M.2 2280 PCIe 4.0 x4 NVMe SSD Slot
- 4x SATA 3.0 Ports
- Supports Front-Panel USB 10Gbps Type-C Chassis Port
- 2x USB 5Gbps Type-A Ports
- 4x USB 2.0 Type-A Ports
- 1x HDMI 2.1 (TMDS) Port
- 1x DisplayPort 1.4 Port
- 2x 3.5mm Audio Jacks (Headphone, Microphone)
- Realtek 2.5 Gigabit Ethernet RJ-45 LAN
- Realtek ALC897 High Definition Audio CODEC
- 4+1+1 Phase Digital VRM Solution
- MSI EZ Debug LED
- MSI EZ Memory Protection
- MSI M.2 CLIP II Latch
- MSI Mystic Light RGB Sync
- MSI Center Software
- Supports Windows 11 64-bit
- 3 Year Warranty

94 Products

Out of Stock

Add to Wishlist

Customers Who Viewed This Product Purchased

Product Description
Additional Information
Reviews (0)
Questions (0)

Product Description

SPECIFICATIONS
Brand	MSI
Series	PRO Series
Model	PRO H810M-B
CPU Support	LGA 1851 Supports Intel Core Ultra Processors (Series 2)
Chipset	Intel H810 Express
Memory Support
Intel Core Ultra Processors (Series 2)	2x DDR5 UDIMM, Maximum Memory Capacity 128GB
	Memory Support DDR5 6400 - 4800 (JEDEC) MT/s
	Max. overclocking frequency:
	1DPC 1R Max speed up to 6400 MT/s
	1DPC 2R Max speed up to 6400 MT/s
	Supports Intel POR Speed and JEDEC Speed
	Supports Intel XMP 3.0
	Supports Dual-Controller Dual-Channel mode
	Supports Non-ECC, Un-buffered memory
	Supports CUDIMM
Video
DisplayPort	1x DisplayPort, supporting a maximum resolution of 4K @ 60 Hz, Support for DisplayPort 1.4 and HDCP 2.3
HDMI	1x HDMI 2.1 (TMDS) port, supporting a maximum resolution of 4K @ 60 Hz, Support for FRL, HDR and HDCP 2.3
HDMI	Integrated Intel graphics required. Actual support may vary by CPU.
Expansion Slots
CPU Direct	1x PCIe 5.0 x16 Electrical, x16 Physical Slot
Intel H810 Chipset	2x PCIe 4.0 x1 Electrical, x1 Physical Slots
Storage
CPU Direct	M.2_1 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
Intel H810 Chipset	4x SATA 6G
Intel H810 Chipset	Support for SATA RAID 0, RAID 1, and RAID 10
Networking
LAN	Realtek 2.5Gbps LAN Adapter
WiFi	N/A
Bluetooth	N/A
Audio
Codec	Realtek ALC897 Codec
Codec	7.1-Channel Surround Audio with front-panel jack retasking
Connectivity
Ports	2x USB 5Gbps Type-A Ports
	4x USB 2.0 Type-A Ports
	1x HDMI 2.1 (TMDS) Port
	1x DisplayPort 1.4 Port
	2x 3.5mm Audio Jacks (Headphone, Microphone)
	1x Realtek 2.5 Gigabit Ethernet RJ-45 LAN
Buttons	N/A
General
Internal Connectors	1x Power Connector(ATX_PWR)
	1x Power Connector(CPU_PWR)
	1x CPU Fan
	2x System Fan
	2x Front Panel (JFP)
	1x Chassis Intrusion (JCI)
	1x Front Audio (JAUD)
	1x Tuning Controller connector(JDASH)
	3x Addressable V2 RGB LED connector (JARGB_V2)
	1x RGB LED connector(JRGB)
	1x TPM pin header(Support TPM 2.0)
	4x USB 2.0 ports
	2x USB 5Gbps Type A ports
	1x USB 10Gbps Type C ports
I/O Controller	NUVOTON NCT6687D-M Controller Chip
LED Displays	4x EZ Debug LEDs, 1x EZ Memory Detection LED
BIOS	1x 256 Mb flash
BIOS	UEFI AMI BIOS
Form Factor	Micro-ATX Form Factor, 243.84 x 220mm (H x W)
Operating System Support	Windows 11 64-bit

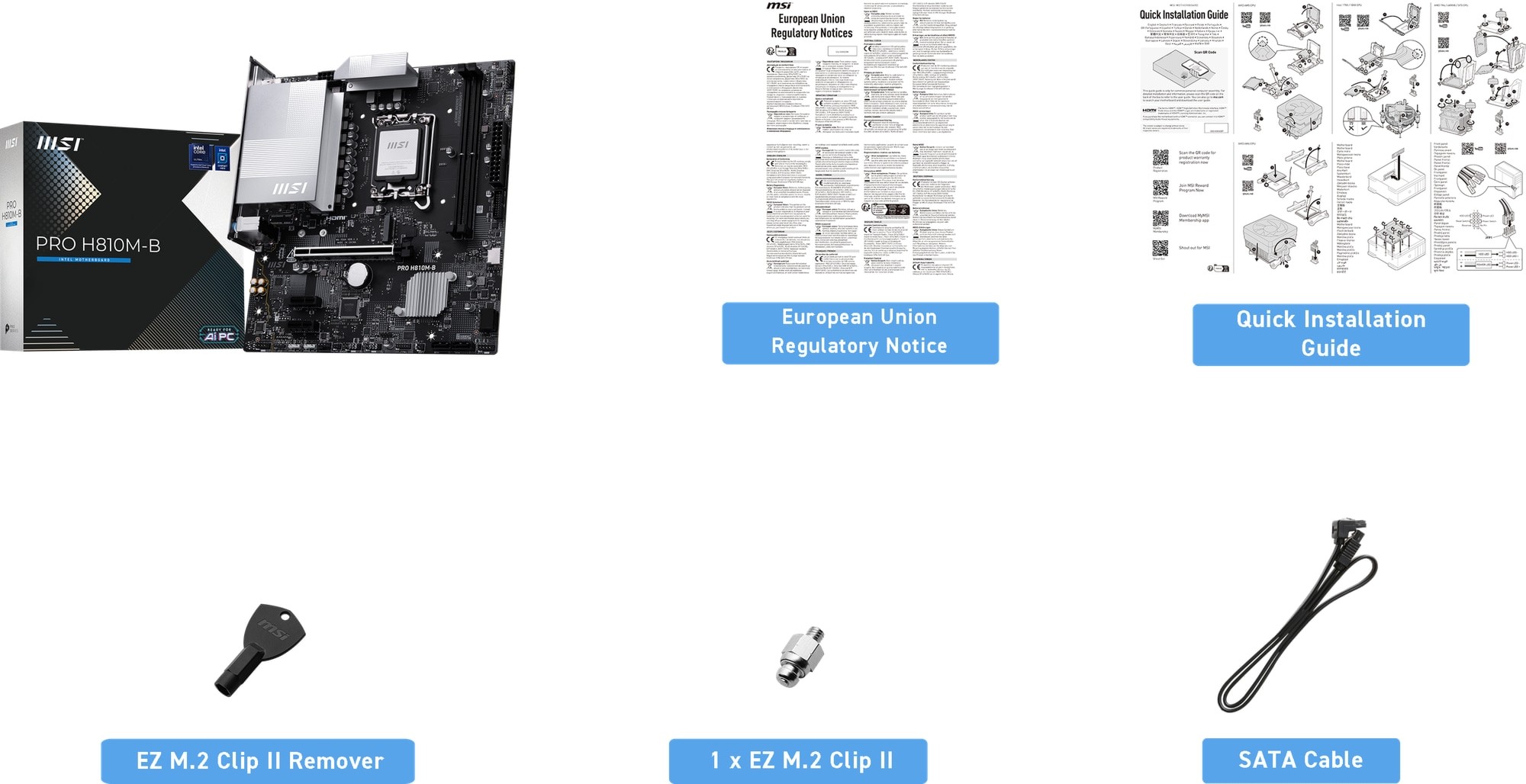

Boxed Accessories	1x Quick installation guide
	1x European Union Regulatory Notices
	1x SATA Cable
	1x EZ M.2 Clip II
	1x EZ M.2 Clip II Remover
Warranty Information
Warranty	3 Year Warranty
