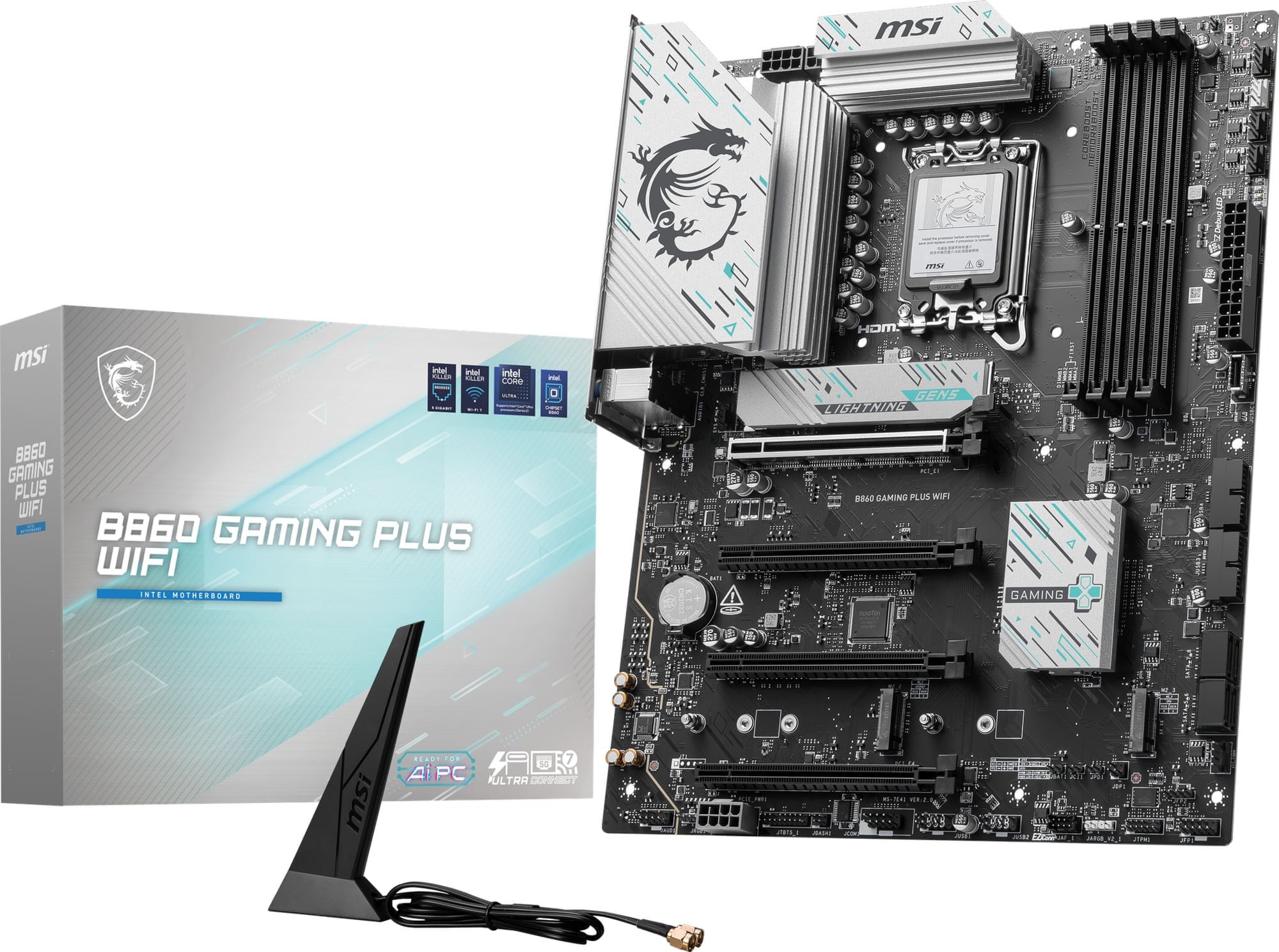

MSI B860 GAMING PLUS WIFI Intel B860 LGA 1851 Arrow Lake ATX Desktop Motherboard
R4 341
Pricing visible is already subject to a 2% discount applicable only to EFT payments.
In stock with SupplierShips in2 - 5 business days
From this brand
MSI · 117 products
Overview
Overview
- ATX Form Factor
- Intel B860 Chipset, Socket LGA 1851
- Supports Intel Core Ultra Series 2 Processors
- 4x DDR5 DIMM Slots, Supports Up To 256GB (4x64GB)
- Supports Up to DDR5-8800 CU-DIMM (OC)
- Supports Intel XMP 3.0 Memory Modules
- 1x PCIe 5.0 x16 Slot (x16 Physical)
- 1x PCIe 4.0 x4 Slot (x16 Physical)
- 2x PCIe 4.0 x1 Slot (x16 Physical)
- 1x M.2 2280 PCIe 5.0 x4 NVMe SSD Slot
- 1x M.2 2280 PCIe 4.0 x4 NVMe SSD Slot
- 1x M.2 2280 PCIe 4.0 x2 NVMe SSD Slot
- 4x SATA 3.0 Ports
- Supports Front-Panel USB 10Gbps Type-C Port
- 1x Thunderbolt 4 USB 40Gbps Type-C Port with DisplayPort
- 2x USB 10Gbps Type-A Ports
- 2x USB 5Gbps Type-A Ports
- 4x USB 2.0 Type-A Ports
- 1x HDMI 2.1 (TMDS), 1x DisplayPort 1.4 Port
- 3x 3.5mm Audio Jacks
- 2x WiFi Antenna Jacks
- Intel Killer E5000 5 Gigabit Ethernet RJ-45 LAN
- Intel Killer BE1750x WiFi 7 Tri-Band Adapter, Bluetooth 5.4
- Realtek High Definition Audio CODEC
- 12+1+2+1 Duet Rail VRM Solution
- MSI EZDebug LED
- MSI EZ PCIe Clip II Release Mechanism
- MSI M.2 Shield Frozr
- MSI Mystic Light RGB Sync
- MSI Center Software
- Supports Windows 11 64-bit
- 3 Year Warranty
SPECIFICATIONS
- Brand
- MSI
- Series
- GAMING Series
- Model
- B860 GAMING PLUS WIFI
- CPU Support
- LGA 1851 Supports Intel Core Ultra Processors (Series 2)
- Chipset
- Intel B860 Express
Memory Support
- Intel 12th & 13th Gen Series
- 4x DDR4, Maximum Memory Capacity 128GB
- Memory Support 8800 - 6400 (OC) MT/s / 6400 - 4800 (JEDEC) MT/s
- Max. overclocking frequency:
- 1DPC 1R Max speed up to 8800 MT/s
- 1DPC 2R Max speed up to 7200 MT/s
- 2DPC 1R Max speed up to 6400 MT/s
- 2DPC 2R Max speed up to 5600 MT/s
- Supports Intel POR Speed and JEDEC Speed
- Supports Memory Overclocking and Intel XMP 3.0
- Supports Dual-Controller Dual-Channel mode
- Supports Non-ECC, Un-buffered memory
- Supports CUDIMM
Video
- USB Type-C
- 1x Thunderbolt 4 Port with DisplayPort 2.1, supporting a maximum resolution of 8K @ 60 Hz, Support for HDR and HDCP 2.3
- DisplayPort
- 1x DisplayPort 1.4 Port, supporting a maximum resolution of 4096x2304 @ 60 Hz, Support for HDR and HDCP 2.3
- HDMI
- 1x HDMI 2.1 Port, supporting a maximum resolution of 8K @ 60 Hz, Support for FRL, HDR and HDCP 2.3
- Integrated Intel graphics required. Actual support may vary by CPU.
Expansion Slots
- CPU Direct
- 1x PCIe 5.0 x16 Physical, x16 Electrical Slot (PCI_E1)
- Intel B760 Chipset
- 1x PCIe 4.0 x16 Physical, x4 Electrical Slot (PCI_E3)
- 2x PCIe 4.0 x16 Physical, x4 Electrical Slots (PCI_E2, PCI_E4)
Storage
- CPU Direct
- M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices
- Intel B760 Chipset
- M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices
- M.2_3 Source (From Chipset) supports up to PCIe 4.0 x2 , supports 2280/2260 devices
- 4x SATA 6G
- Support for SATA RAID 0, RAID 1, RAID 5, and RAID 10
Additional information
Additional information
- Manufacturer's Site
- Visit the manufacturer's website
- Product Link
- Visit the manufacturer's page for this product
