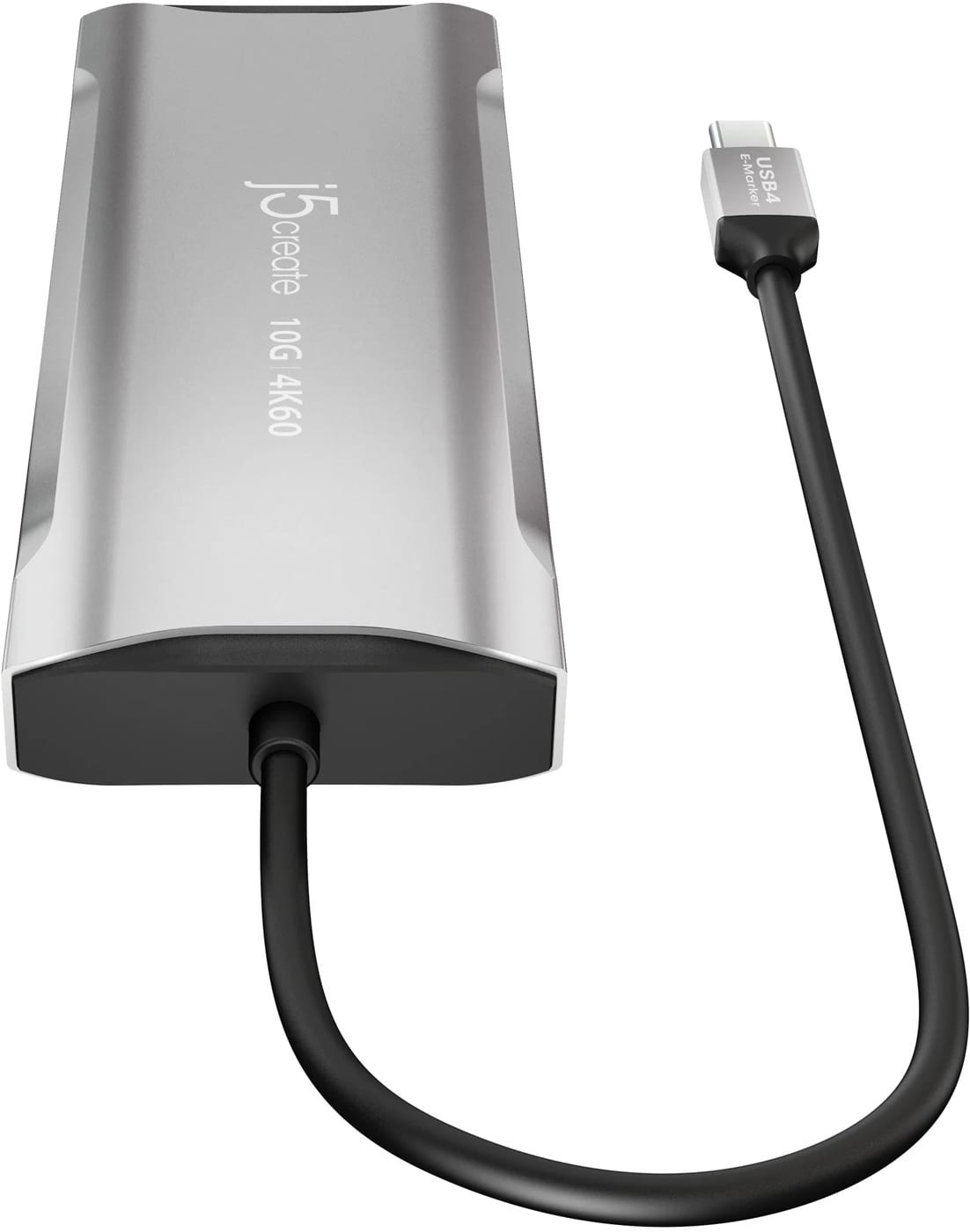

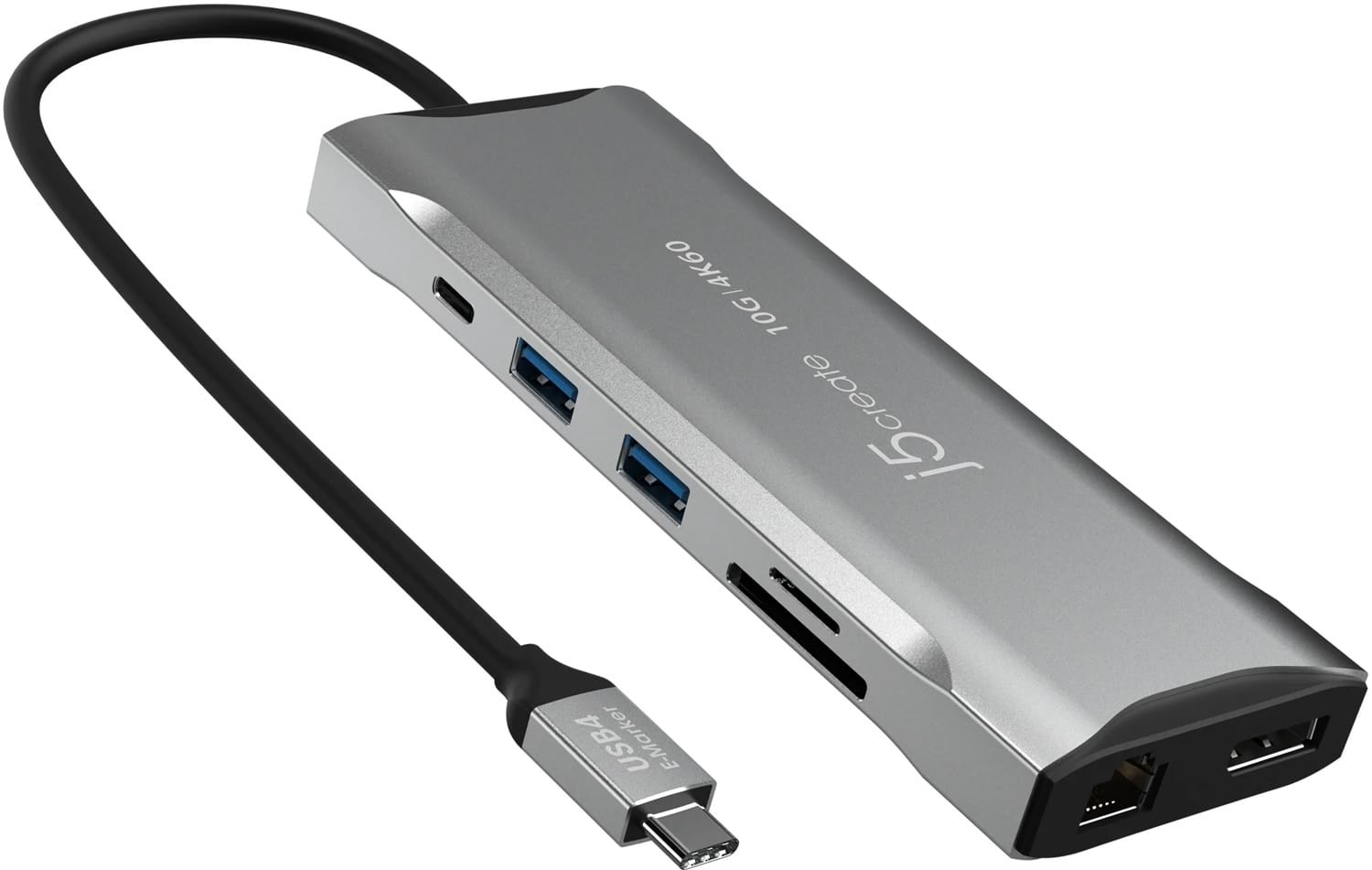

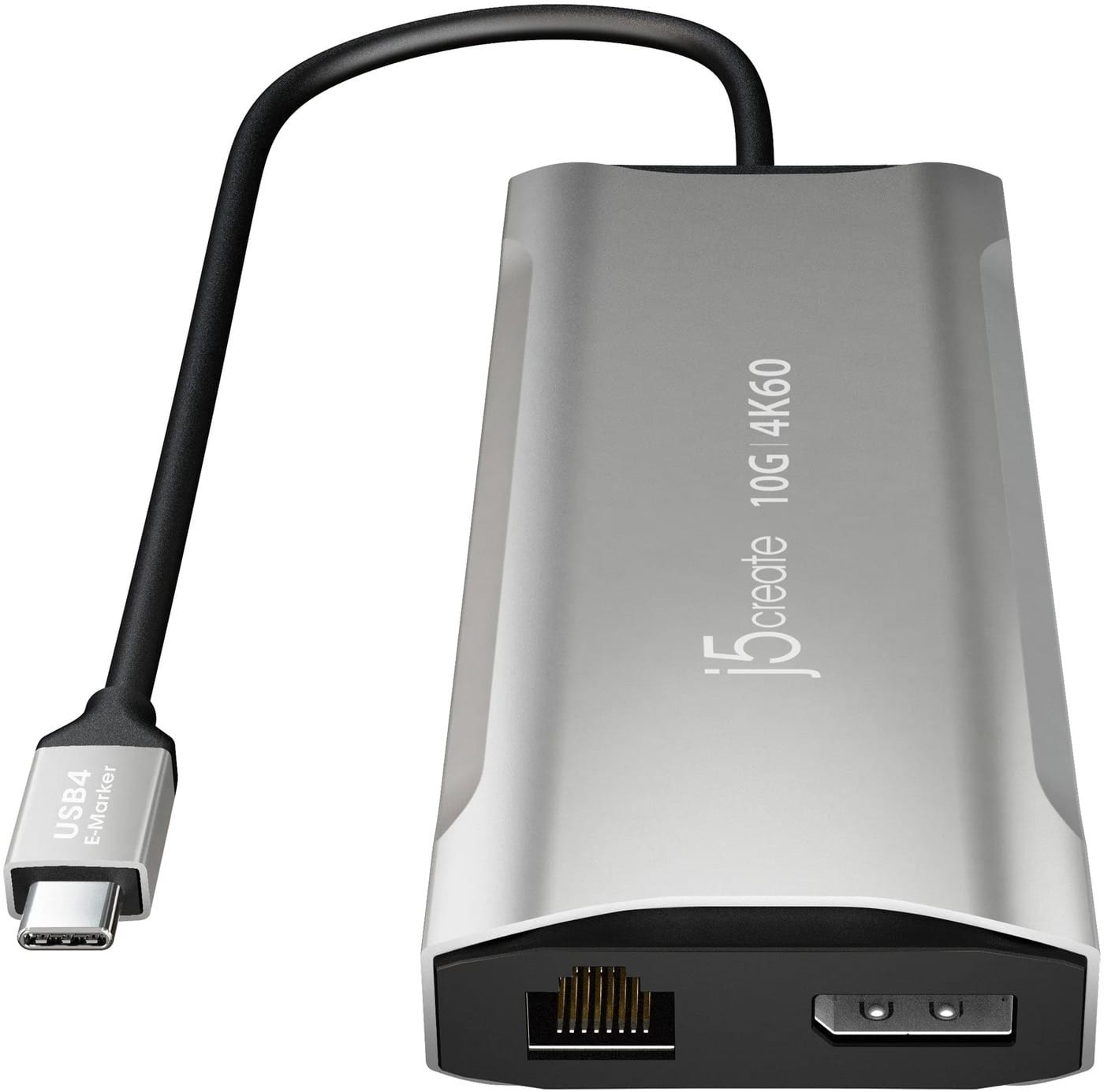

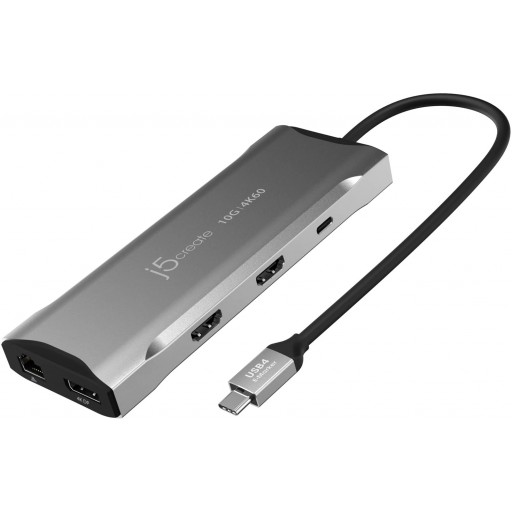

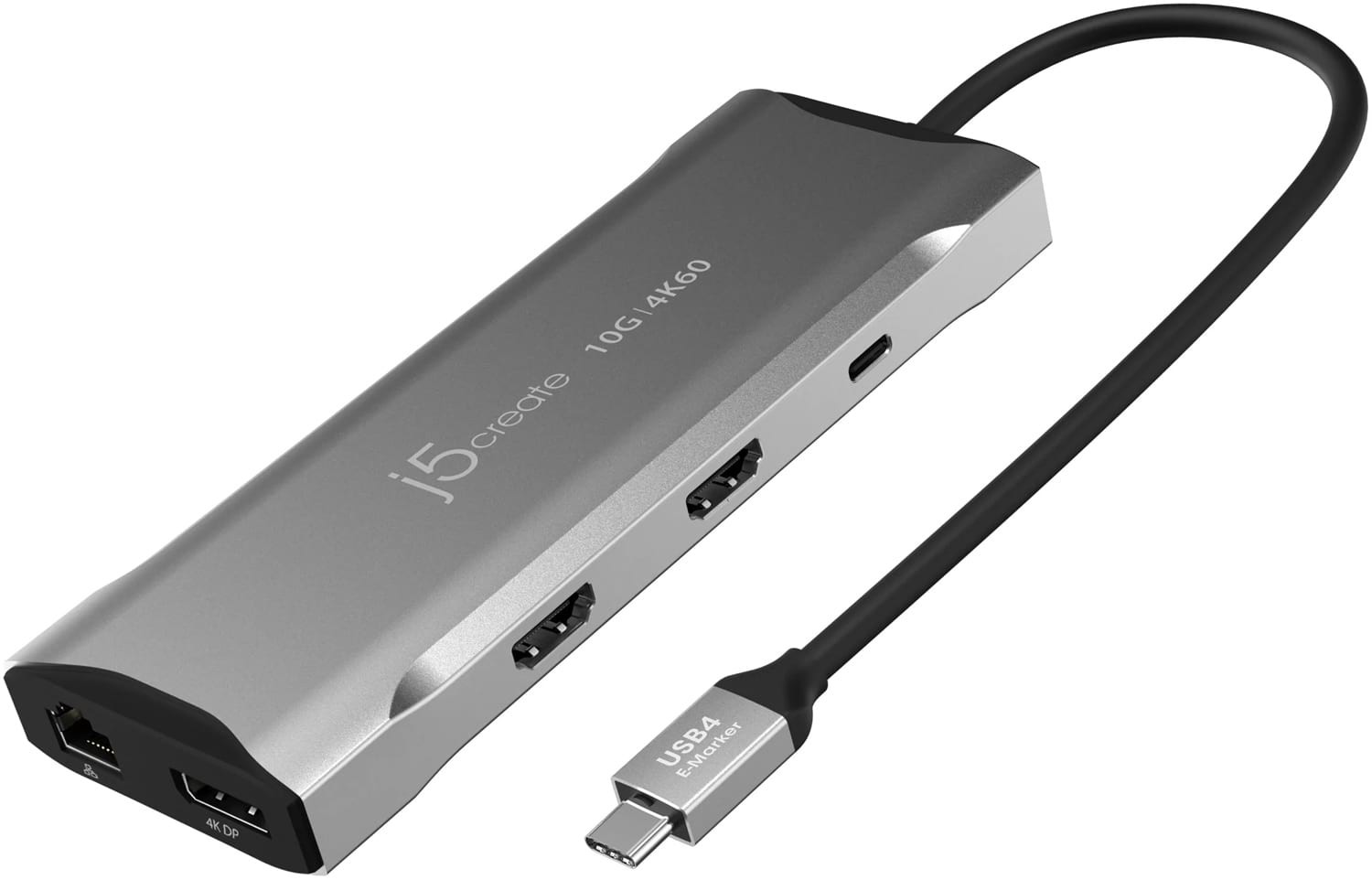

J5Create JCD397 Elite 4K60 USB Type-C Triple-Monitor 10Gbps Mini Dock

More Views

Please note:
Images are for illustrative purposes only.

J5Create JCD397 Elite 4K60 USB Type-C Triple-Monitor 10Gbps Mini Dock

Product ID: 39891

In stock with Supplier

Lead time before dispatch; 1 - 2 business days

1 Review(s) | Add Your Review

- Elite 4K60 USB Type-C Triple-Monitor 10Gbps Mini Dock
- 1x USB Type-C 10Gbps, 1x USB Type-C 5Gbps, 2x USB Type-A 10Gbps
- 1x USB Type-C Power Delivery 3.0, 2x 4K HDMI, 1x DisplayPort
- 1x SD & microSD 4.0 Reader/Writer, 1x RJ45 Gigabit Ethernet
- USB Transfer Rates Up to 10Gbps
- Bus or Self Powered
- 2 Year Warranty

34 Products

Please note: pricing visible is already subject to a 2% discount applicable only to EFT payments.

R1,658.00

Qty:

Add to Wishlist

Product Description
Additional Information
Reviews (1)
Questions (0)

Product Description

SPECIFICATIONS
Brand	J5Create
Series	Docking Station Series
Model	JCD397
General
Host Connector	1x USB-C Male
Video Output	2x HDMI Female
Video Output	1x DisplayPort Female
Power Source	Bus-Powered or Self-Powered
Network Interface	RJ45 (Gigabit Ethernet)
Audio Supported	Yes
Ports	1x USB Type-C 10Gbps
	1x USB Type-C 5Gbps With Power Delivery 3.0
	2x USB Type-A 10Gbps
	1x USB-C Power Delivery 3.0
	2x 4K HDMI
	1x DisplayPort
	1x SD & MicroSD 4.0 Memory Card Reader/Writer
	1x RJ45 Gigabit Ethernet
Performance
Maximum Display Resolution	3840 x 2160
Maximum Display Refresh Rate	Windows (MST)
	3840 x 2160 @ 60 Hz
	2560 x 1440 @ 120 Hz
	1920 x 1080 @ 144 Hz
Maximum Data Transfer Rate	10Gbps
Displays Supported	3
Compatible Networks	10/100/1000 Mbps
Audio Channel	2.1 via HDMI
Features	Advanced USB Type-C E-Mark Chip Integrates USB4, Thunderbolt 3 and Thunderbolt 4 Compatibility
	Backward Compatible With USB 3.2/3.1
	Three SuperSpeed USB 10Gbps Downstream Ports (1x USB Type-C and 2x Type-A) To Connect Peripherals
	Charge And Power Connected Laptop And Peripherals With 100W Power Delivery
	SD & MicroSD 4.0 Memory Card Reader/Writer For Media Storage And Transfer
	Easily Add A Wired Network Connectivity With The Gigabit Ethernet Port
	Plug And Play, No Driver Installation Required
	Extending One Display Up to 3840 x 2160 @ 60, Easily Switch To A Higher Refresh Rate Of 2560 x 1440 @ 144 Via HDMI Or 1920 x 1080 @ 240 Via DP Port To Enjoy Your Gaming Under Windows OS
	Supports Dual 4K 60 Hz Or Triple 4K 30 Hz (2x HDMI and 1x DisplayPort) On Compatible USB Type-C Laptops With DisplayPort 1.4 Alt Mode With MST Support
Power
Power Delivery	Up to 100W via USB-C
Power Consumption	≤ 650 mA
Input Current	Up to 5A
Input Voltage	Up to 20V
Output Current	Up to 4.25A
Output Voltage	Up to 20V
Colour	Space Grey
Enclosure Type	Aluminium
Cable Length	20cm
Product Dimensions(L x W x H)	148 x 55 x 17mm
Weight	123.5g
Storage Temperature	-17 to 68°C
Storage Humidity	< 85% Non-Condensing
Operating Temperature	-1 to 41°C
Operating Humidity	< 85% Non-Condensing
Warranty Information
Warranty	2 Year Warranty
