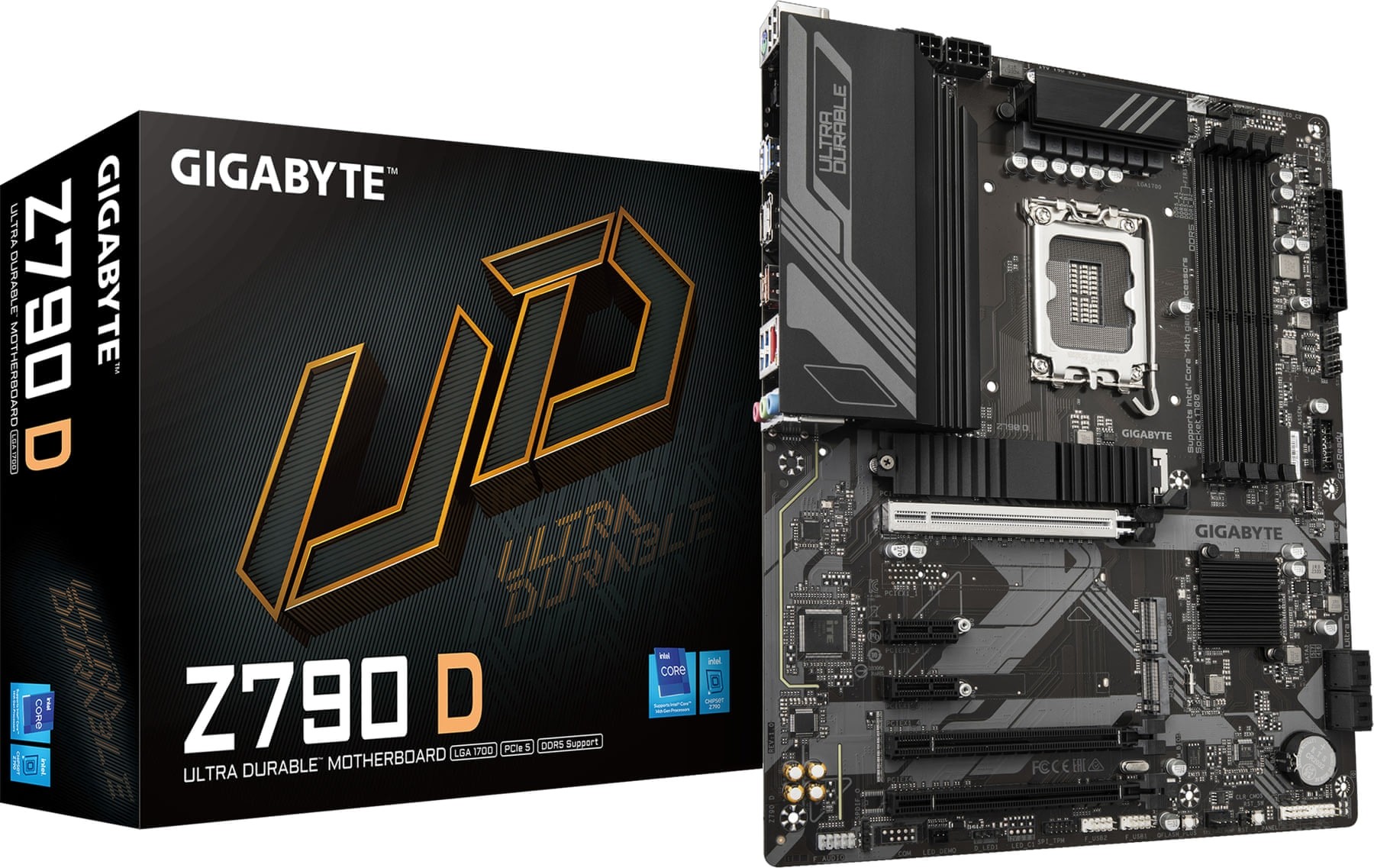

Gigabyte Z790 D DDR5 Intel Z790 LGA 1700 Raptor Lake Refresh ATX Desktop Motherboard
Out of stockContact for AvailabilityLast available: 2025-04-29
Gigabyte Z790 D Series
Switch variantModelNo WiFi
- No WiFi
Out of stockLast available: 2025-04-29
From this brand
Gigabyte · 180 products
Overview
Overview
- ATX Form Factor
- Intel Z790 Chipset
- Socket LGA 1700
- Supports Intel 12th, 13th, 14th Gen Processors
- 4x DDR4 DIMM Slots, Supports Up to 256GB (4x64GB)
- Supports up to DDR5-7600 (OC)
- Supports Intel XMP 3.0 Memory
- 1x PCIe 5.0 x16 Slot (x16 Physical)
- 1x PCIe 4.0 Slot, 3x PCIe 3.0 Slots
- 3x M.2 PCIe 4.0 x4 NVMe SSD Slots
- 4x SATA 3.0 Ports
- Supports Front-Panel USB 10Gbps Type-C Port
- 1x USB 10Gbps Type-C Port
- 1x USB 10Gbps Type-A Port
- 4x USB 5Gbps Type-A Ports
- 2x USB 2.0 Type-A Ports
- 1x DisplayPort 1.2 Port, 1x HDMI 2.1 Port (TMDS)
- 1x PS/2 Combo Port (Keyboard, Mouse)
- 3x 3.5mm Audio Jacks (Line In, Line Out, Microphone)
- Realtek 2.5 Gigabit Ethernet RJ-45 LAN Port
- Realtek High-Definition Audio Codec
- Twin 12+1+1 Phases Digital VRM Solution
- Gigabyte Q-Flash Plus BIOS Flashback
- Gigabyte RGB Fusion
- Gigabyte Control Center Utility
- Supports Windows 11 64-bit
- 3 Year Warranty
SPECIFICATIONS
- Brand
- Gigabyte
- Series
- Z790 Motherboard Series
- Model
- Z790 D (GA-Z790D-rev-10)
- CPU Support
- Supports Intel 12th, 13th, 14th Gen Core, Pentium Gold and Celeron Processors
- Chipset
- Intel Z790 Express
Memory Support
- Intel 13th, 14th Gen Processors
- Support for DDR5 7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600 / 5400 / 5200/ 4800/4400 MT/s memory modules
- Intel 12th Gen, 13th Gen Core i5/i3 Processors
- Support for DDR5 4800/4400 MT/s memory modules
- 4x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory
- Dual channel memory architecture
- Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
- Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
- Support for Extreme Memory Profile (XMP) memory modules
Video
- HDMI
- 1x HDMI 2.1 TMDS port, supporting a maximum resolution of UHD 4K 3840x2160 @ 60Hz, Support for HDCP 2.3
- DisplayPort
- 1x DisplayPort 1.2 port, supporting a maximum resolution of 4096x2304 @ 60Hz, Support for HDCP 2.3
- Integrated Intel graphics required. Actual support may vary by CPU.
Expansion Slots
- CPU Direct
- 1x PCIe 5.0 x16 Slot (x16 Physical)
- Intel Z790 Chipset
- 1x PCIe 4.0 x4 Slot (x16 Physical)
- 1x PCIe 3.0 x1 Slot (x16 Physical)
- 2x PCIe 3.0 x1 Slots (x1 Physical)
Storage
- CPU Direct
- 1x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
- Intel Z790 Chipset
- 1x M.2 connectors (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)
- 1x M.2 connectors (Socket 3, M key, type 2280 SATA and PCIe 4.0 x4/x2 SSD support) (M2M_SB)
- 4x SATA 6Gb/s connectors
- RAID 0, RAID 1, RAID5, and RAID 10 support for NVMe SSD storage devices
- RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
