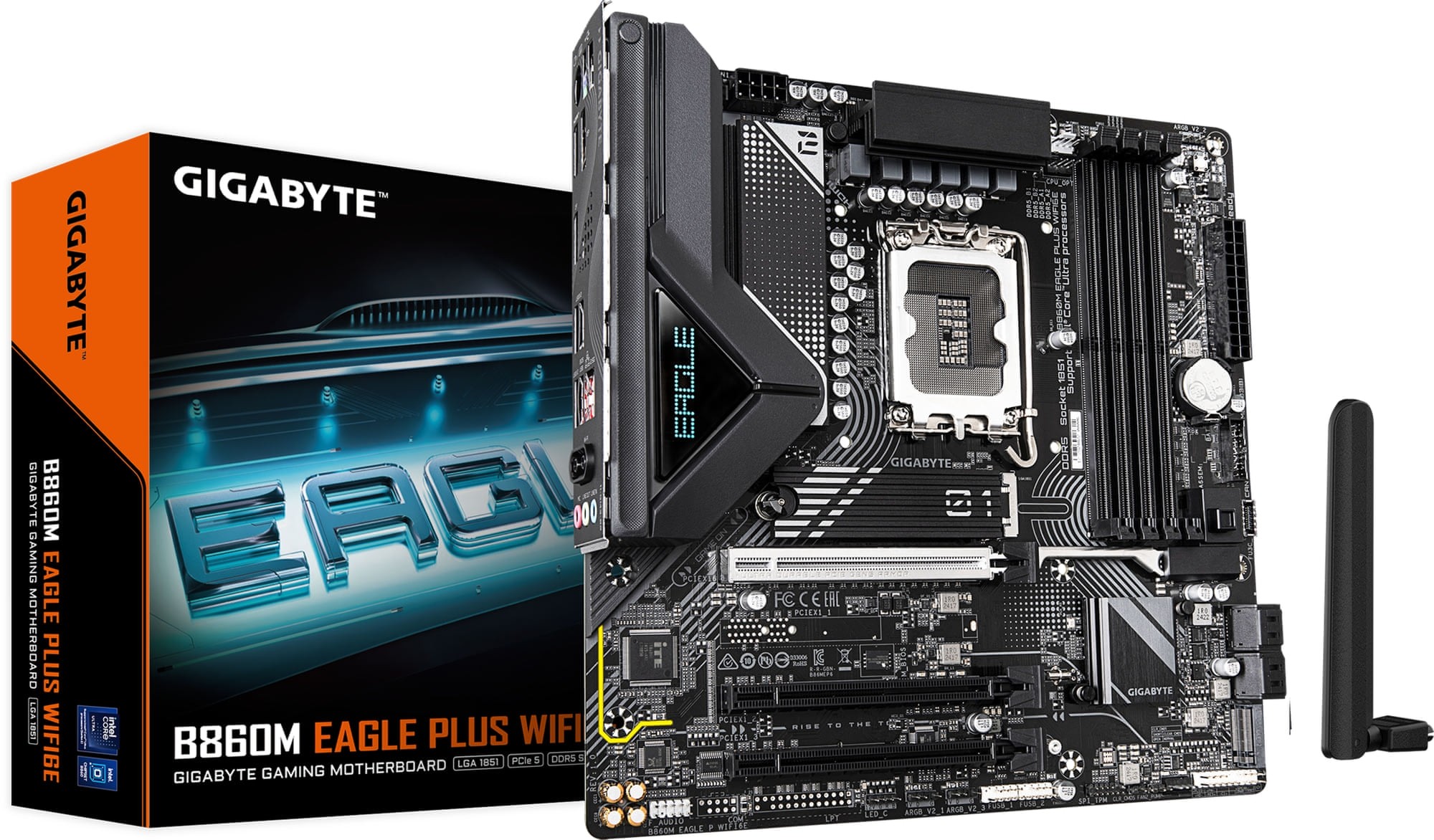

Gigabyte B860M EAGLE PLUS WIFI6E Intel B860 LGA 1851 Arrow Lake Micro-ATX Desktop Motherboard
R3 959
Pricing visible is already subject to a 2% discount applicable only to EFT payments.
In stock with SupplierShips in2 - 5 business days
From this brand
Gigabyte · 180 products
Overview
Overview
- Micro-ATX Form Factor
- Intel B860 Chipset, Socket LGA 1851
- Supports Intel Core Ultra Series 2 Processors
- 4x DDR5 DIMM Slots, Supports Up To 256GB (4x64GB)
- Supports Up to DDR5-9066 (OC)
- Supports CUDIMM DDR5 Modules
- Supports Intel XMP 3.0 Memory Modules
- 1x PCIe 5.0 x16 Slot (x16 Physical)
- 2x PCIe 4.0 x1 Slots (x16 Physical)
- 1x M.2 2280 PCIe 5.0 x4 NVMe SSD Slot
- 1x M.2 2280 PCIe 4.0 x4 NVMe SSD Slot
- 4x SATA 3.0 Ports
- Supports Front-Panel USB 5Gbps Type-C Port
- 1x USB 10Gbps Type-A Ports
- 2x USB 5Gbps Type-A Ports
- 3x USB 2.0 Type-A Ports
- 1x HDMI 2.1 (TMDS), 2x DisplayPort 2.1 Ports
- 3x 3.5mm Audio Jacks
- 1x PS/2 Combo Port (Keyboard, Mouse)
- 2x Antenna Connectors
- Realtek 2.5 Gigabit Ethernet RJ-45 LAN
- WiFi 6E Tri-Band Adapter, Bluetooth 5.3
- Realtek High Definition Audio CODEC
- 8+1+2 Twin Hybrid VRM Solution
- Gigabyte PCIe EZ-Latch Plus
- Gigabyte Q-Flash Plus BIOS Button
- ASUS Q-LED Diagnostic LEDs
- Gigabyte RGB Fusion
- Gigabyte Control Center App
- Supports Windows 11 64-Bit
- 3 Year Warranty
SPECIFICATIONS
- Brand
- Gigabyte
- Series
- EAGLE Series
- Model
- B860M EAGLE PLUS WIFI6E (GA-B860M-EAGLE-P-WIFI6E)
- CPU Support
- Intel Socket LGA 1851 for Core Ultra Series Processors (Series 2)
- Chipset
- Intel B860 Express
Memory Support
- Intel Core Ultra Series Processors (Series 2)
- Support for DDR5 9066(O.C)/8800(O.C) /8600(O.C) / 8400(O.C) /8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) /6400/5600 MT/s memory modules
- 4x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity)of system memory
- Dual channel memory architecture
- Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
- Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
- Support for Extreme Memory Profile (XMP) memory modules
Video
- HDMI
- 1x HDMI 2.1 TMDS port, supporting a maximum resolution of UHD 4K 3840x2160 @ 60Hz, Support for HDCP 2.3, and HDR
- DisplayPort
- 2x DisplayPort 2.1 ports, supporting a maximum resolution of 8K @ 30Hz, Support for HDCP 2.3, and HDR
- Integrated graphics required. Actual support may vary by CPU.
Expansion Slots
- CPU Direct
- 1x PCIe 5.0 x16 Physical, x16 Electrical slot
- Intel B860 Chipset
- 2x PCIe 4.0 x16 Physical, x1 Electrical slots
Storage
- CPU Direct
- 1x M.2 connector (Socket 3, M key, type 2280 PCIe 5.0 x4/x2 SSD support)(M2A_CPU)
- Intel B860 Chipset
- 1x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support)(M2N_SB)
- 4x SATA 6Gb/s ports
- Intel Rapid Storage Technology supports SATA RAID 0/1/5/10.
Additional information
Additional information
- Manufacturer's Site
- Visit the manufacturer's website
- Product Link
- Visit the manufacturer's page for this product
