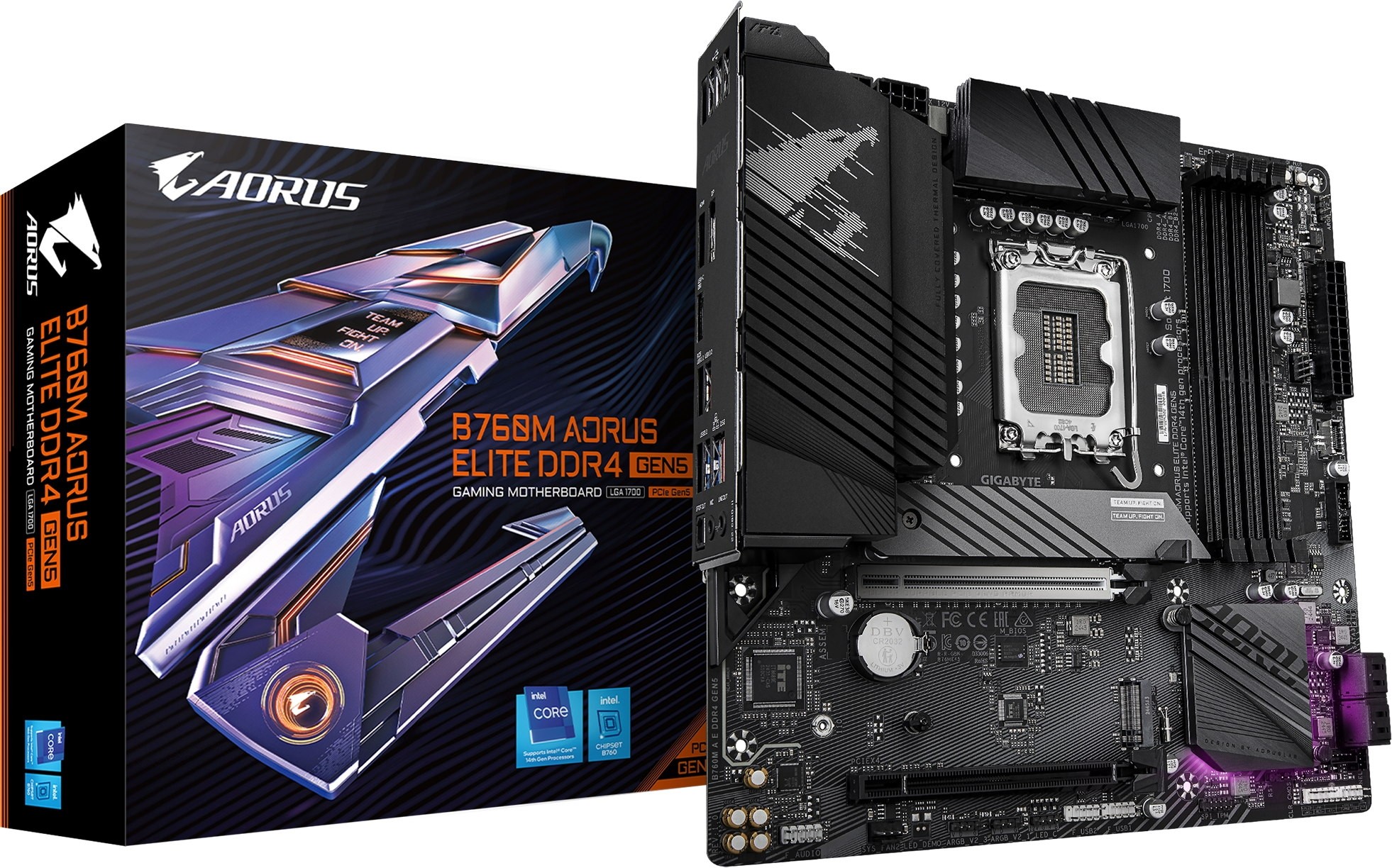

Gigabyte B760M AORUS ELITE DDR4 GEN5 Intel B760 LGA 1700 Raptor Lake Micro-ATX Desktop Motherboard
R3 099
Pricing visible is already subject to a 2% discount applicable only to EFT payments.
In stock with SupplierShips in2 - 5 business daysLimited stock with Supplier
From this brand
Gigabyte · 180 products
Overview
Overview
- Micro-ATX Form Factor
- Intel B760 Chipset
- Socket LGA 1700
- Supports Intel 12th, 13th, 14th Gen Processors
- Q-Flash Plus BIOS Flash Supports Future Processors
- 4x DDR4 DIMM Slots, Supports Up to 128GB (4x32GB)
- Supports up to DDR4-5333 (OC)
- Supports Intel XMP 2.0 Memory Modules
- 1x PCIe 5.0 x16 Slot (x16 Physical)
- 1x PCIe 4.0 x4 Slot (x16 Physical)
- 1x M.2 22110/2280 PCIe 4.0 x4 NVMe SSD Slot
- 1x M.2 2280 PCIe 4.0 x4 NVMe SSD Slot
- 4x SATA 3.0 Ports
- Supports USB 10Gbps Type-C Front-Panel Header
- 1x USB 20Gbps Type-C Port
- 1x USB 10Gbps Type-A Port
- 3x USB 5Gbps Type-A Ports
- 4x USB 2.0 Type-A Ports
- 1x HDMI 2.1 (TMDS) Port
- 1x DisplayPort 1.2 Port
- 2x 3.5mm Audio Jacks (Line Out, Microphone)
- 1x Optical S/PDIF Audio Out Port
- 2x Antenna Connectors
- Realtek 2.5 Gigabit Ethernet RJ-45 LAN Port
- Realtek ALC1220 High-Definition Audio Codec
- Thermal Armor Advanced Twin 12+1+1 Digital VRM Solution
- Gigabyte M.2 Thermal Guard
- Gigabyte RGB Fusion Software
- Gigabyte Smart Fan 6 Technology
- Gigabyte Control Center Utility
- Supports Windows 11 64-bit
- 3 Year Warranty
SPECIFICATIONS
- Brand
- Gigabyte
- Series
- AORUS Elite Motherboard Series
- Model
- MB-GB760MAED4
- CPU Support
- Supports Intel 12th, 13th, 14th Gen Processors
- Chipset
- Intel B760 Chipset
Memory Support
- Intel B760 Chipset
- Support for DDR4 5333(O.C.) / 5133(O.C.) / 5000(O.C.) / 4933(O.C.) / 4800(O.C.) / 4700(O.C.) / 4600(O.C.) / 4500(O.C.) / 4400(O.C.) / 4300(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 3000 / 2933 / 2666 / 2400 / 2133 MT/s memory modules
- 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
- Dual channel memory architecture
- Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
- Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
- Support for Extreme Memory Profile (XMP) memory modules
Video
- DisplayPort
- 1x DisplayPort 1.2 Port, supporting a maximum resolution of 4096x2304 @ 60Hz, supports HDCP, HDR
- HDMI
- 1x HDMI 2.1 Port (TMDS), supporting a maximum resolution of 4096x2160 @ 60Hz, supports HDCP, HDR
- Integrated graphics required. Actual support may vary by CPU.
Expansion Slots
- CPU Direct
- 1x PCIe 5.0 x16 Electrical Slots (x16 Physical) (PCIEX16)
- Intel B760 Chipset
- 1x PCIe 4.0 x4 Electrical Slots (x16 Physical) (PCIEX4)
Storage
- CPU Direct
- 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
- Intel B760 Chipset
- 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)
- 4x SATA 6Gbps connectors
- RAID 0, RAID 1, and RAID 10 support for SATA storage devices
Additional information
Additional information
- Manufacturer's Site
- Visit the manufacturer's website
- Product Link
- Visit the manufacturer's page for this product
