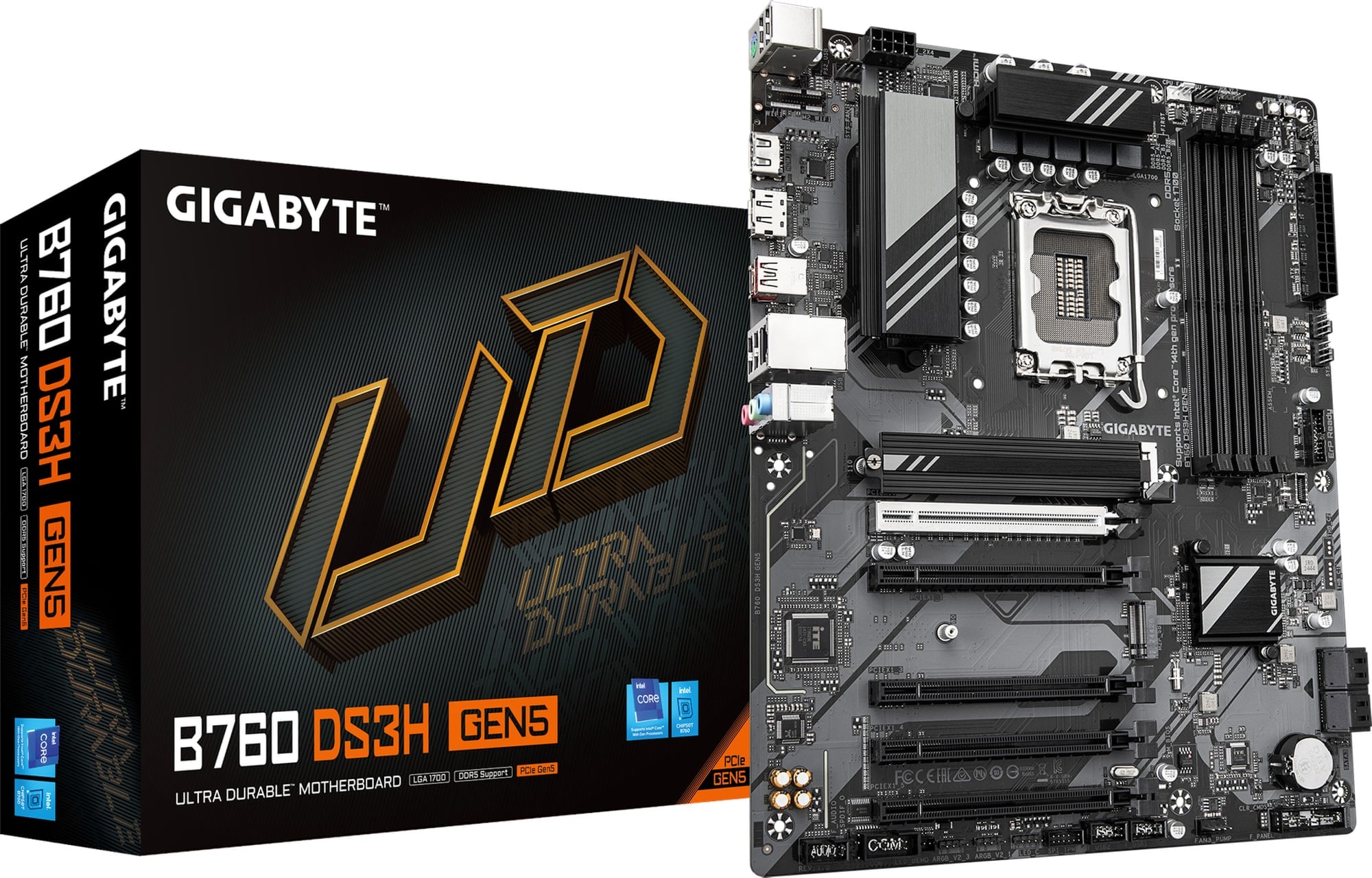

Gigabyte B760 DS3H GEN5 Intel B760 Raptor Lake LGA 1700 DDR5 ATX Desktop Motherboard
R2 957
Pricing visible is already subject to a 2% discount applicable only to EFT payments.
In stock with SupplierShips in2 - 5 business days
From this brand
Gigabyte · 180 products
Overview
Overview
- ATX Form Factor Motherboard
- Intel B760 Chipset
- LGA 1700 Socket Supports 12th, 13th, 14th Gen Core Processors
- 4x DDR5 DIMM Slots, Up to 256GB (4x64GB)
- Supports Up to DDR5-7600 (OC)
- Supports Intel XMP 3.0 Modules
- 1x PCIe 5.0 x16 Slot (x16 Physical)
- 4x PCIe 3.0 x1 Slots (x16 Physical)
- 1x M.2 2280 PCIe 4.0 x4 NVMe SSD Slot
- 1x M.2 22110/2280 PCIe 4.0 x4 NVMe SSD Slot
- 4x SATA 3.0 Ports
- Supports USB 5Gbps Type-C Front Panel Chassis Port
- 1x USB 20Gbps Type-C Port
- 1x USB 5Gbps Type-A Port
- 4x USB 2.0 Type-A Ports
- 1x DisplayPort 1.2 Port
- 1x HDMI 2.1 (TMDS) Port
- 1x PS/2 Combo Port (Keyboard, Mouse)
- 3x 3.5mm Audio Jacks
- Gigabit Ethernet RJ-45 LAN
- Realtek ALC897 High-Definition Audio Codec
- 8+2+1 Hybrid Digital VRM Solution
- Gigabyte EZ-DIY POST LED Array (CPU, MEM, VGA, BOOT)
- Gigabyte Q-Flash Plus BIOS Flashback
- Gigabyte EZ-Latch PCIe Slot Design
- Gigabyte Control Center with RGB Fusion
- Supports Windows 11 64-bit
- 3 Year Warranty
SPECIFICATIONS
- Brand
- Gigabyte
- Series
- DS3H Series
- Model
- B760 DS3H GEN5
- CPU Support
- LGA1700 socket with support for 12th, 13th, 14th Generation Intel Core, Pentium Gold and Celeron Processors
- Chipset
- Intel B760 Express
Memory Support
- Intel 12th, 13th & 14th Gen Series
- Support for DDR5 7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MT/s memory modules
- 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory
- Dual channel memory architecture
- Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
- Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
- Support for Extreme Memory Profile (XMP) memory modules
Video
- DisplayPort
- 1x DisplayPort 1.2 Port, supporting a maximum resolution of 4096x2160 @ 60 Hz, Support for DisplayPort 1.2 and HDCP 2.3
- HDMI
- 1x HDMI 2.1 TMDS port, supporting a maximum resolution of 4096x2160 @ 60 Hz, Support for HDMI 2.1 and HDCP 2.3
- Integrated Intel graphics required. Actual support may vary by CPU.
Expansion Slots
- CPU Direct
- 1x PCIe 5.0 x16 Physical, x16 Electrical Slot
- Intel B760 Chipset
- 4x PCIe 3.0 x16 Physical, x1 Electrical Slots
Storage
- CPU Direct
- 1x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
- Intel B760 Chipset
- 1x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)
- 4x SATA 3.0 6Gbps connectors
- Support for SATA RAID 0, RAID 1, RAID 5, and RAID 10
Additional information
Additional information
- Manufacturer's Site
- Visit the manufacturer's website
- Product Link
- Visit the manufacturer's page for this product
