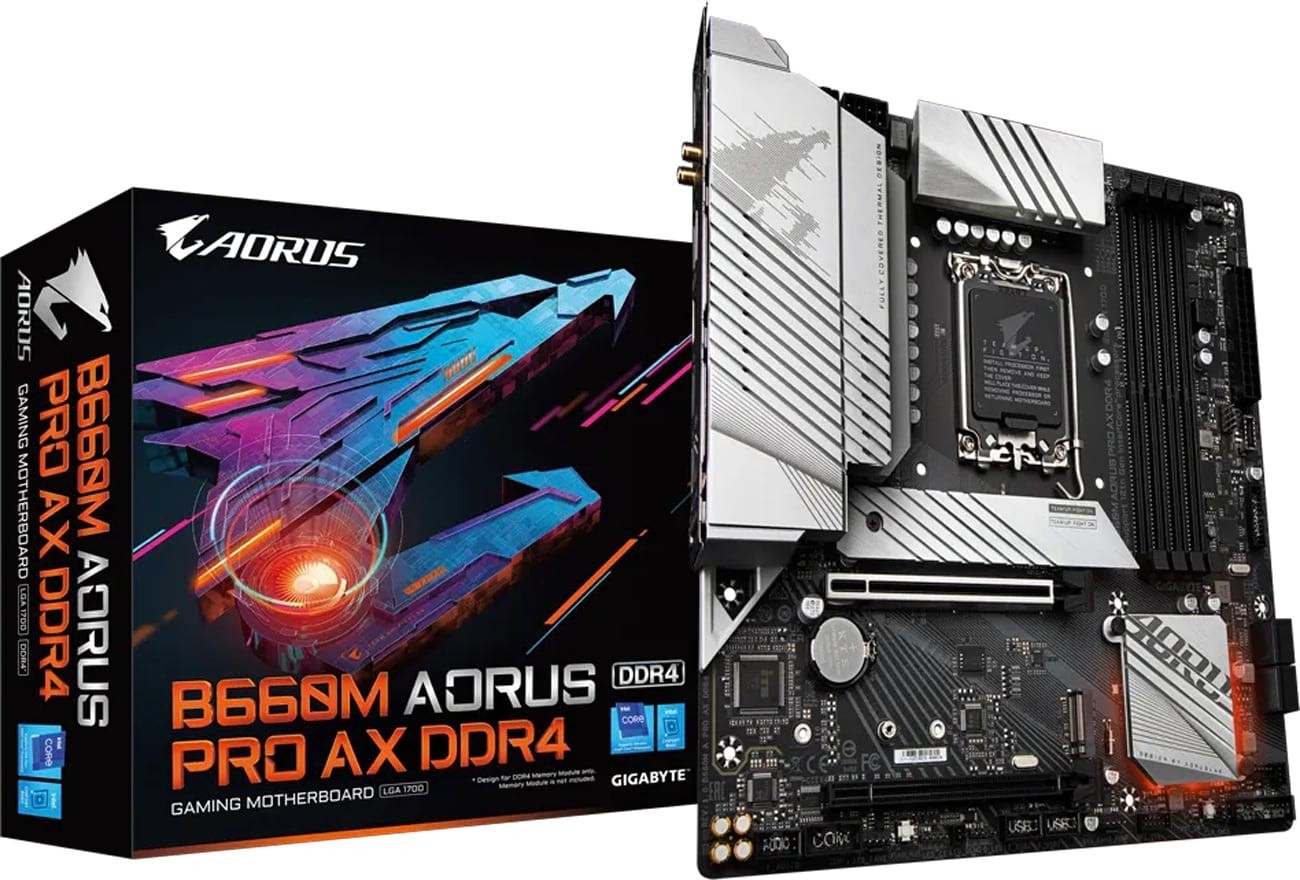

Gigabyte B660M Aorus Pro AX Wi-Fi DDR4 Intel B660M Alder Lake LGA1700 Micro-ATX Desktop Motherboard
Out of stockContact for AvailabilityEnquire below to confirm availability
MB-GB660MAPD4+W
ModelBrand New Only option
Configure
Build to orderOut of stock
From this brand
Gigabyte · 180 products
Overview
Overview
- Micro-ATX Form Factor
- Intel B660 Chipset
- LGA 1700 Socket
- 4x DIMM Slots, Supports Up to 128GB
- Support Up to: DDR4 5333(OC)
- 1x PCI Express Slot(PCIe x16), 1 x PCI Express Slot (PCIe x4)
- 4x SATA 6Gb/s Connectors, 2x M.2 (M-Key) Connectors
- 1x USB Type-C Port, With USB 3.2 Gen 2x2 Support, 4x USB 2.0/1.1 Ports
- 1x USB 3.2 Gen 2 Type-A Port (Red), 4x USB 3.2 Gen 1 Ports
- 1x HDMI, 1x DisplayPort, 2x Audio Jacks
- Realtek 7.1 Audio CODEC
- Intel 2.5GbE LAN Chip
- Advanced Thermal Solutions
- Gigabyte EasyTune Technology
- Gigabyte RGB Fusion Technology
- 3 Year Warranty
SPECIFICATIONS
- Brand
- Gigabyte
- Series
- Aorus PRO AX
- Model
- MB-GB660MAPD4+W
- CPU
- LGA 1700 Socket: Support For 12th Generation Intel Core, Pentium Gold and Celeron Processors
- L3 Cache Varies With CPU
- Please Refer To CPU Support List For More Information
- Chipset
- Intel B660 Express Chipset
- Memory
- Support For DDR4 5333(O.C.)/ DDR4 5133(O.C.)/DDR4 5000(O.C.)/4933(O.C.)/4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200/3000/2933/2666/2400/2133 MHz Memory Modules
- 4x DDR4 DIMM Sockets Supporting Up to 128 GB (32 GB Single DIMM Capacity) Of System Memory
- Dual Channel Memory Architecture
- Support For ECC Un-Buffered DIMM 1Rx8/2Rx8 Memory Modules (Operate In Non-ECC Mode)
- Support For Non-ECC Un-Buffered DIMM 1Rx8/2Rx8/1Rx16 Memory Modules
- Support For Extreme Memory Profile (XMP) Memory Modules
- Please Refer To Memory Support List For More Information
- Onboard Graphics
- 1x DisplayPort, Supporting a Maximum Resolution Of 4096x2304@60 Hz
- Support For DisplayPort 1.2 Version And HDCP 2.3
- 1x HDMI Port, Supporting a Maximum Resolution Of 4096x2160@60 Hz
- Support For HDMI 2.1 Version And HDCP 2.3.
- Support Native HDMI 2.1 TMDS Compatible Ports
- Audio
- Realtek Audio CODEC
- The Back Panel Line Out Jack Supports DSD Audio
- High Definition Audio
- 2/4/5.1/7.1-Channel
- Support for S/PDIF Out
- LAN
- Intel 2.5GbE LAN Chip(2.5 Gbps/1 Gbps/100Mbps)
- Wireless Communication Module
- WIFI a, b, g, n, ac, ax, Supporting 2.4/5 GHz Dual-Band
- BLUETOOTH 5.2
- Support For 11ax 160MHz Wireless Standard and Up to 2.4 Gbps Data Rate
- Actual Data Rate May Vary Depending On Environment And Equipment.
- Expansion Slots
- 1x PCI Express x16 Slot, Running At x16 (PCIEX16)
- (The PCIEX16 Slot Conforms To PCI Express 4.0 Standard)
- 1x PCI Express x16 Slot, Running At x4 (PCIEX4)
- The PCIEX4 Slot Shares Bandwidth With The M2M_SB Connector. The PCIEX4 Slot Becomes Unavailable When a Device Is Installed In The M2M_SB Connector
- Multi-Graphics Technology
- Support For AMD Quad-GPU CrossFire and 2-Way AMD CrossFire Technologies
Additional information
Additional information
- Manufacturer's Site
- Visit the manufacturer's website
- Product Link
- Visit the manufacturer's page for this product
Reviews
Customer reviews
5.0 ★★★★★ Based on 1 review
- ★★★★★ 5.0Justin Jesse
Fantastic product!
This is my first motherboard every but I can tell the quality difference from other mother boards, this product is highly recommended. It is powerful and sturdy, just make sure you are looking for a micro atx form factor
- Product Rating5/5
