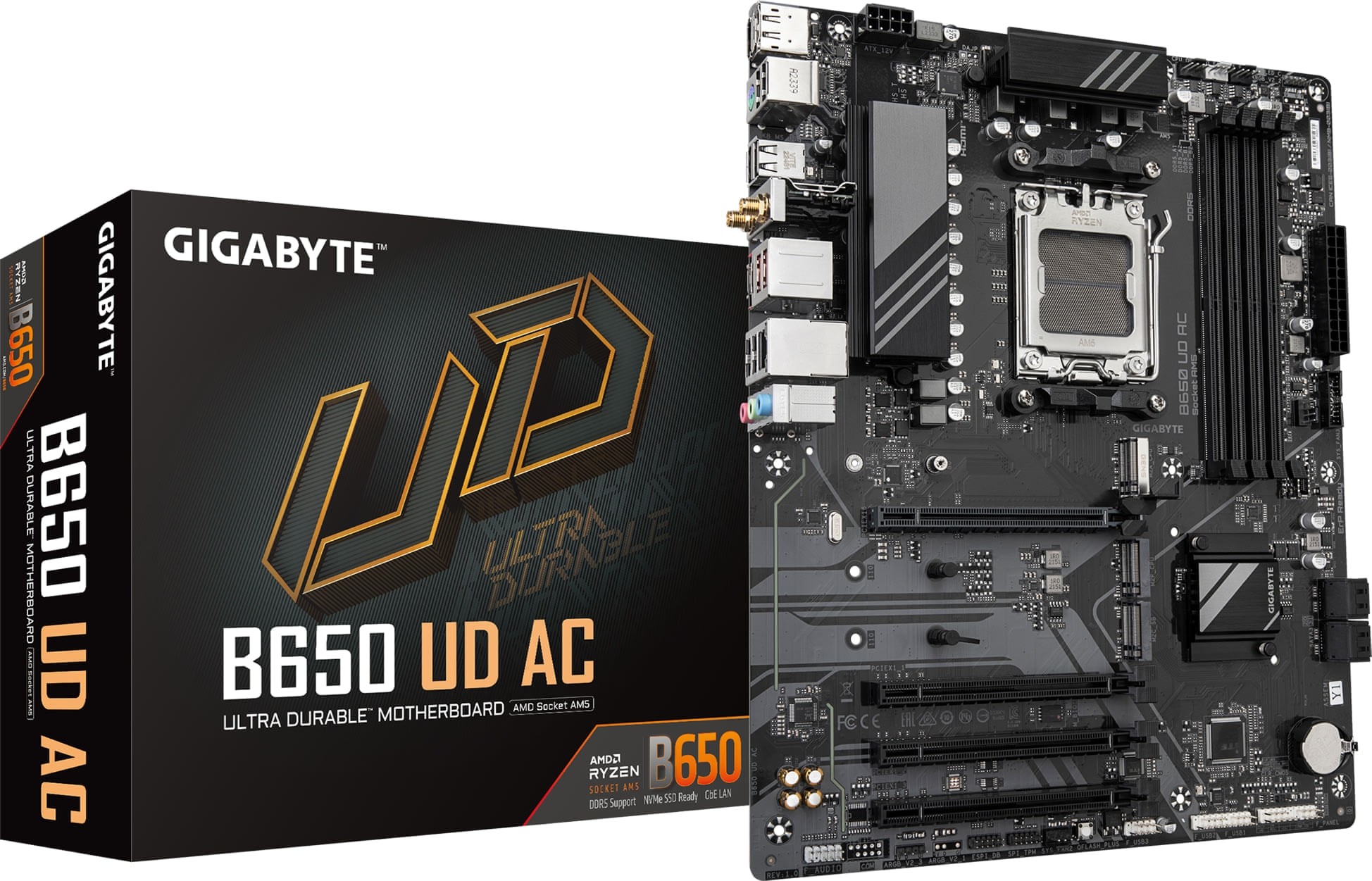

Gigabyte B650-UD-AC B650 UD AC WiFi AMD B650 Ryzen Socket AM5 ATX Desktop Motherboard
Out of stockIn stock with SupplierEnquire below to confirm availability
Out of stock
From this brand
Gigabyte · 180 products
Overview
Overview
- ATX Form Factor
- AMD B650 Chipset
- Socket AM5 Supports Ryzen 7000 & 8000 Series Processors
- 4x DDR5 DIMM Slots, Supports Up to 256GB
- Supports Up to DDR5-7600 (OC)
- Supports AMD EXPO & Intel XMP 3.0 Modules
- 1x PCIe 4.0 x16 Slot (x16 Physical)
- 2x PCIe 3.0 x1 Slots (x16 Physical)
- 1x M.2 25110 / 2580 PCIe 5.0 x4 NVMe SSD Slot
- 1x M.2 22110 / 2280 PCIe 4.0 x2 NVMe SSD Slot
- 1x M.2 22110 / 2280 PCIe 4.0 x4 NVMe SSD Slot
- 4x SATA 3.0 Ports
- Supports Front-Panel USB Type-C Port
- 1x USB 5Gbps Type-C Port
- 2x USB 10Gbps Type-A Ports
- 6x USB 2.0 Type-A Ports
- 1x DisplayPort 1.4 Port
- 1x HDMI 2.1 Port
- 3x 3.5mm Audio Jacks (Line In, Line Out, Microphone)
- 2x SMA Connectors
- 1x PS/2 Combo Port (Mouse/Keyboard)
- Realtek Gigabit Ethernet RJ-45 LAN
- Realtek WiFi 6 2x2 MIMO Dual-Band Adapter, Bluetooth 5.0
- Realtek High-Definition Audio Codec
- PCIe x16 EZ-Latch Quick-Release Mechanism
- Direct 6+2+2 Phase Digital VRM Solution
- Gigabyte Q-Flash Plus
- Gigabyte M.2 EZ-Latch
- Gigabyte Smart Fan 6 Technology
- Supports Windows 11 64-bit
- 3 Year Warranty
SPECIFICATIONS
- Brand
- Gigabyte
- Series
- Ultra Durable Series
- Model
- B650 Ultra Durable AC Rev 1.0 (B650-UD-AC-rev1.0)
- CPU Support
- Supports Ryzen 7000 & 8000 Series Processors
- Chipset
- AMD B650 Chipset
Memory Support
- AMD B650 Chipset
- Support for DDR5 7600(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5600(OC)/ 5200/ 4800 MT/s memory modules
- 4x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory
- Dual channel memory architecture
- Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
- Support for AMD EXtended Profiles for Overclocking (AMD EXPO) and Extreme Memory Profile (XMP) memory modules
Video
- DisplayPort
- 1x DisplayPort 1.4 Port, supporting a maximum resolution of 3840x2160@144 Hz, supports HDCP, HDR
- HDMI
- 1x HDMI 2.1 Port, supporting a maximum resolution of 4096x2160@60 Hz, supports HDCP, HDR
- Integrated graphics required. Actual support may vary by CPU.
Expansion Slots
- CPU Direct
- 1x PCIe 4.0 x16 Electrical Slots (x16 Physical)(PCIEX16)
- AMD B650 Chipset
- 3x PCIe 3.0 x1 Electrical Slots (x16 Physical)
- Slot Configurations
- PCIEX16 with Ryzen 8000 Phoenix 1 Processors support PCIe 4.0 x8 mode
- PCIEX16 with Ryzen 8000 Phoenix 2 Processors support PCIe 4.0 x4 mode
Storage
- CPU Direct
- 1x M.2 25110 / 2580 PCIe 5.0 x4 NVMe SSD Slot (M2A_CPU)
- 1x M.2 22110 / 2280 PCIe 4.0 x2 NVMe SSD Slot (M2P_CPU)
- AMD B650 Chipset
- 1x M.2 22110 / 2280 PCIe 4.0 x4 NVMe SSD Slot (M2C_SB)
- 4x SATA 6Gb/s connectors
- RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices
- RAID 0, RAID 1, and RAID 10 support for SATA storage devices
- Storage Configurations
- M2A_CPU with Ryzen 8000 Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
- M2A_CPU with Ryzen 8000 Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs
- M2P_CPU with Ryzen 8000 Phoenix 1 Processors support PCIe 4.0 x2 SSDs
- M2P_CPU with Ryzen 8000 Phoenix 2 Processors support PCIe 4.0 x2 SSDs
