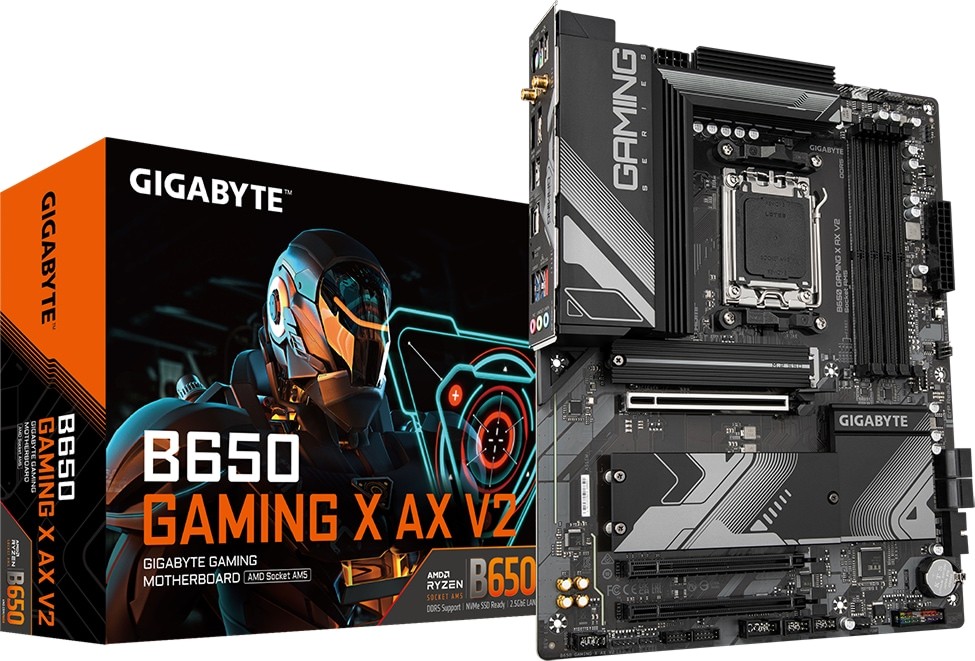

Gigabyte B650 GAMING X AX V2 rev 1.0 AMD B650 Ryzen Socket AM5 ATX Desktop Motherboard
Out of stockContact for AvailabilityEnquire below to confirm availability
Out of stock
From this brand
Gigabyte · 180 products
Overview
Overview
- ATX Form Factor
- AMD B650 Chipset
- Socket AM5
- Supports Ryzen 8000-Series Processors
- 4x DDR5 DIMM Slots, Supports Up to 256GB
- Supports up to DDR5-8000MHz (OC)
- 1x PCIe 4.0 x16 Slot
- 2x PCIe 3.0 x1 Slots (x16 Physical)
- 3x M.2 25110 / 2280 PCIe 4.0 x4 NVMe SSD Slots
- 4x SATA 3.0 Ports
- 1x USB 10Gb/s Type-C Port
- 1x USB 10Gb/s Type-A Port
- 3x USB 5Gb/s Type-A Ports
- 3x USB 2.0 Type-A Ports
- 1x DisplayPort 1.4, 1x HDMI 2.1
- 3x 3.5mm Audio Jacks (Line In, Line Out, Microphone)
- 2x SMA Connectors, 1x PS/2 Port
- Realtek 2.5 Gigabit Ethernet RJ-45 LAN
- Realtek WiFi 6E 2x2 MIMO Tri-band Adapter, Bluetooth 5.3
- Realtek High-Definition Audio Codec
- PCIe x16 EZ-Latch Quick-Release Mechanism
- Direct 8+2+1 Phases Digital VRM Solution
- Gigabyte Q-Flash BIOS Flash Button
- Gigabyte M.2 Thermal Guard
- Gigabyte Smart Fan 6 Software
- Supports Windows 10, Windows 11 64-bit
- 3 Year Warranty
SPECIFICATIONS
- Brand
- Gigabyte
- Series
- GAMING X
- Model
- B650 GAMING X AX (GA-B650-GAMING-X-AX) Rev 1.0 / 1.1
- CPU Support
- Supports Ryzen 7000-Series Processors
- Chipset
- AMD B650 Chipset
Memory Support
- AMD B650 Chipset
- DDR5 8000(OC)/ 7800(OC)/ 7600(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5600(OC)/ 5200/ 4800/ 4400 MHz memory modules
- 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory
- Dual channel memory architecture
- Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
- Support for AMD EXtended Profiles for Overclocking (AMD EXPO) and Extreme Memory Profile (XMP) memory modules
Video
- DisplayPort
- 1x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz, Support for DisplayPort 1.4 version and HDR.
- HDMI
- 1x HDMI 2.1 TMDS port, supporting a maximum resolution of 4096x2160@60 Hz, Support for HDMI 2.1 version and HDCP 2.3.
- Integrated graphics required. Actual support may vary by CPU.
Expansion Slots
- CPU Direct
- 1x PCIe 4.0 x16 Physical, x16 Electrical Slot
- AMD B650 Chipset
- 2x PCIe 3.0 x16 Phyical, x16 Electrical Slots
Storage
- CPU Direct
- 2x M.2 Slots (Socket 3, M key, type 25110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU, M2B_CPU)
- AMD B650 Chipset
- 1x M.2 Slot (Socket 3, M key, type 25110/2280 PCIe 4.0 x4/x2 SSD support) (M2C_SB)
- 4x SATA 6Gb/s connectors
- RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices
- RAID 0, RAID 1, and RAID 10 support for SATA storage devices
Additional information
Additional information
- Manufacturer's Site
- Visit the manufacturer's website
- Product Link
- Visit the manufacturer's page for this product
Reviews
Customer reviews
5.0 ★★★★★ Based on 1 review
- ★★★★★ 5.0King Meliodas
Great Mid Range
This motherboard is packed with features and offers excellent build quality. The Wi-Fi connectivity and overall stability are remarkable, making it a fantastic choice for AM5 builds. And also, the packaging is top-notch.
- Product Rating5/5
Questions
Questions & answers
No questions yet
Be the first to ask about this product. Our team typically answers within a business day.
