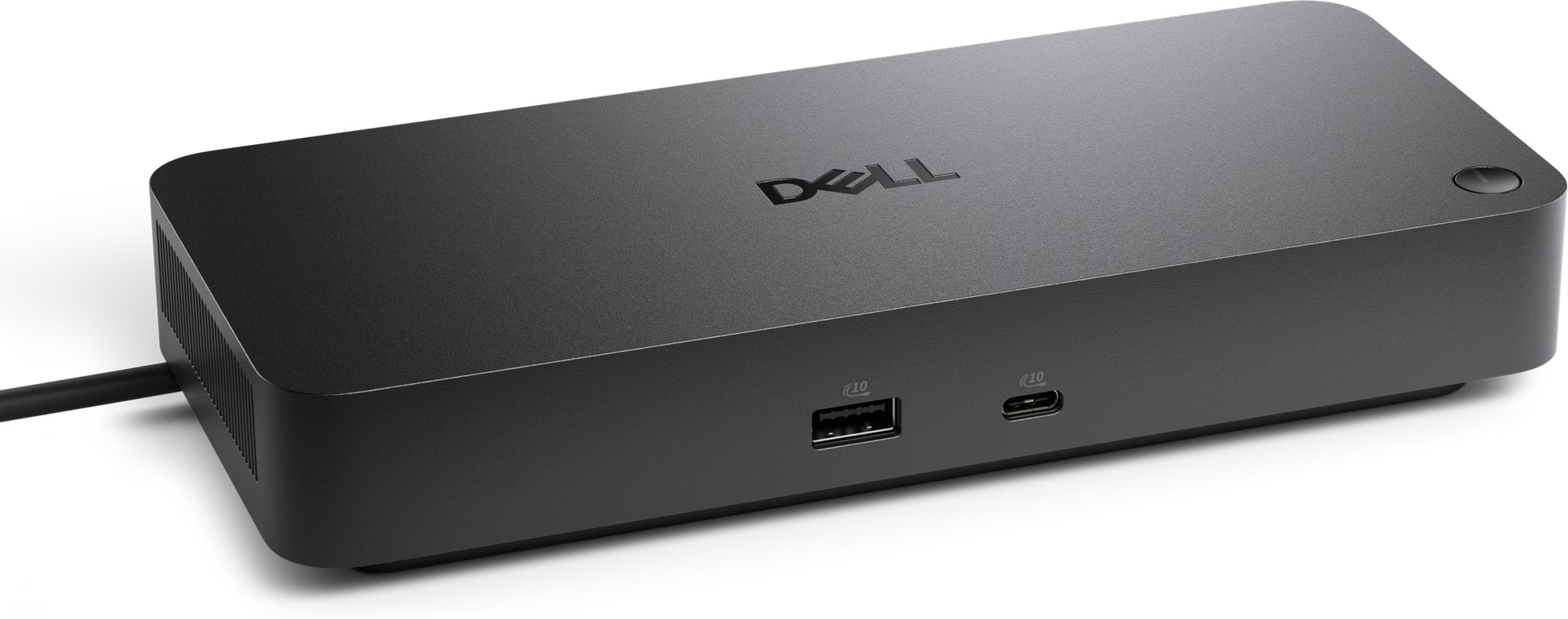

Dell 210-BTHY Pro Thunderbolt 4 WD25TB4 USB Type-C Quad Display Multi-Port 130W Black Docking Station
R5 299
Pricing visible is already subject to a 2% discount applicable only to EFT payments.
Please note:Please consult your device's manual and the Dell Pro Thunderbolt 4 Dock WD25TB4 User's Guide to confirm compatibility before purchase.
For full functionality, your host PC must support USB Type-C with DisplayPort Alt Mode, utilising Display Stream Compression (DSC).
For full functionality, your host PC must support USB Type-C with DisplayPort Alt Mode, utilising Display Stream Compression (DSC).
Dell Pro Thunderbolt Docking Stations
Switch variantModelWD25TB4 | 130W
- WD25TB4 | 130W
SpecificationThunderbolt 4 | Quad Display Only option
In stock with SupplierShips in2 - 5 business days
From this brand
Dell · 97 products
Overview
Overview
- Thunderbolt 4 USB Type-C Multiport Dock
- Integrated Power Button (Dell Laptops Only)
- 130W Power Delivery Pass-Through (Dell Laptops Only)
- 96W Universal Power Delivery Pass-Through
- Thunderbolt 3 Backwards Compatible
- USB 3.2, 3.1, 4.0 Backwards/Forwards Compatible
- 1x Thunderbolt 4 USB Type-C Connector (Upstream, DisplayPort, Power Delivery)
- 2x Thunderbolt 4 USB Type-C Ports (Downstream, DisplayPort 1.4)
- 1x USB 10Gbps Type-C Port (Downstream, DisplayPort 2.1)
- 1x USB 10Gbps Type-C Port (Downstream)
- 4x USB 10Gbps Type-A Ports (Downstream)
- 1x HDMI 2.1 Port (FRL, Downstream)
- 2x DisplayPort 1.4 Ports (DSC, Downstream)
- 1x Dell Power Port (180W Input)
- 1x 2.5 Gigabit Ethernet RJ-45 Port (Downstream)
- Plug-And-Play Operation, AC Powered
- Supports Windows 11, Ubuntu 24.04, RHEL 9.7, ChromeOS, macOS
- Multi-Display Support: Up to 4x Displays (Limitations Apply)
- Requires DisplayPort Alt Mode MST Support
- Colour: Black
- 3 Year Limited Warranty
Read the User's Guide Here
SPECIFICATIONS
- Brand
- Dell
- Series
- Thunderbolt USB Type-C Docks
- Model
- Pro Thunderbolt 4 130W Dock (210-BTHY / WD25TB4)
Connectivity
- Upstream Port
- 1x Thunderbolt 4 USB Type-C Connector (DisplayPort 1.4, 96W - 130W Power Delivery)
- Downstream Ports
- 2x Thunderbolt 4 USB Type-C Ports (DisplayPort 1.4)
- 1x USB 10Gbps Type-C Port (DisplayPort 2.1)
- 1x USB 10Gbps Type-C Port
- 4x USB 10Gbps Type-A Ports
- 1x HDMI 2.1 Port (FRL)
- 2x DisplayPort 1.4 Ports (DSC)
- 1x Dell Power Port (Up to 180W Input)
- 1x 2.5 Gigabit Ethernet RJ-45 Port
- Power Source
- AC Adapter, 180W (supplied in box)
- Cable Length
- 830mm, Integrated
Video Output (Host Supporting DSC)
- HDMI
- 1x HDMI 2.1 Port with FRL, supports up to 8K @ 60Hz, supports HDCP & HDR
- DisplayPort
- 2x DisplayPort 1.4 DSC Ports, supports up to 8K @ 60Hz, supports HDCP & HDR
- Thunderbolt
- 2x Thunderbolt 4 Ports with DisplayPort 1.4 DSC, supports up to 8K @ 60Hz, supports HDCP & HDR
- 1x USB 10Gbps Type-C Port with DisplayPort 1.4 DSC, supports up to 8K @ 60Hz, supports HDCP & HDR
- Setup Notes
- Computers with Thunderbolt 3 ports may have lower maximum supported resolutions. Please consult your product manual and the Dell Thunderbolt 4 dock user's guide for support.
- Computers with USB Type-C ports with DisplayPort, but not DSC, may have lower maximum supported resolutions. Please consult your product manual and the Dell Thunderbolt 4 dock user's guide for support.
Display Support (Host Supporting DSC)
- Single Display
- Up to 8K (7680x4320) @ 60Hz (HDMI, DisplayPort, Thunderbolt/USB-C)
- Dual Displays
- Up to 6K (6144x3456) @ 60Hz (HDMI, DisplayPort, Thunderbolt/USB-C)
- Triple Display
- Up to 3x 4K (3840x2160) @ 60Hz Monitors (HDMI, DisplayPort, Thunderbolt/USB-C)
- Quad Display
- Up to 4x 4K (3840x2160) @ 60Hz Monitors (HDMI, DisplayPort, Thunderbolt/USB-C)
- Apple Multi-Display Support
- Multi-Display support is possible on Macbook Air, Macbook Pro, Mac Mini, Mac Studio, iMac displays, but support may vary between Apple silicon versions and SKUs.
- Multi-Display on Macbook Neo is not supported.
- Setup Notes
- To enable 8K (7680x4320) support, two DisplayPort 1.4 cables must be used to connect to the monitor.
