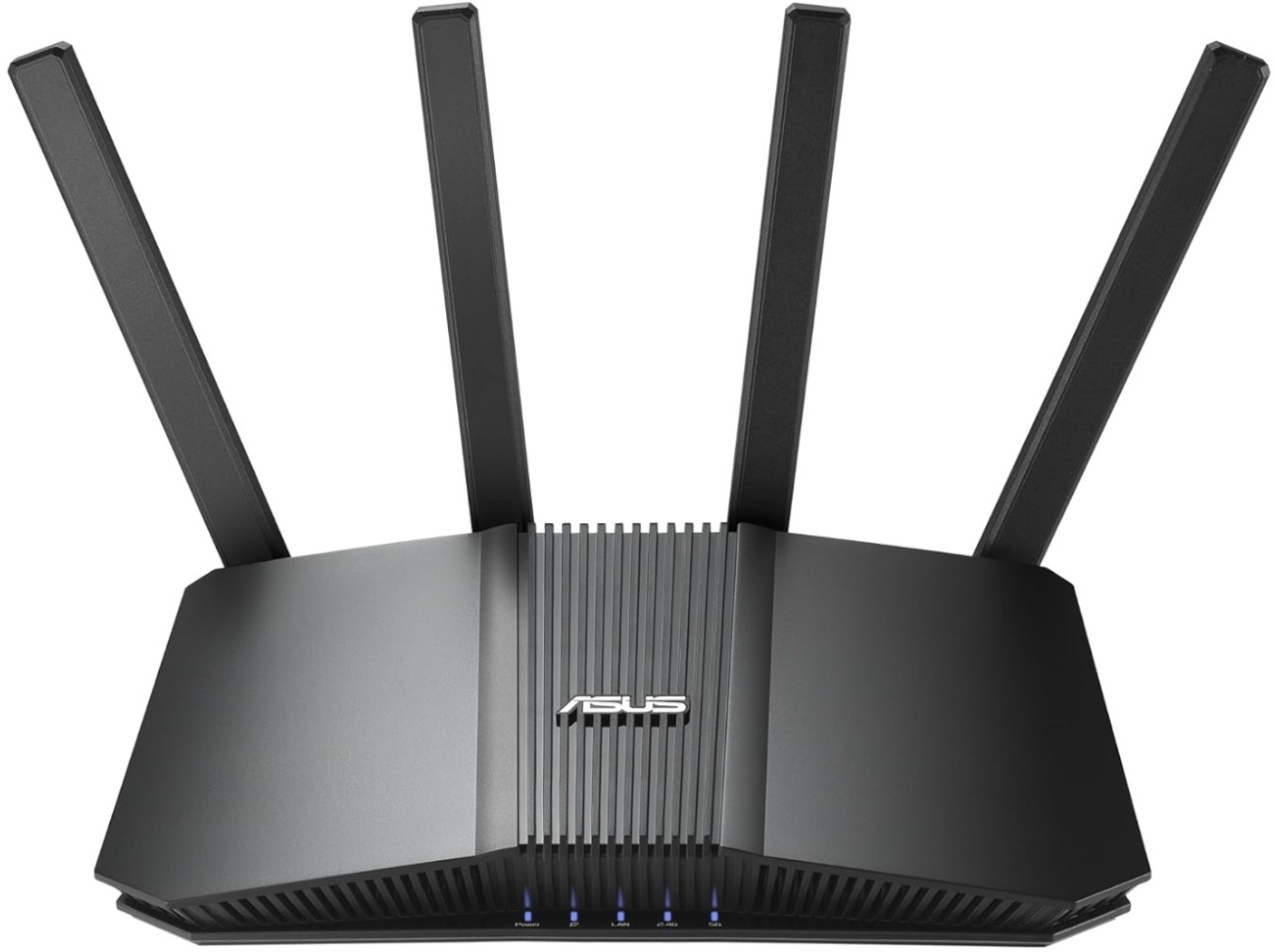

ASUS RT-BE82U WiFi 7 Dual-Band AiMesh 2.5 Gigabit Wireless Router

SPECIFICATIONS

Brand

ASUS

Series

Routers

Model

RT-BE82U

Network Standard

• IPv6
• IPv4
• WiFi 7 (802.11be)
• WiFi 6 (802.11ax)
• WiFi 5 (802.11ac)
• WiFi 4 (802.11n)
• IEEE 802.11g
• IEEE 802.11b
• IEEE 802.11a

Product Segment

BE6500 ultimate BE performance : 688 5764 Mbps

WiFi Data Rate

• WiFi 7 (802.11be) (5GHz): up to 5764 Mbps
• WiFi 7 (802.11be) (2.4GHz): up to 688 Mbps

Antenna

External antenna x 4

Transmit / Receive

• 5GHz 4x4
• 2.4GHz 2x2

Processor

2.0 GHz quad-core processor

Memory

• 256 MB Flash
• 1 GB RAM

Boosts Speed

• OFDMA (Orthogonal Frequency Division Multiple Access)
• Beamforming: standard-based and universal
• 4096-QAM high data rate
• 20/40/80/160 MHz bandwidth

Operating Frequency

• 5 GHz
• 2.4 GHz

Operating Mode

• Repeater Mode
• Media Bridge Mode
• Access Point Mode
• AiMesh Node Mode
• Wireless Router Mode

I/O Ports

• 1x 2.5G for WAN
• 4x 2.5G for LAN
• USB 3.2 Gen 1 x 1

Buttons

• WPS Button
• Reset Button
• Power Button

LED Indicator

• Power x 1
• WAN x 1
• LAN x 1
• 2.4GHz WiFi x 1
• 5GHz WiFi x 1

Power Supply

• AC Input : 100V~240V (50~60Hz)
• DC Output : 12 V with max. 3 A current

Package Content

• RT-BE82U
• RJ-45 cable
• Power adapter
• Quick Start Guide
• Warranty card

Product Weight

502g

Product Dimensions

238 x 147 x 97 mm

AiMesh

• AiMesh
• Primary AiMesh Router
• AiMesh Node

Parental Control

• Allow you to block access to unwanted websites and apps.
• Web & Apps Filters
• Time Scheduling
• Safe Browsing
• Customized Internet Schedule

Guest Network

• The Guest Network provides Internet connection for guests but restricts access to your local network.
• Support Guest Network
• Maximum Guest Network Rule : 2.4GHz x3
• 5GHz x3
• Guest Network Connection Time Limit

Security

• AiProtection
• VPN
• WPS support
• WPA/WPA2/WPA3-Personal
• WPA/WPA2-Enterprise
• WPS
• Let's Encrypt
• DNS-over-TLS
• SSH
• Security Scan
• Firewall
• Maximum Firewall Keyword Filter : 64
• Maximum Firewall Network Service Filter : 32
• Maximum Firewall URL Filter : 64

AiProtection

• Router Security Assessment
• Malicious Site Blocking
• Two-Way IPS
• Infected Device Prevention and Blocking

VPN

• Instant Guard
• VPN Client L2TP
• VPN Client Open VPN
• VPN Client PPTP
• VPN Client WireGuard
• VPN Server IPSec
• VPN Server Open VPN
• VPN Server PPTP
• VPN Server WireGuard

Traffic Control

• Adaptive QoS
• Bandwidth Monitor
• Bandwidth Limiter
• Maximum Bandwidth Limiter Rule : 32
• Traditional QoS
• Maximum Traditional QoS Rule : 32
• Traffic Monitor
• Real-time Traffic Monitor
• Wired Traffic Monitor
• Wireless Traffic Monitor
• Traffic Analyzer
• Traffic Analysis Period : Daily
• Weekly
• Monthly
• Website History

WAN

• Internet connection Type : PPPoE
• PPTP
• L2TP
• Automatic IP
• Static IP
• Dual WAN
• 3G / 4G LTE dongle
• 4G / 5G Auto Mobile Tethering
• Port forwarding
• Maximum Port Forwarding Rule : 64
• Port triggering
• Maximum Port Triggering Rule : 32
• DMZ
• DDNS
• NAT Passthrough : PPTP Pass-Through
• L2TP Pass-Through
• IPSec Pass-Through
• RTSP Pass-Through
• H.323 Pass-Through
• SIP Pass-Through
• PPPoE relay

LAN

• DHCP Server
• IGMP Snooping
• IPTV
• Manually Assign IP Address
• Maximum Manually Assign IP Address Rule : 64
• Wake on LAN (WOL)

Wireless

• MU-MIMO
• UTF-8 SSID
• WiFi MAC Address Filter
• Maximum MAC Filters : 64
• Wireless Scheduler
• Airtime Fairness
• RADIUS Client
• Universal Beamforming
• Explicit Beamforming

USB Application

• 4G / 5G Auto Mobile Tethering
• File System : HFS
• NTFS
• vFAT
• ext2
• ext3
• ext4
• Safely Remove Disk
• AiCloud
• Download Master
• AiDisk
• Media Server
• Time Machine
• Samba Server
• FTP Server
• Shared Folder Privileges

User Interface

• WEB: ASUSWRT
• APP: ASUS Router APP

Administration

• Configuration Backup and Restore
• Diagnosis tools
• Feedback System
• System Log
• New Device Connect Notification
• Login Captcha
• Connection Diagnosis
• Auto Firmware Update
