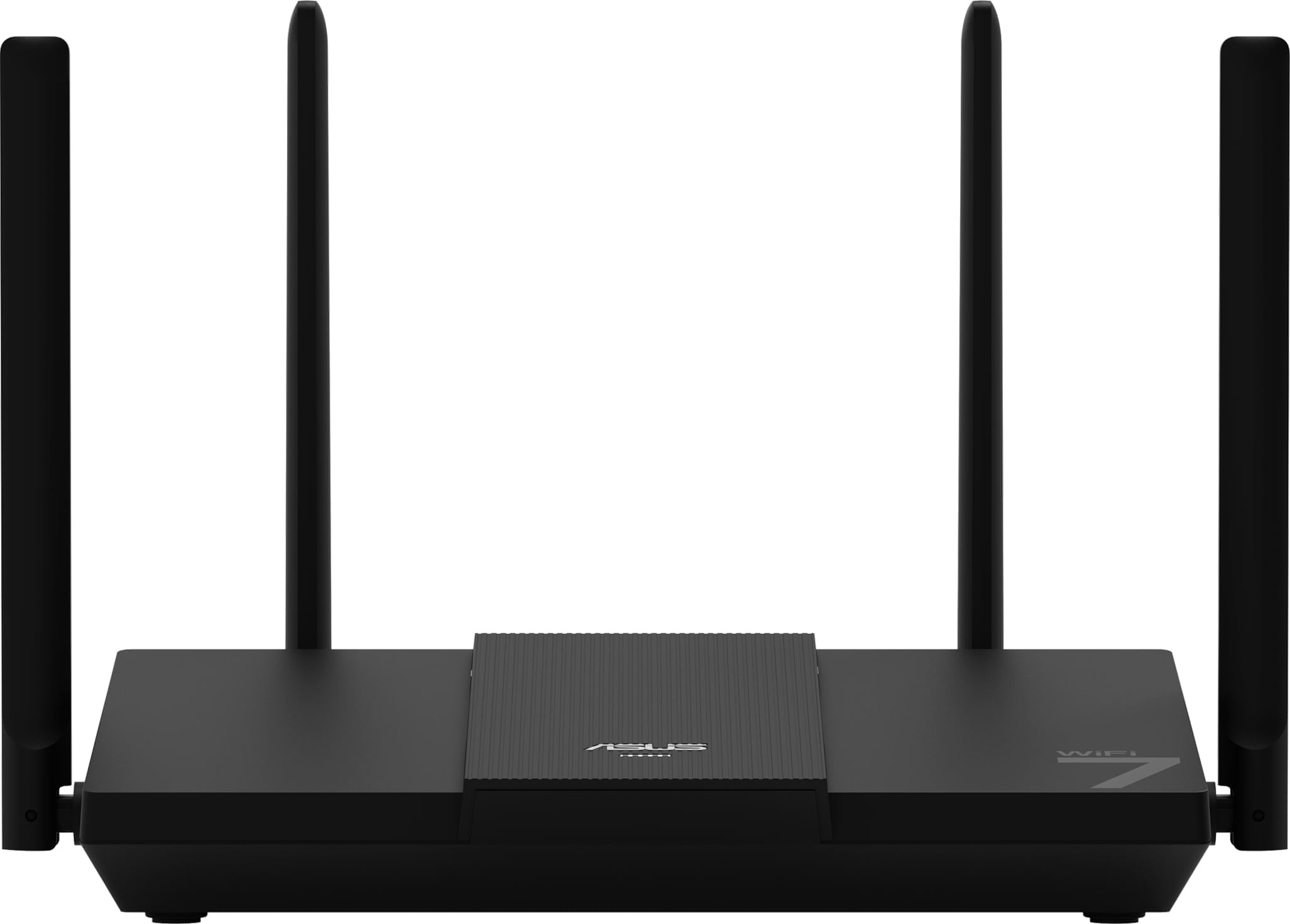

ASUS RT-BE50 BE3600 WiFi 7 Dual-Band 2x2 AiMesh Extendable Router

SPECIFICATIONS

Brand

ASUS

Series

RT-BE Series

Model

RT-BE50

Network Standard

• IEEE 802.11a
• IEEE 802.11b
• IEEE 802.11g
• WiFi 4 (802.11n)
• WiFi 5 (802.11ac)
• WiFi 6 (802.11ax)
• WiFi 7 (802.11be)
• IPv4
• IPv6

Product Segment

BE3600 ultimate BE performance : 688+2882 Mbps

WiFi Data Rate

• 802.11a : up to 54 Mbps
• 802.11b : up to 11 Mbps
• 802.11g : up to 54 Mbps
• WiFi 7 (802.11be) (2.4GHz): up to 688 Mbps
• WiFi 7 (802.11be) (5GHz): up to 2882 Mbps

Antenna

External antenna x 4

Transmit / Receive

• 2.4GHz 2x2
• 5GHz 2x2

Processor

Quad-core processor

Memory

• 128 MB Flash
• 256 MB RAM

Boosts Speed

• OFDMA (Orthogonal Frequency Division Multiple Access)
• Beamforming: standard-based and universal
• 4096-QAM high data rate
• 20/40/80/160 MHz bandwidth

Operating Frequency

• 2.4GHz / 5GHz
• 2.4 GHz
• 5 GHz

Operating Mode

• Wireless router mode
• Access point mode
• Media bridge mode
• Wireless Router Mode
• AiMesh Node Mode
• Range Extender Mode
• Access Point Mode
• Media Bridge Mode
• Repeater Mode

I/O Ports

• 1x 2.5G for WAN,
• 3x 1G for LAN

Buttons

WPS Button, Reset Button

LED Indicator

Power x 1

Power Supply

• AC Input : 100V~240V (50~60Hz)
• DC Output : 12 V with max. 1.5 A current

Package Content

• RT-BE50
• RJ-45 cable
• Power adapter
• Quick Start Guide
• Warranty card

Product Weight

450g

Product Dimensions

261mm x 156mm x 50mm

AiMesh

• AiMesh
• - Primary AiMesh Router
• - AiMesh Node

Parental Control

• Allow you to block access to unwanted websites and apps.
• Web & Apps Filters
• Time Scheduling
• Safe Browsing
• Customized Internet Schedule

Guest Network

• The Guest Network provides Internet connection for guests but restricts access to your local network.
• Support Guest Network
• - Maximum Guest Network Rule : 2.4GHz x3, 5GHz x3
• Guest Network Connection Time Limit

Security

• VPN
• WPS support, WPA/WPA2/WPA3-Personal, WPA/WPA2-Enterprise
• WPS
• Let's Encrypt
• DNS-over-TLS
• SSH
• Security Scan
• Firewall
• - Maximum Firewall Keyword Filter : 64
• - Maximum Firewall Network Service Filter : 32
• - Maximum Firewall URL Filter : 64

VPN

• Instant Guard
• VPN Client L2TP
• VPN Client Open VPN
• VPN Client PPTP
• VPN Client WireGuard
• VPN Server IPSec
• VPN Server Open VPN
• VPN Server PPTP
• VPN Server WireGuard
• VPN Fusion

Traffic Control

• - Bandwidth Monitor
• - Bandwidth Limiter
• -- Maximum Bandwidth Limiter Rule : 32
• Traditional QoS
• -- Maximum Traditional QoS Rule : 32
• Traffic Monitor
• - Real-time Traffic Monitor
• - Wired Traffic Monitor
• - Wireless Traffic Monitor
• Traffic Analyzer
• - Traffic Analysis Period : Daily, Weekly, Monthly
• - Website History

WAN

• Internet connection Type : PPPoE, PPTP, L2TP, Automatic IP, Static IP
• Port forwarding
• - Maximum Port Forwarding Rule : 64
• Port triggering
• - Maximum Port Triggering Rule : 32
• DMZ
• DDNS
• NAT Passthrough : PPTP Pass-Through, L2TP Pass-Through, IPSec Pass-Through, RTSP Pass-Through, H.323 Pass-Through, SIP Pass-Through, PPPoE relay

LAN

• DHCP Server
• IGMP Snooping
• IPTV
• Manually Assign IP Address
• - Maximum Manually Assign IP Address Rule : 64
• Wake on LAN (WOL)

Wireless

• MU-MIMO
• UTF-8 SSID
• WiFi MAC Address Filter
• - Maximum MAC Filters : 64
• Wireless Scheduler
• Airtime Fairness
• RADIUS Client
• Universal Beamforming
• Explicit Beamforming

Administration

• Configuration Backup and Restore
• Diagnosis tools
• Feedback System
• System Log
• New Device Connect Notification
• Login Captcha
• Connection Diagnosis
• Auto Firmware Update
