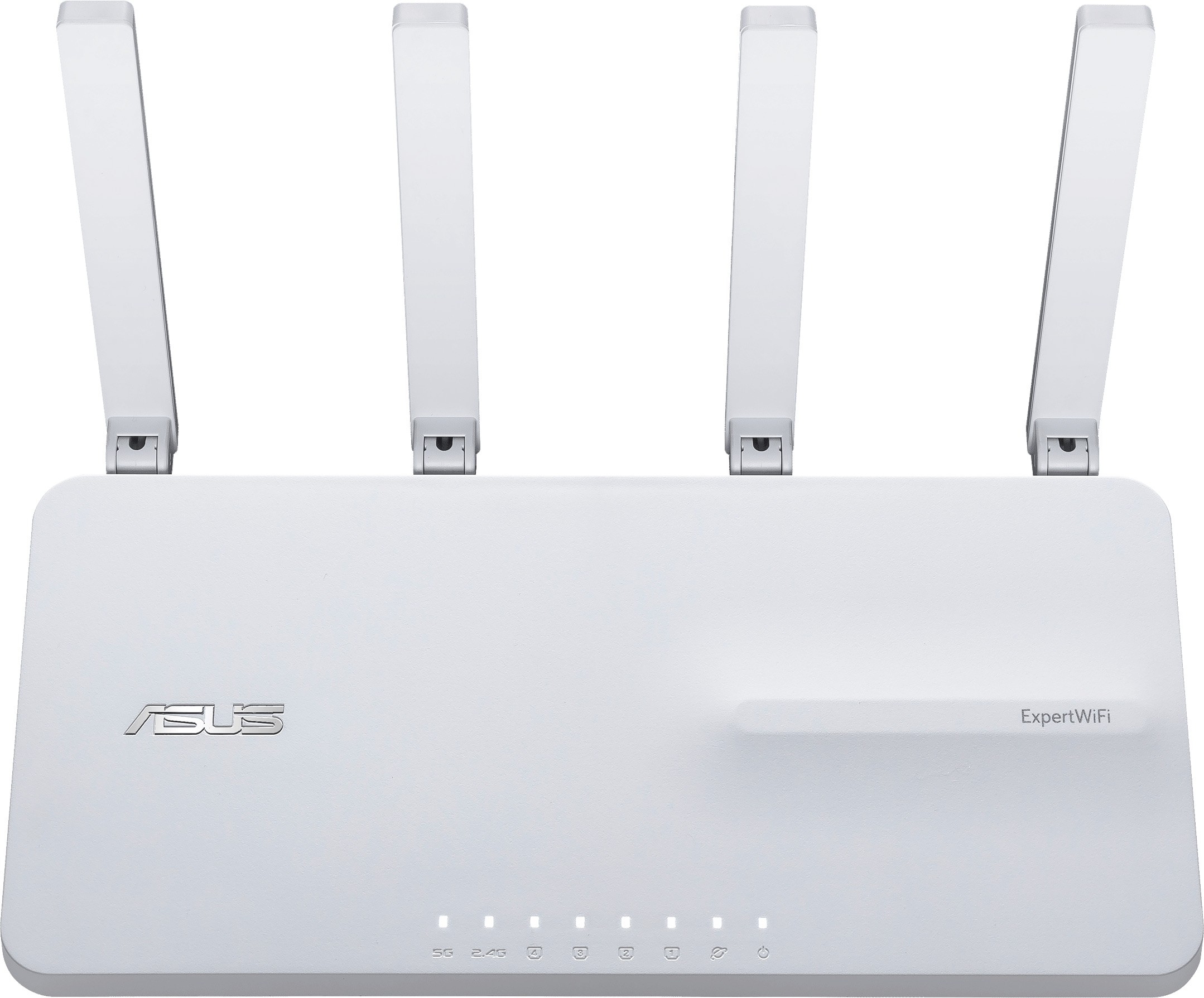

ASUS ExpertWiFi EBR63 AX3000 WiFi 6 Dual-Band AiMesh Extendable Router

SPECIFICATIONS

Brand

ASUS

Series

ExpertWiFi

Model

ExpertWiFi EBR63

Network Standard

• IEEE 802.11a
• IEEE 802.11b
• IEEE 802.11g
• WiFi 4 (802.11n)
• WiFi 5 (802.11ac)
• WiFi 6 (802.11ax)
• IPv4
• IPv6

Product Segment

AX3000 ultimate AX performance : 2402 Mbps+ 574 Mbps

Data Rate

• 802.11a : up to 54 Mbps
• 802.11b : up to 11 Mbps
• 802.11g : up to 54 Mbps
• WiFi 4 (802.11n) : up to 300 Mbps
• WiFi 5 (802.11ac) : up to 1734 Mbps
• WiFi 6 (802.11ax) (2.4GHz) : up to 574 Mbps
• WiFi 6 (802.11ax) (5GHz) : up to 2402 Mbps

Antenna

4 External Antenna

Transmit / Receive

• 2.4GHz 2x2
• 5GHz 2x2

Processor

1.7GHz quad-core processor

Memory

• 256MB FLASH
• 512MB RAM

Boosts Speed

• OFDMA (Orthogonal Frequency Division Multiple Access)
• Beamforming: standard-based and universal
• 1024-QAM high data rate
• 20/40/80/160 MHz bandwidth

Operating Frequency

• 2.4 GHz
• 5 GHz

Operating Mode

• Wireless Router Mode
• AiMesh Node Mode
• Access Point Mode

I/O Ports

• 1x RJ45 for Gigabits BaseT for WAN
• 4x RJ45 for Gigabits BaseT for LAN
• 1x USB 3.2 Gen 1 Type-A
• 1x USB 2.0 Type-A

Buttons

WPS Button, Reset Button, Power Switch

LED Indicator

POWER, WAN, LAN, 5G, 2.4G

Power Supply

• AC Input : 110V~240V(50~60Hz)
• DC Output : 12V with max. 2A current

Mounting

Wall Mount

Product Dimentions

225mm * 127mm * 146mm

AiMesh

• AiMesh
• - Primary AiMesh Router
• - AiMesh Node

Device Access Control

• Allow you to block access to unwanted websites and apps
• Web & Apps Filters
• Time Scheduling
• Safe Browsing
• Customized Internet Schedule
• - Maximum Device Access Control Profile :12
• - Maximum Device Access Control Content Filter Rule :12

Dashboard

Dashboard

Self-Defined Network

• Self-Defined Network Type
• - Employee
• - Guest Portal
• - Guest Network
• - Scheduled Network
• - IoT Network
• - VPN Network
• - Maximum Self-Defined Network Rule :16
• Multiple Network
• VLAN
• Captive Portal for Free WiFi
• VPN WiFi
• WiFi Scheduling: One Time Access
• WiFi Scheduling: Weekly Schedule
• WiFi share: QR code, PDF file
• Bandwidth Limiter
• AP isolate
• DNS Server Connection

Security

• AiProtection
• VPN
• WPS
• Let's Encrypt
• DNS-over-TLS
• SSH
• Firewall
• - Maximum Firewall Keyword Filter :64
• - Maximum Firewall Network Service Filter :32
• - Maximum Firewall URL Filter : 64

AiProtection

• AiProtection Pro
• - Router Security Assessment
• - Malicious Site Blocking
• - Two-Way IPS
• - Infected Device Prevention and Blocking

VPN

• VPN Client L2PT
• VPN Client Open VPN
• VPN Client PPTP
• VPN Client WireGuard
• VPN Server IPSec
• VPN Server Open VPN
• VPN Server PPTP
• VPN Server WireGuard
• VPN Fusion
• Support Surfshark

Traffic Control

• Adaptive QoS
• - Bandwidth Monitor
• - Bandwidth Limiter
• - Real-time Traffic Monitor
• - Wired Traffic Monitor
• - Wireless Traffic Monitor
• Traffic Analyzer
• - Website History

WAN

• - PPPoE
• - PPTP
• - L2TP
• - IPSec
• Dual WAN
• 3G / 4G LTE Dongle
• 4G / 5G Auto Mobile Tethering
• Port Forwarding
• Port Triggering
• DMZ
• DDNS
• NAT Passthrough
• - PPTP Pass-Through
• - L2TP Pass-Through
• - IPSec Pass-Through

LAN

• DHCP Server
• IGMP Snooping
• IPTV
• VLAN

Wireless

• MU-MIMO
• UTF-8 SSID
• WiFi MAC Address Filter
• - Maximum MAC Filters : 64
• Wireless Scheduler

USB application

• 4G / 5G Auto Mobile Tethering
• Media Server
• Samba Server
• FTP Server
• Shared Folder Privileges

User Interface

• WEB: ASUSWRT
• APP: ASUS ExpertWiFi APP

Administration

• Configuration Backup and Restore
• Diagnosis Tools
• Feedback System
• System Log
• New Device Connect Notification
• Login Captcha
• Connection Diagnosis
• Auto Firmware Update
