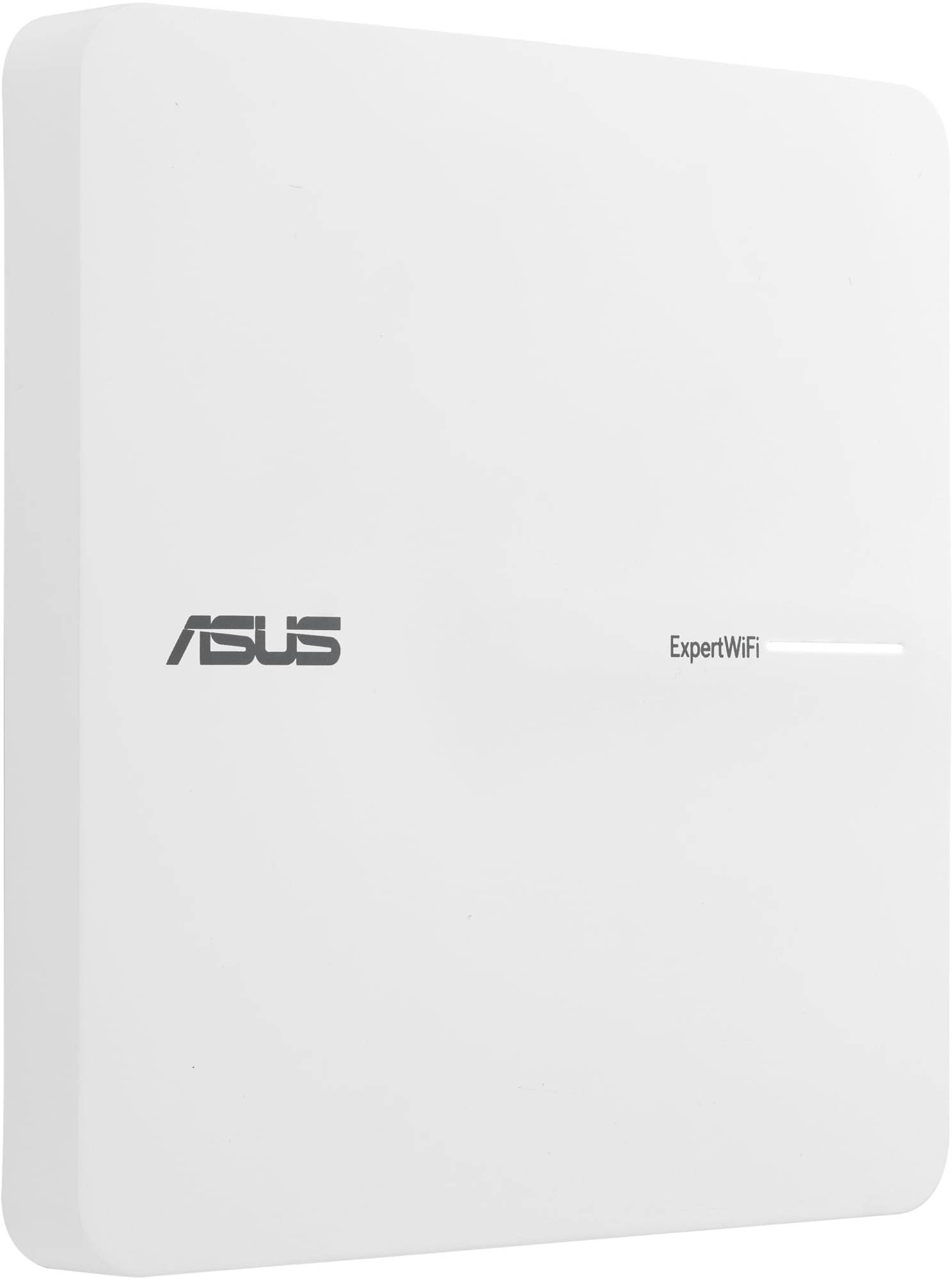

ASUS ExpertWiFi EBA63 AX3000 Dual-Band WiFi 6 PoE Access Point
R1 979
Pricing visible is already subject to a 2% discount applicable only to EFT payments.
In stock with SupplierShips in2 - 5 business days
From this brand
ASUS · 254 products
Overview
Overview
- ASUS ExpertWiFi EBA63 AX3000 Dual-Band WiFi 6 PoE Access Point
- AX3000 WiFi 6 Speeds Up To 2402 Mbps + 574 Mbps
- Supports Up To 100 Active Devices
- Supports Up To 5 SSIDs And VLAN
- Self-Defined Network Support For Guest, Employee, And Scheduled Networks
- PoE And PoE+ Support For Flexible Deployment
- Ceiling Mount And Wall Mount Support
- AiMesh Compatible For Expandable Business WiFi Coverage
- 1.7 GHz Quad-Core Processor With 512 MB RAM
- Internal Antenna x4 With 5GHz 2x2 And 2.4GHz 2x2 Configuration
- OFDMA, Beamforming, And 1024-QAM Technology
- ASUSWRT Web Interface And ASUS ExpertWiFi App Support
- Compliant With IEC 60601-1-2 Standards
- 3 Year Warranty
SPECIFICATIONS
- Brand
- ASUS
- Series
- Networking
- Model
- ExpertWiFi EBA63
- Network Standard
- IPv6
- IPv4
- WiFi 6 (802.11ax)
- WiFi 5 (802.11ac)
- WiFi 4 (802.11n)
- IEEE 802.11g
- IEEE 802.11b
- IEEE 802.11a
- Product Segment
- AX3000 ultimate AX performance: 2402 Mbps 574 Mbps
- Data Rate
- WiFi 6 (802.11ax) (5GHz): up to 2402 Mbps
- WiFi 6 (802.11ax) (2.4GHz): up to 574 Mbps
- WiFi 5 (802.11ac): up to 1734 Mbps
- WiFi 4 (802.11n): up to 300 Mbps
- 802.11g: up to 54 Mbps
- 802.11b: up to 11 Mbps
- 802.11a: up to 54 Mbps
- Antenna
- Internal Antenna x 4
- Transmit / Receive
- 5GHz 2x2
- 2.4GHz 2x2
- Processor
- 1.7 GHz Quad-Core Processor
- Memory
- 256 MB Flash
- 512 MB RAM
- Boosts Speed
- OFDMA (Orthogonal Frequency Division Multiple Access)
- Beamforming: Standard-Based And Universal
- 1024-QAM High Data Rate
- 20/40/80/160 MHz Bandwidth
- The 160MHz bandwidth may be unavailable in the 5GHz band in some regions / countries due to regulatory restrictions
- Operating Frequency
- 5 GHz
- 2.4 GHz
- Operating Mode
- Access Point Mode
- AiMesh Node Mode
- I/O Ports
- 10/100/1000 Gigabit Ethernet Port (Support PoE) x 1
- Buttons
- Reset Button
- LED Indicator
- Power x 2
- Power Supply
- 802.3af PoE
- 12 V with max. 1.5 A current DC (Power Adapter Included)
- Power Consumption
- US: 10.0W
- EU: 9.1W
- Mounting
- Ceiling Mount
- Wall Mount
- Package Content
- ExpertWiFi EBA63
- RJ-45 Cable
- Power Adapter
- Warranty Card
- Quick Start Guide
- Wall-Mount Kit
- Product Weight
- 426g
- Product Dimensions
- 160 x 160 x 42 mm
- AiMesh
- AiMesh
- AiMesh Node
- Device Access Control
- Time Scheduling
- Reward
- Customized Internet Schedule
- Maximum Device Access Control Profile: 12
- Maximum Device Access Control Content Filter Rule: 12
- Dashboard
- Dashboard
- Self-Defined Network
- Scheduled Network
- Guest Network
- Employee
- Maximum Self-Defined Network Rule: 16
- AP Isolate
- WiFi Share: QR Code
- PDF File
- WiFi Scheduling: Weekly Schedule
- WiFi Scheduling: One Time Access
- VLAN
- Security
- WPA/WPA2/WPA3-Personal
- WPA/WPA2-Enterprise
- WPS
- SSH
- Traffic Control
- Real-Time Traffic Monitor
- Wired Traffic Monitor
- Wireless Traffic Monitor
- Wireless
- UTF-8 SSID
- WiFi MAC Address Filter
- Maximum MAC Filters: 64
- Wireless Scheduler
- User Interface
- WEB: ASUSWRT
- APP: ASUS ExpertWiFi APP
- Administration
- Configuration Backup And Restore
- Diagnosis Tools
- Feedback System
- System Log
- New Device Connect Notification
- Login Captcha
- Connection Diagnosis
- Auto Firmware Update
